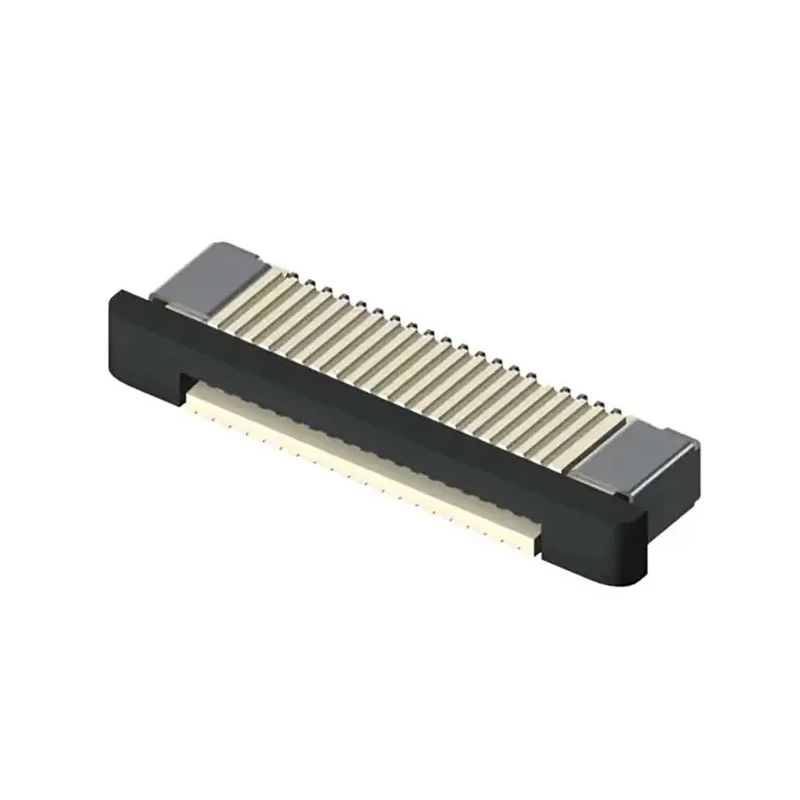

Samtec ZF1 0.5 mm Pitch 30 Way Horizontal Female Edge Connector, Solder Termination ZF5S-30-02-T-WT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 195V |
| Brand | Samtec |
| Orientation | Horizontal |
| Current | 1.8A |
| Model | ZF5S-30-02-T-WT |
| Mount Type | Surface |
| Housing Material | Natural LCP |
| Contact Material | Phosphor Bronze |
| Series | ZF1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.5mm |
| Contact Plating | Matt Tin |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Offers 30 contacts made of phosphor bronze for reliable conductivity.
- Designed with 0.5 mm pitch for precise connection spacing.
- Zero insertion force (ZIF) horizontal orientation ensures easy mating and removal.
- Surface mount type with solder termination suitable for PCB applications.
- Operates reliably from -55 °C to 105 °C temperature range.
- Supports a current rating of 1.8 A per contact for robust electrical performance.
- Housing constructed from natural liquid crystal polymer (LCP) providing durability and stability.
- Contacts plated with matte tin to resist corrosion and ensure longevity.
Product Description
Samtec ZF5S-30-02-T-WT is a high-precision FPC edge connector featuring 30 female contacts with a 0.5 mm pitch to ensure accurate and compact connections in electronic assemblies. This horizontal orientation connector utilizes zero insertion force (ZIF) technology to minimize mechanical stress during mating, enhancing durability of both connector and cable. Its surface mount solder termination design makes it ideal for PCB applications requiring fine pitch connectors.
The contacts are manufactured from phosphor bronze for excellent electrical conductivity and mechanical resilience, and are plated with matte tin to prevent oxidation. Encased in a natural liquid crystal polymer housing, this product is engineered to withstand harsh operating temperatures ranging from -55 °C up to 105 °C, making it suitable for industrial, automotive, and telecommunications environments.
This connector supports a current capacity of 1.8 amperes per pin, accommodating power requirements in compact electronic systems. Its 30-way contact configuration is optimized for flexible printed circuit (FPC) cables, facilitating reliable signal and power transmission in constrained spaces.
Ideal for use in industrial electronics, telecommunications, automotive electronics, consumer electronics manufacturing, and laboratory instrumentation. The Samtec ZF5S series continues to meet the demands of modern PCB design with enhanced mechanical and electrical performance.
Offers 30 contacts made of phosphor bronze for reliable conductivity. Designed with 0.5 mm pitch for precise connection spacing. Zero insertion force (ZIF) horizontal orientation ensures easy mating and removal. Surface mount type with solder termination suitable for PCB applications.
Operates reliably from -55 °C to 105 °C temperature range. Supports a current rating of 1.8 A per contact for robust electrical performance. Housing constructed from natural liquid crystal polymer (LCP) providing durability and stability.
Contacts plated with matte tin to resist corrosion and ensure longevity. Explore the comprehensive range of connectors at EnvMart for your electronics assembly needs.
Explore more products in our FPC Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 0.5 mm, designed for precise connection spacing in electronic assemblies.
This model features 30 female contacts, suitable for various applications in electronics.
It supports a current rating of 1.8 A per contact, providing robust electrical performance.
The housing is made from natural liquid crystal polymer (LCP), and the contacts are made of phosphor bronze plated with matte tin to resist corrosion.
It operates reliably within a temperature range of -55 °C to 105 °C, making it suitable for various environments.
This connector features a solder termination type, making it suitable for surface mount applications on PCBs.
The connector is designed with a horizontal orientation, utilizing zero insertion force (ZIF) technology for easy mating and removal.
It is ideal for use in industrial electronics, telecommunications, automotive electronics, consumer electronics manufacturing, and laboratory instrumentation.
The connector has a voltage rating of 195V, suitable for various electrical applications.
The contacts in this model are female, designed for compatibility with corresponding male connectors.
This connector is manufactured in India.
It belongs to the Samtec ZF1 series, which includes high-precision FPC edge connectors.
