| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.8mm |
| Length | 1.8mm |
| Model | BAT54J,115 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAT54J |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 320mV |
| onsemi 30 V 200 mA Diode Switching 2-Pin SOD-323Brand | onsemi |

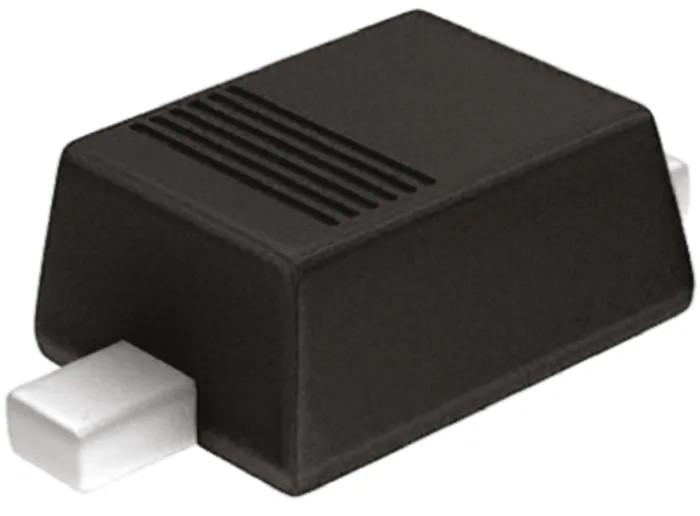

Nexperia BAT54J,115 is a Schottky diode designed for surface mount applications, housed in a small SOD-323 package with 2 pins. With a maximum continuous forward current rating of 200 mA and a peak reverse voltage of 30 V, it offers high efficiency and low forward voltage drop (320 mV), making it ideal for power-sensitive semiconductor circuits.
This diode operates effectively in temperature ranges from -65°C to 125°C, providing stable performance under varied industrial and electronic conditions. Its small form factor at 1.8 mm length, 1.35 mm width, and 0.8 mm height enables space-saving PCB layouts.
The BAT54J,115 series features low leakage current (peak reverse current 2 μA) and low capacitance characteristics that minimize power switching losses. It is optimized for applications requiring fast switching and high reliability, such as industrial electronics, telecommunications, power supply circuits, and consumer electronics.
Designed without any specific automotive certification, it remains a versatile component extensively used in laboratory, manufacturing, and commercial electronic assemblies. Surface mount type with a compact SOD-323 package.
Maximum continuous forward current of 200 mA for reliable circuit performance. Low forward voltage of 320 mV reduces power loss. Specialized Schottky rectifier type providing high efficiency and low leakage current. Wide operating temperature range from -65°C to 125°C.
Peak reverse repetitive voltage of 30 V ensures robustness against voltage spikes. Pin count of 2 supports simple diode configuration. Ultrasmall low-profile package measuring 1.8 mm length by 1.35 mm width and 0.8 mm height.
Package details are typical for surface mount electronics component assemblies sold in reels or tape formats, facilitating automated production. It is manufactured in China and supplied new.
