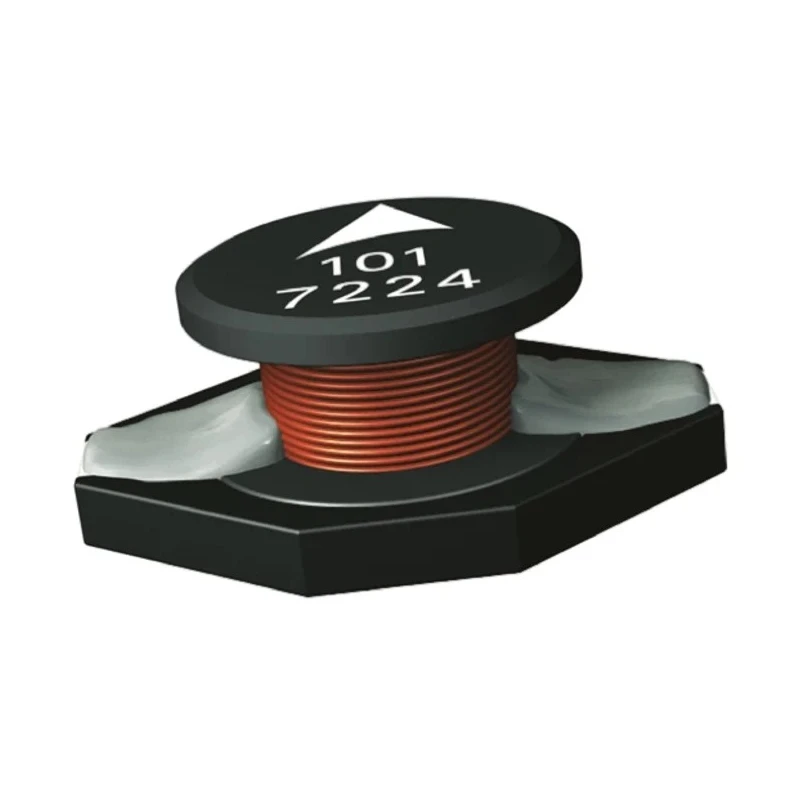

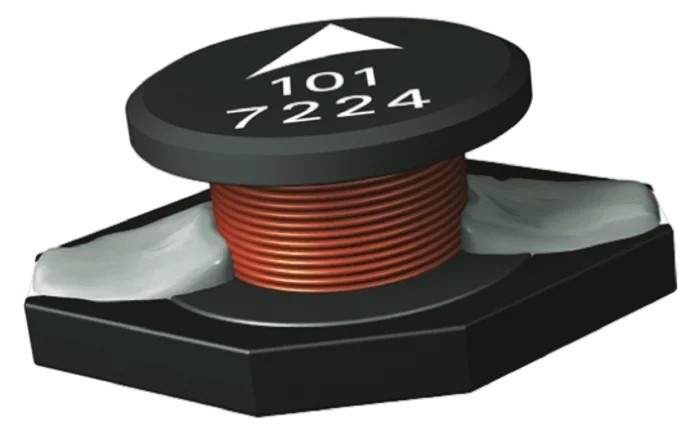

TDK Wirewound Surface Mount Inductor 22 μH ±20 % 2.7 A Idc Ferrite Core, 1104 Package B82476A1223M000
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 5.08mm |
| Length | 12.95mm |
| Model | B82476A1223M000 |
| Depth | 9.4mm |
| Packaging | Reel |
| Series | B82476A1 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 1104 |
| Maximum DC Current | 2.7A |
| Maximum DC Resistance | 50mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Pulse, P0751NL/52NL Wire-wound SMD Inductor 22 μH ±20% Wire-Wound 2.7A IdcBrand | Pulse |
Key Features
- The inductor has a tolerance of ±20 % for consistent electrical performance.
- Manufactured with a ferrite core for efficient magnetic properties.
- Compact 1104 package suitable for surface mount applications.
- Designed for operation from -55°C to 150°C, enabling reliability in harsh environments.
- Features low DC resistance of 50mΩ for minimal power loss.
- Utilizes enamel copper wire windings in a wirewound construction.
- Compatible with lead-free reflow soldering processes, compliant with JEDEC J-STD 020D.
- Ideal for filtering supply voltages, coupling/decoupling, DC/DC converters, automotive and industrial electronics.
Product Description
TDK B82476A1223M000 wirewound surface mount inductor offers 22 μH inductance with a tolerance of ±20 %. Its ferrite core construction combined with enamel copper wire windings provides low DC resistance of 50mΩ and supports a maximum DC current of 2.7 A, ensuring efficient power handling.
The compact 1104 package measures 12.95mm in length, 5.08mm in height, and 9.4mm in depth, optimized for surface mount technology applications. Designed for operation within a temperature range of -55°C to +150°C, this inductor guarantees performance under demanding automotive and industrial conditions. The device is RoHS compliant and does not include shielding or molding, maintaining its standard conversion qualifications.
Part of the B82476A1 series, this inductor is suitable for filtering supply voltages, coupling and decoupling signals, and DC/DC converter circuits. It meets the stringent requirements for automotive electronics, industrial and consumer electronics applications. The product supports lead-free reflow soldering as referenced in JEDEC J-STD 020D standards.
The inductor is supplied on a reel for ease of manufacturing and assembly, facilitating efficient production workflows. Its wirewound construction with a ferrite core offers a robust solution for power inductance demands in compact electronic designs.
The inductor has a tolerance of ±20 % for consistent electrical performance. Manufactured with a ferrite core for efficient magnetic properties. Compact 1104 package suitable for surface mount applications. Designed for operation from -55°C to 150°C, enabling reliability in harsh environments.
Features low DC resistance of 50mΩ for minimal power loss. Utilizes enamel copper wire windings in a wirewound construction. Compatible with lead-free reflow soldering processes, compliant with JEDEC J-STD 020D. Ideal for filtering supply voltages, coupling/decoupling, DC/DC converters, automotive and industrial electronics.
This TDK B82476A1223M000 Surface Mount Inductor is part of EnvMart's Electronics Components category. Browse related inductor and passive component products for your industrial and electronic system design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 22 μH with a tolerance of ±20 %.
It supports a maximum DC current of 2.7 A.
The dimensions are 12.95 mm in length, 5.08 mm in height, and 9.4 mm in depth.
The inductor features a low DC resistance of 50 mΩ.
It is designed to operate within a temperature range of -55°C to +150°C.
It utilizes a wirewound construction with enamel copper wire windings.
Yes, it is RoHS compliant and supports lead-free reflow soldering as per JEDEC J-STD 020D standards.
The inductor is supplied on a reel for ease of manufacturing and assembly.
The core material is ferrite, which provides efficient magnetic properties.
It is ideal for filtering supply voltages, coupling/decoupling signals, and DC/DC converter circuits.
This inductor is part of the B82476A1 series.
The termination style is surface mount, making it suitable for surface mount technology applications.
