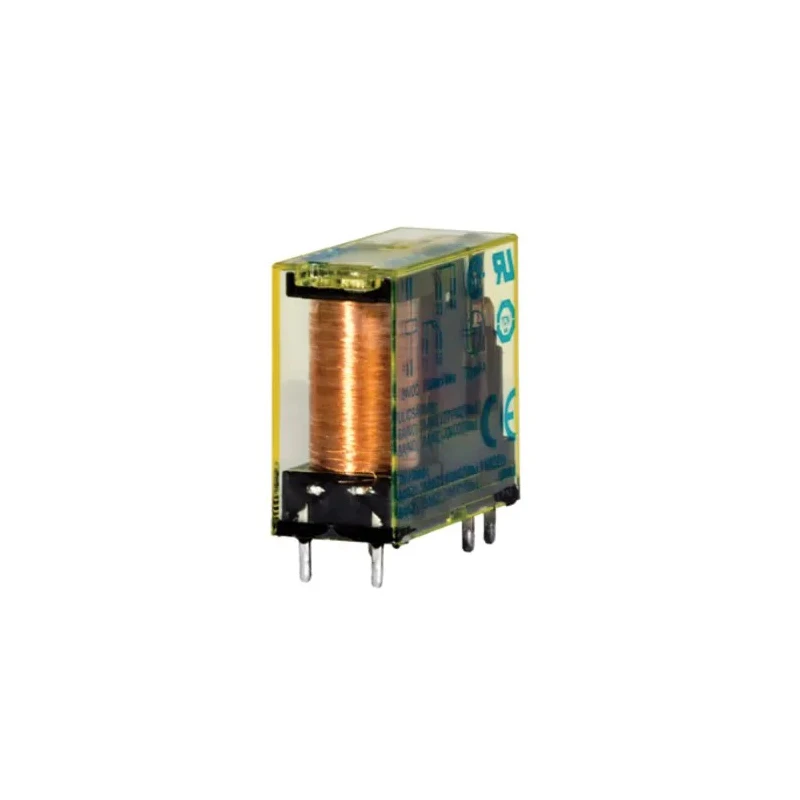

Idec PCB Force Guided Relay 24V DC Coil 0.7W Power 29A Switching Current SPST Contact RF2 Series RF2V-1A1B-D24
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Height | 25.4mm |
| Length | 28mm |
| Model | RF2V-1A1B-D24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy Gold Plated |
| Series | RF2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 29A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 820Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.7W |
Key Features
- Operates with a 24V DC coil voltage consuming 0.7 watts of power.
- Capable of switching currents up to 29 amperes with SPST contacts.
- Designed for PCB mounting using PCB pin terminals for reliable installation.
- Silver alloy gold-plated contacts ensure low resistance and durable operation.
- Supports DC voltage switching up to 125V and AC voltage switching up to 250V.
- Wide operating temperature range from -40°C to 85°C for versatile industrial applications.
- Complies with RoHS standards, ensuring environmentally safe construction.
- Contact resistance rated at 100 milliohms to maintain efficient electrical performance.
Product Description
Idec RF2V-1A1B-D24 PCB Force Guided Relay offers a reliable solution for safety circuit construction with a 24V DC coil operating at 0.7 watts power. The relay features a Single Pole Single Throw (SPST) contact configuration, capable of switching currents up to 29 amperes.
This relay is designed for PCB mounting using PCB pin terminals and is part of the RF2 series, providing reduced installation footprint and cost savings. Its silver alloy gold-plated contacts reduce contact resistance to 100 milliohms, enhancing electrical reliability. The relay supports switching of DC voltages up to 125V and AC voltages up to 250V, suitable for various industrial and control applications.
Operating temperature ranges from -40°C to 85°C, allowing use in harsh environmental conditions. The compact size with dimensions 28mm length, 12.7mm width, and 25.4mm height enables integration into dense control panels. Coil resistance of 820 ohms ensures efficient coil power consumption. The product complies with RoHS environmental standards and is manufactured in Japan to stringent quality measures.
This Idec force guided relay is ideal for applications in industrial automation, electrical control panels, signal conditioning, and safety circuits within manufacturing, HVAC, and instrumentation systems. Its robust design and reliable contact materials provide excellent performance in demanding electrical environments.
Operates with a 24V DC coil voltage consuming 0.7 watts of power. Capable of switching currents up to 29 amperes with SPST contacts. Designed for PCB mounting using PCB pin terminals for reliable installation. Silver alloy gold-plated contacts ensure low resistance and durable operation.
Supports DC voltage switching up to 125V and AC voltage switching up to 250V. Wide operating temperature range from -40°C to 85°C for versatile industrial applications. Compact dimensions: length 28mm, width 12.7mm, height 25.4mm to minimize installation space.
Complies with RoHS standards, ensuring environmentally safe construction. Contact resistance rated at 100 milliohms to maintain efficient electrical performance. Coil resistance is specified at 820 ohms, optimized for efficient coil operation.
Manufactured in Japan, assuring high-quality production standards. Explore EnvMart's full range of Power Relays and Idec products for reliable industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay is capable of switching currents up to 29 amperes with SPST contacts.
It operates with a 24V DC coil voltage and consumes 0.7 watts of power.
The relay has a length of 28mm, a width of 12.7mm, and a height of 25.4mm.
It features silver alloy gold-plated contacts, which help reduce contact resistance.
The relay operates within a temperature range of -40°C to 85°C.
It supports switching of DC voltages up to 125V and AC voltages up to 250V.
This model is designed for PCB mounting using PCB pin terminals for reliable installation.
The contact resistance is rated at 100 milliohms, ensuring efficient electrical performance.
Yes, it complies with RoHS standards, ensuring environmentally safe construction.
The coil resistance is specified at 820 ohms, optimized for efficient coil operation.
This relay is manufactured in Japan.
It is suitable for industrial automation, electrical control panels, signal conditioning, and safety circuits.
