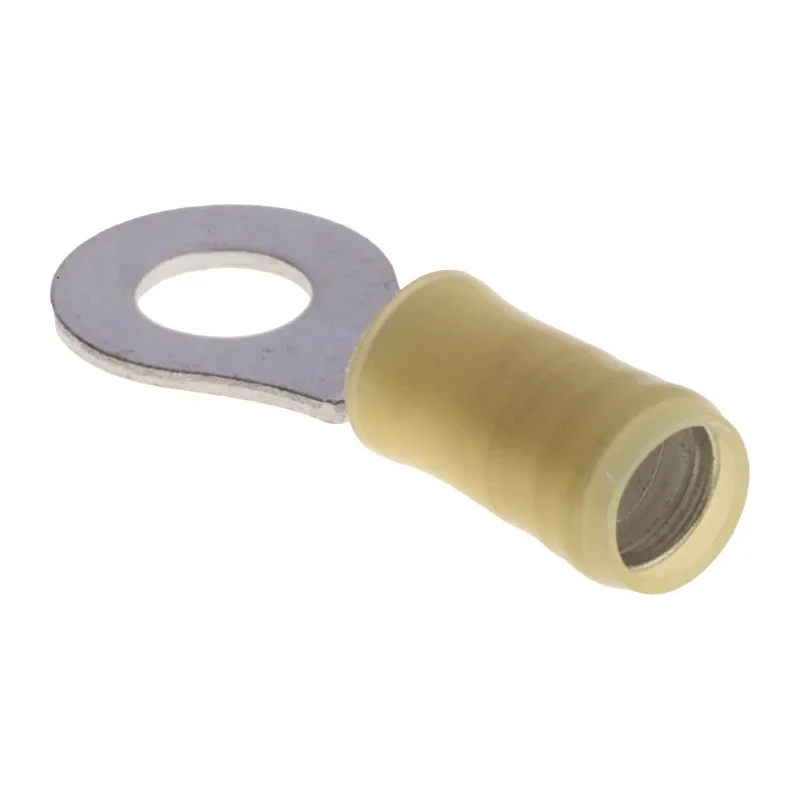

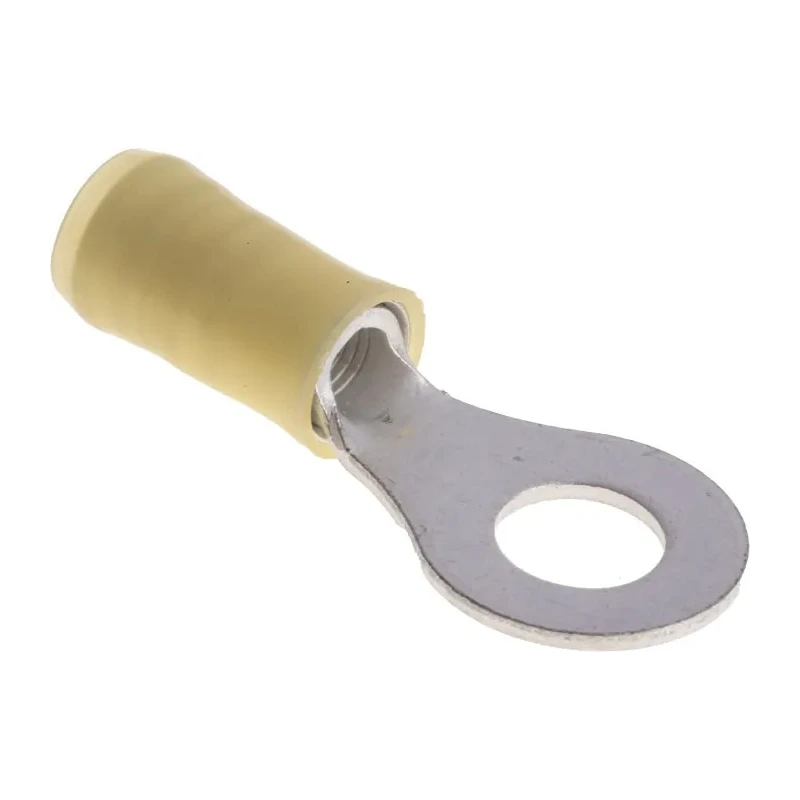

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 12 AWG 10 AWG Wire Size Yellow 320569
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| Model | 320569 |
| Insulation | Insulated |
| Overall Length | 33.57mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 13.49mm |
| Inner Ring Diameter | 6.35mm |
| Stud Size | M6 |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Nylon insulation sleeve for wire size identification and insulation support.
- Designed with serrated wire barrel for strong contact and tensile strength.
- Compatible with M6 stud size for secure mounting.
- Suitable for wire sizes from 12 AWG (2.6mm²) to 10 AWG (6.6mm²).
- Maximum operating temperature of 105°C ensures durability in various environments.
- Color-coded yellow sleeve allows easy identification and tooling.
- Designed for uniform and reliable crimps in industrial applications.
Product Description
TE Connectivity 320569 PIDG Insulated Ring Terminal is designed for high reliability and electrical conductivity in industrial electronic applications. This insulated ring terminal features a precision-formed copper body and barrel, providing excellent conductivity and durability.
The barrel contains serrations which ensure maximum contact and tensile strength upon crimping. Enhanced wire insulation support is provided by a copper sleeve, preventing wire fraying during installation. The yellow nylon insulation sleeve facilitates quick wire size identification and prevents strand turn-back during fast wire insertion, improving production efficiency.
This ring terminal accommodates wire sizes ranging from 12 AWG (2.6 mm²) up to 10 AWG (6.6 mm²) and fits securely on M6 studs. Its maximum operating temperature rating of 105°C makes it suitable for demanding electrical environments.
Applications span a broad range of industries including instrumentation, control systems, lighting, power supplies, panel box wiring, transportation, lifting equipment, motors, aerospace, and various electrical appliances. These terminals meet or exceed the stringent MIL-T-7928, Type II, Class 1 and 2 requirements, ensuring consistent performance and safety.
High conductivity copper body ensures optimal electrical flow. Copper sleeve enhances wire insulation protection and prevents fraying. Serrations inside barrel provide strong, reliable crimp connections. Nylon insulation sleeve aids wire size identification and tooling compatibility.
Funnelled wire entry facilitates easy and fast wire insertion. Suitable for wire sizes 12 AWG to 10 AWG, supporting versatile wiring needs. Rated for maximum temperature of 105°C to withstand harsh conditions. Complies with industry standards for robust and uniform crimps.
This insulated Ring Terminal is ideal for industrial, commercial, and manufacturing wiring tasks where high performance and reliability are critical. Its robust construction and thoughtful design optimize electrical connections in a variety of applications.
Explore our full category of Wire Terminals & Splices to find compatible connectors and wiring accessories for your projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal accommodates wire sizes ranging from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²).
The maximum operating temperature rating of this terminal is 105°C, making it suitable for various demanding electrical environments.
It features a high conductivity copper body and barrel, with a nylon insulation sleeve for wire size identification and insulation support.
This terminal is designed to fit securely on M6 stud sizes.
The terminal has serrations inside the barrel that provide strong contact and tensile strength upon crimping, ensuring optimal electrical flow.
The insulation sleeve of this terminal is color-coded yellow, which aids in quick wire size identification.
The overall length of this terminal is 33.57 mm.
The inner ring diameter is 6.35 mm, and the outer ring diameter is 13.49 mm.
It is suitable for a broad range of applications including instrumentation, control systems, lighting, power supplies, and motors.
This terminal meets or exceeds the stringent MIL-T-7928, Type II, Class 1 and 2 requirements, ensuring consistent performance and safety.
The terminal includes a copper sleeve that enhances wire insulation protection and prevents fraying during installation.
The contact plating material for this terminal is tin, which enhances conductivity and corrosion resistance.
