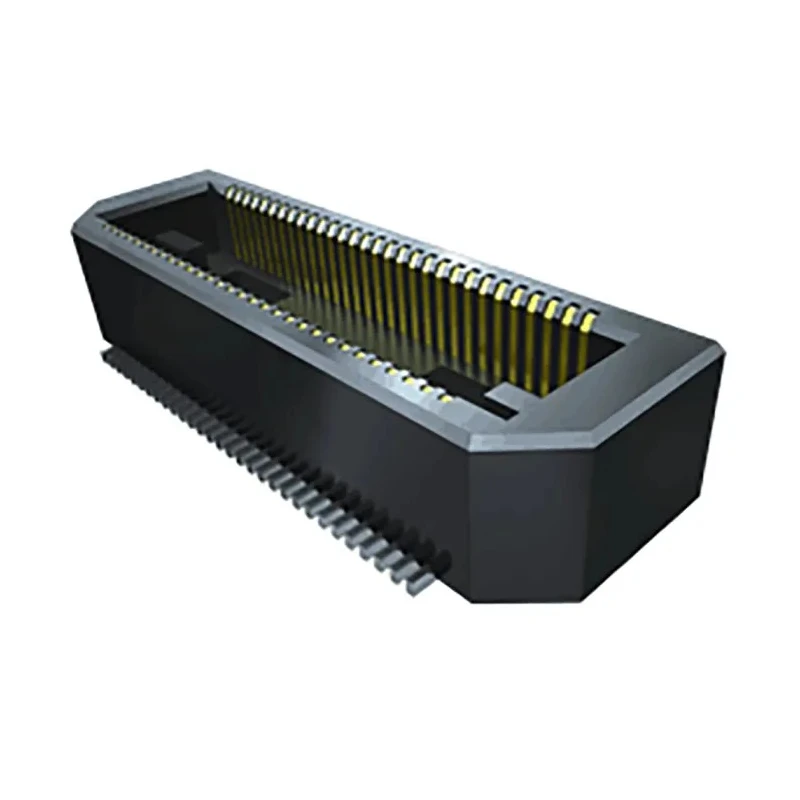

Samtec BTH Series Straight Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded BTH-030-01-F-D-A

Samtec BTH-030-01-F-D-A is a precision-engineered PCB header from the BTH Series, designed for demanding electronic applications requiring compact, high-density board-to-board connections. This 60-contact, 2-row header features a 0.5 mm pitch with a shrouded, straight orientation that ensures robust mechanical support and signal integrity.

The housing is constructed from Liquid Crystal Polymer, offering excellent temperature stability and mechanical strength, suitable for industrial, laboratory, and commercial electronic assembly environments. The phosphor bronze contacts plated with gold provide superior conductivity and corrosion resistance which is critical for long-lasting terminations in challenging conditions.

This surface mount type connector operates efficiently within a temperature range from -55°C to 125°C, supporting currents up to 2A and voltages up to 175V. The connector system is board-to-board with male contact gender and is terminated by solder, ensuring high reliability.

Additional design features include six standard positions that support up to 300 I/O pins, an Extended Life Product™ (E.L.P.™) rating for enhanced durability, and a standard alignment pin feature to aid in precise PCB placement. The stack height is 5.0 mm (.197"), making it ideal for compact electronic circuits requiring multi-level board stacking.

This product is widely used in industrial electronics, communications, computing equipment manufacturing, and other applications necessitating dependable, high-density interconnects.

Package contents include one PCB header as described. Optional tape and reel packaging are available for automated assembly lines. This PCB header supports a current of 2A. Housing is made from durable Liquid Crystal Polymer for high reliability.

Contacts are phosphor bronze with gold plating for excellent conductivity and corrosion resistance. Designed for surface mount board-to-board connector systems with male contact gender. Operating temperature ranges from -55°C to 125°C for versatile industrial use.

Features a 0.5 mm row pitch and stack height of 5.0 mm for compact PCB designs. Termination is via solder to ensure secure and stable connections. Ideal for electronic components requiring high-density, reliable interconnections.
