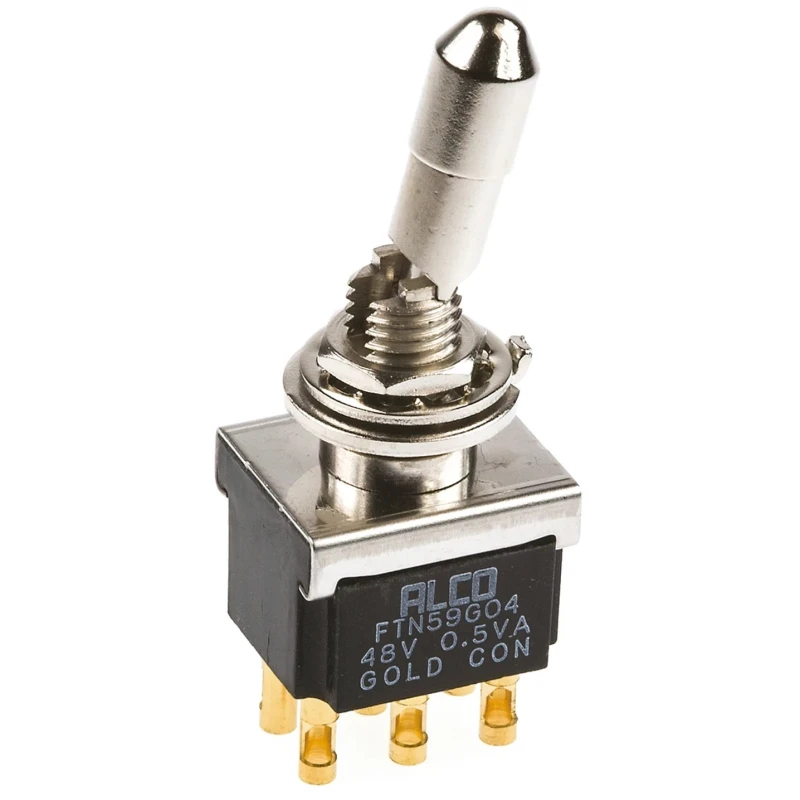

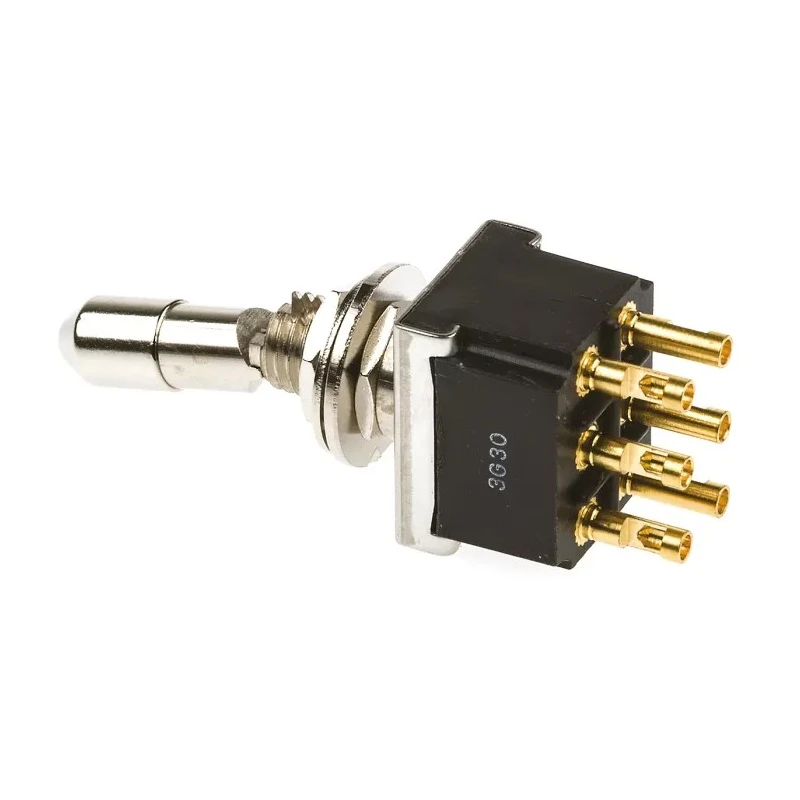

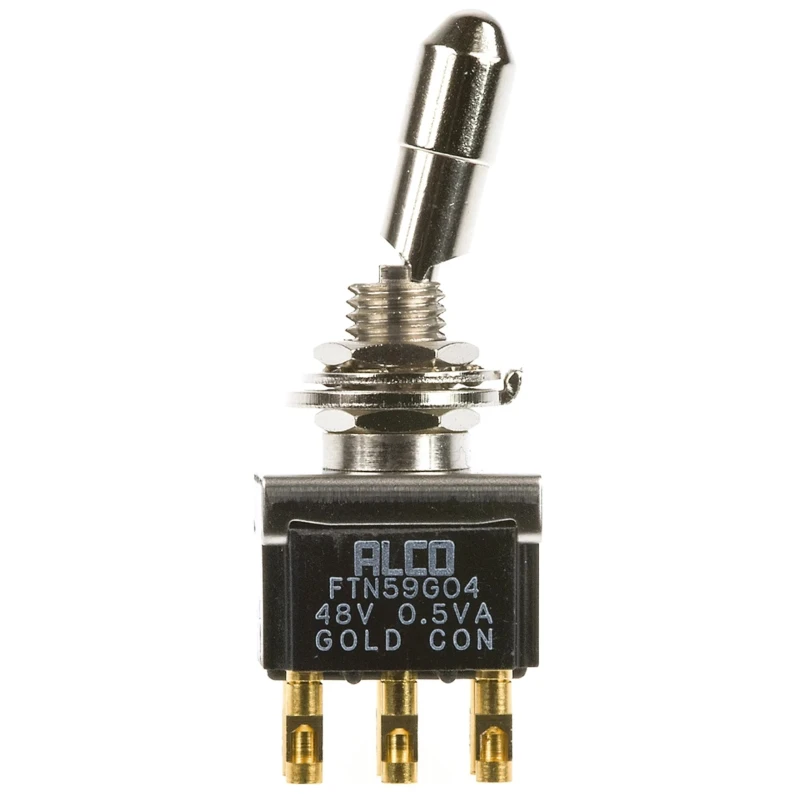

TE Connectivity Panel Mount Toggle Switch DPDT On-On 20V DC 20V AC Brass Actuator FTN59G04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | FTN59G04 |
| Mount Type | Panel |
| Series | FTN |
| Maximum Operating Temperature | +80°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 6.2 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94V-0, RoHS, CSA |
| Switch Operation | On-On |
| Actuator Length | 10.5mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Cycles |
| Contact AC Voltage | 20V ac |
| Actuator Material | Brass |
| APEM Toggle Switch, Panel Mount, On-On, DPDT, Solder TerminalBrand | Apem |
| Gold contacts | Stock nos: 317-572 & 317-588 |
| Silver contacts | Stock no: 317-601 |
Key Features
- The toggle switch features a double pole, double throw (DPDT) contact configuration for versatile circuit control.
- It supports switch contact current rating of 400mA, suitable for low-current applications.

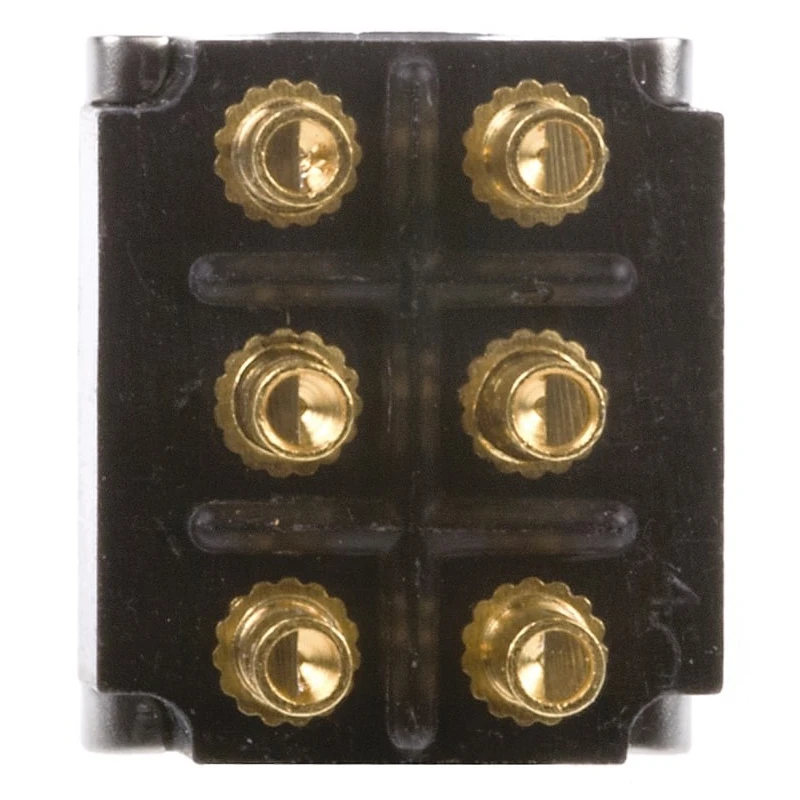

- The solder terminal type facilitates secure PCB or wiring connections.
- Panel cutout size is 6.2 mm with actuator length of 10.5 mm for compact installation.
- Built with a brass actuator, the switch ensures robust mechanical operation and durability.
- Operating temperature range spans from -20°C up to +80°C, enabling reliable performance in varied environments.
- The switch body is constructed from glass filled polyester for electrical insulation and mechanical strength.
- It complies with UL 94V-0, RoHS, and CSA standards ensuring safety and environmental requirements.
Product Description
TE Connectivity FTN59G04 toggle switch is a high-quality panel mount component designed for electrical and automation applications requiring DPDT On-On switching. Rated for 20V DC and 20V AC, this toggle switch is engineered for reliable circuit control with a contact current of 400mA. The solder terminal type allows for convenient and secure wiring or PCB mounting.
The actuation mechanism uses a brass material for durability and a precise 10.5 mm actuator length. The panel cutout size of 6.2 mm helps facilitate neat integration into control panels. Glass filled polyester casing provides excellent mechanical strength with flame retardant properties complying with UL 94V-0, RoHS, and CSA certifications.
Suitable for industrial, commercial, and laboratory equipment, this switch operates efficiently across a wide temperature range from -20° to +80°C. Its mechanical longevity rated at 100,000 cycles ensures dependable continuous usage in demanding environments.

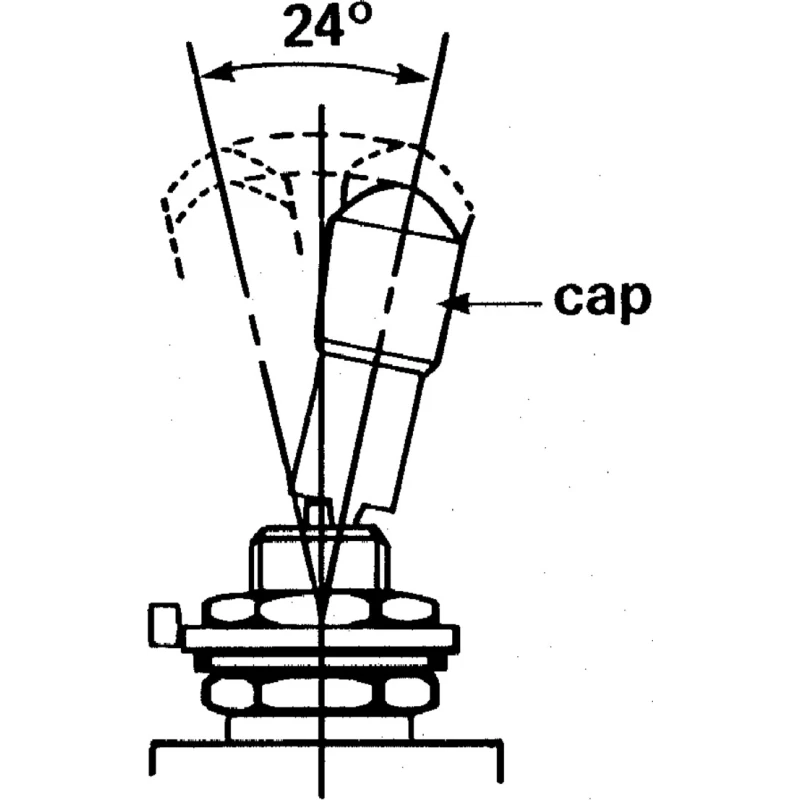

Additional features include optional gold contacts (stock nos: 317-572 & 317-588) or silver contacts (stock no: 317-601) for contact material customization based on application needs. The locking lever design prevents accidental switching by requiring a deliberate actuation force.
The DPDT On-On switch design allows control of two circuits simultaneously. Solder terminals ensure a sound electrical connection and ease of assembly. Compact actuator and panel cutout sizes enable versatile panel design.
Compliance with major safety and environmental standards ensures suitability for commercial use. Robust mechanical construction guarantees extended operational life. Wide temperature tolerance caters to diverse industrial and automation conditions.
Available contact material options provide flexibility for electrical requirements. Locking lever prevents unintended switching enhancing operational safety.
This toggle switch is ideal for applications in industrial control panels, automation systems, electronic devices, and any environment requiring reliable ON-ON switching. Browse more Toggle Switches and related electrical components at EnvMart to find compatible solutions for your project or maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a double pole, double throw (DPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this model is +80°C, making it suitable for various environments.
It has a switch contact current rating of 400mA, which is suitable for low-current applications.
This model uses solder terminals, facilitating secure connections for PCB or wiring.
The actuator length of this toggle switch is 10.5 mm, allowing for compact installation.
The required panel cutout size for this switch is 6.2 mm.
The actuator is made of brass, while the switch body is constructed from glass filled polyester for electrical insulation and mechanical strength.
It complies with UL 94V-0, RoHS, and CSA standards, ensuring safety and environmental requirements.
The mechanical life of this toggle switch is rated at 100,000 cycles, ensuring dependable usage.
The operating temperature range for this toggle switch spans from -20°C to +80°C.
Yes, there are options for gold contacts (stock nos: 317-572 & 317-588) and silver contacts (stock no: 317-601) for customization based on application needs.
This toggle switch is suitable for applications in industrial control panels, automation systems, and electronic devices requiring reliable ON-ON switching.
