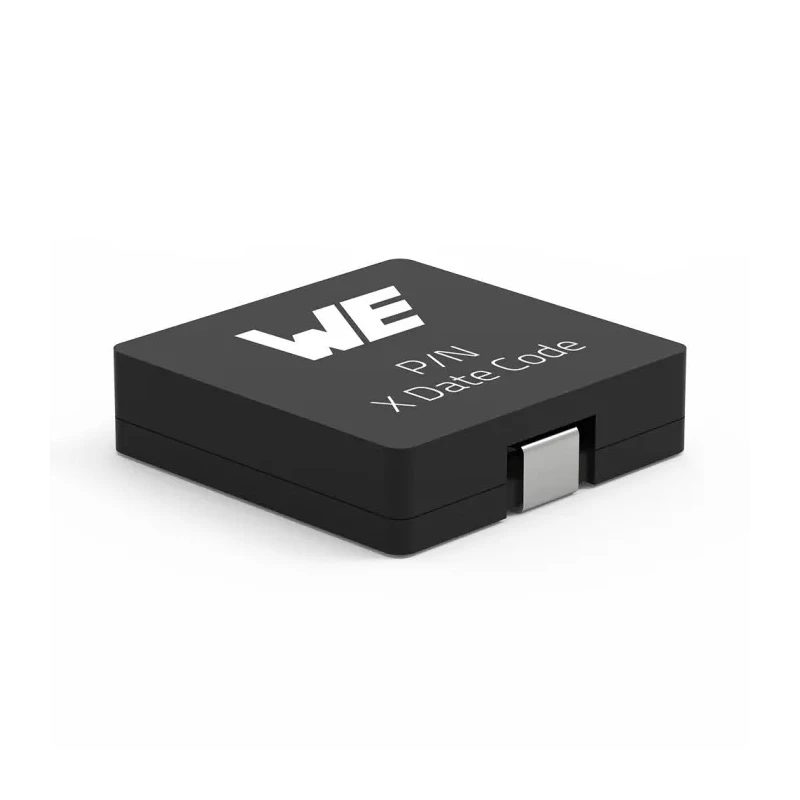

Wurth Elektronik WE-HCI 2212 Shielded Wirewound Surface Mount Inductor 33 μH Manganese Zinc Ferrite Core 74435583300
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 12mm |
| Length | 22.5mm |
| Depth | 22mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc Ferrite |
| Inductance | 33μH |
| Standards/Approvals | REACH, RoHS, IEC 61249-2-21, JEDEC JS709B |
| Package/Case | 2212 |
| Maximum DC Current | 11.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 13.2mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 6.8MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductor features a flat wire winding construction optimized for surface mounting.
- Provides a maximum DC current rating of 11.5 A with low DC resistance of 13.2 mΩ.
- Core material made of high-quality manganese zinc ferrite ensures magnetic shielding and performance.
- Operates reliably between -40°C and 125°C with ±20% inductance tolerance.
- Designed to meet automotive standard AEC-Q200 and complies with RoHS and REACH regulations.
- Packaged in tape & reel format with 2212 case size dimensions of 22.5 mm length, 12 mm height, and 22 mm depth.
- Maximum self-resonant frequency at 6.8 MHz suitable for switching regulators and DC-DC converters.
- Ideal for use in industrial computers, laptops, graphic cards, and motherboard power applications.
Product Description
Wurth Elektronik 74435583300 WE-HCI 2212 shielded wirewound surface mount inductor features a 33 μH inductance with a manganese zinc ferrite core. This flat wire winding inductor is designed for high-current applications and provides excellent magnetic shielding to reduce electromagnetic interference.
The component supports a maximum DC current of 11.5 A with a low DC resistance of 13.2 mΩ, ensuring efficient energy transfer and reduced power losses in circuits. It operates reliably within a wide temperature range from -40°C to 125°C with an inductance tolerance of ±20%.
Compliant with automotive standard AEC-Q200 and industry regulations including RoHS and REACH, this surface mount inductor is suitable for high-performance industrial and commercial electronics. The 2212 package size with dimensions 22.5 mm length, 12 mm height, and 22 mm depth ensures compatibility with compact designs.
Its flat wire winding and moulded construction provide durability and secure mounting with a surface mount termination style. The maximum self-resonant frequency is rated at 6.8 MHz, making it suitable for use in DC-DC converters, switching regulators, filters, and other power conditioning applications.
Applications include industrial computers, laptops, graphic cards, motherboards, and other advanced electronic assemblies where shielding and current handling are critical. Magnetically shielded design minimizes stray fields to protect sensitive components.
Flat wire winding construction optimizes space efficiency. High current capability with low DC resistance for thermal performance. Magnetically shielded to reduce interference and ensure stability. Wide temperature operating range for reliable use in harsh conditions.
Automotive grade AEC-Q200 standard compliance ensures quality and durability. Tape & reel packaging suitable for automated assembly lines. Compact 2212 package case dimensions facilitate compact PCB layouts. Meets multiple industry standards including RoHS, REACH, IEC 61249-2-21, and JEDEC JS709B.
Choose Wurth Elektronik WE-HCI 74435583300 for dependable, high-performance Surface Mount Inductors with advanced shielding for electronic, industrial, and automotive applications. Browse more electronic components and inductors in our extensive EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 33 μH.
It has a maximum DC current rating of 11.5 A.
The dimensions of the 2212 package are 22.5 mm in length, 12 mm in height, and 22 mm in depth.
The maximum self-resonant frequency is rated at 6.8 MHz.
It operates reliably between -40°C and 125°C.
The core material is made of manganese zinc ferrite, which provides magnetic shielding.
The DC resistance is 13.2 mΩ, ensuring efficient energy transfer.
Yes, it complies with automotive standard AEC-Q200 and meets RoHS and REACH regulations.
The termination style is surface mount, designed for compact PCB layouts.
It is suitable for use in industrial computers, laptops, graphic cards, and motherboard power applications.
It is packaged in tape & reel format, which is suitable for automated assembly lines.
The inductance tolerance is ±20%.
