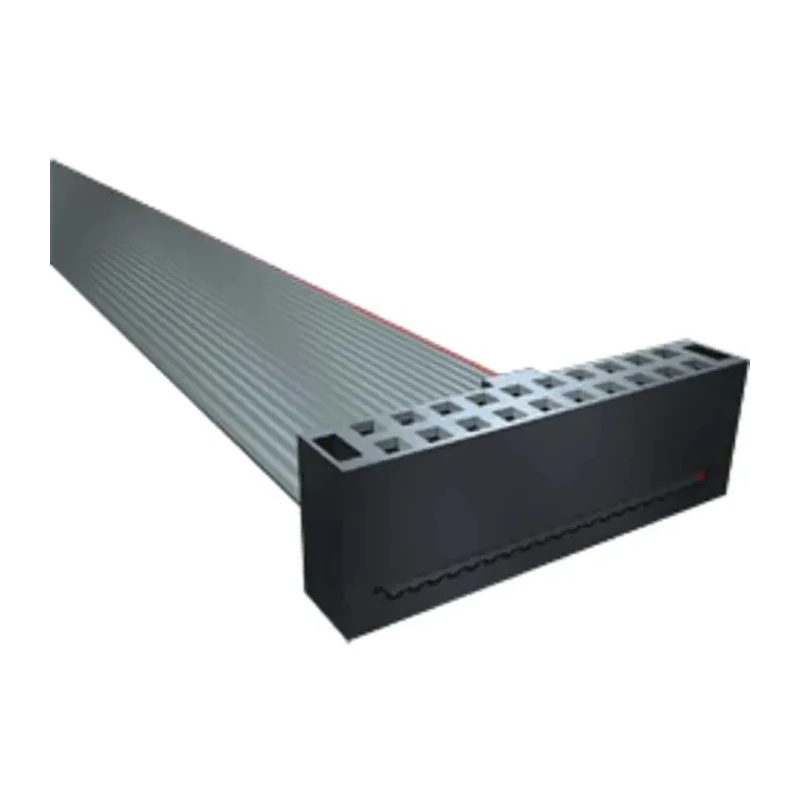

Samtec HCSD Series Straight Surface PCB Socket 13-Contact 2 Row 2.54 mm Pitch 600V HCSD-13-01-N

Free Delivery in India | Lowest Global Shipping Charges

Samtec HCSD Series Straight Surface PCB Socket 13-Contact 2 Row 2.54 mm Pitch 600V HCSD-13-01-N

Name: Samtec HCSD Series Straight Surface PCB Socket 13-Contact 2 Row 2.54 mm Pitch 600V HCSD-13-01-N
Brand: Samtec
SKU: 105303
Price: 7.14 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Samtec
Orientation	Straight
Current	3.2A
Model	HCSD-13-01-N
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	HCSD
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	IDC Socket
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Number of Contacts	13
Contact Gender	Female
Connector System	Board-to-Cable

Key Features

Designed for board-to-cable connections with 13 female contacts.
Constructed from phosphor bronze contact material for durability.
Housing made of black liquid crystal polymer providing insulation.
Supports a current rating of 3.2A at a voltage of 600V.
Surface mount type with a straight orientation for secure soldering.
Operates reliably between -40°C and 105°C temperature range.
RoHS compliant and lead-free solderable for environmental safety.
Connector system specifically designed as an IDC socket in the HCSD series.

Product Description

Samtec HCSD-13-01-N PCB Socket is a 13-contact, 2-row straight surface mount PCB socket designed for seamless board-to-cable connections in various electronic applications. Featuring a 2.54 mm pitch, it ensures precise alignment and reliable electrical contact performance.

The socket incorporates phosphor bronze contact material known for its excellent conductivity and mechanical strength. The black liquid crystal polymer housing offers robust insulation and thermal stability, allowing operation within a wide temperature range from -40°C to +105°C, suitable for demanding industrial and commercial electronic environments.

This IDC socket type follows the HCSD series standards, rated for 600V voltage and 3.2A current capacity. Its surface mount design allows efficient solder termination, providing durable mechanical and electrical connections on PCB assemblies. The straight orientation eases installation and maintenance.

Environmentally compliant, the product is RoHS certified and compatible with lead-free soldering processes, supporting sustainable manufacturing requirements.

Applications include industrial controls, telecommunications, computer hardware, and other electronic systems requiring reliable, high-density PCB connections. The socket facilitates effective signal and power transmission in compact electronic assemblies.

Designed for board-to-cable connections with 13 female contacts. Constructed from phosphor bronze contact material for durability. Housing made of black liquid crystal polymer providing insulation. Supports a current rating of 3.2A at a voltage of 600V.

Surface mount type with a straight orientation for secure soldering. Operates reliably between -40°C and 105°C temperature range. RoHS compliant and lead-free solderable for environmental safety. Connector system specifically designed as an IDC socket in the HCSD series.

Explore more Samtec products and similar high-quality PCB Sockets on EnvMart for your electronic component needs.
