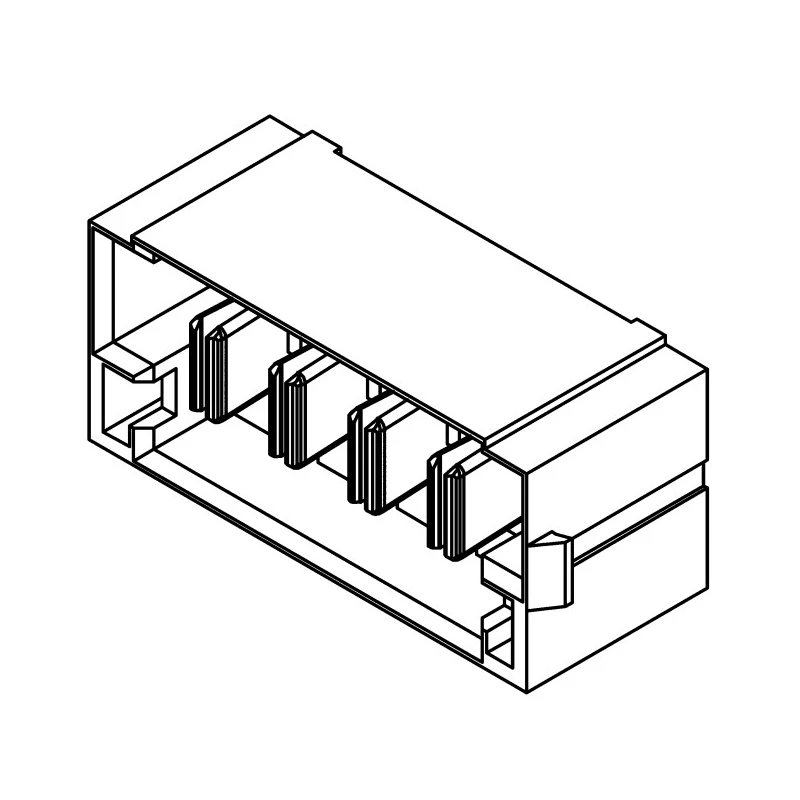

Samtec MPT Series 4 Contact Straight Through Hole Board-to-Board Shrouded PCB Header 5 mm Pitch MPT-04-6.30-01-L-V

Free Delivery in India | Lowest Global Shipping Charges

Samtec MPT Series 4 Contact Straight Through Hole Board-to-Board Shrouded PCB Header 5 mm Pitch MPT-04-6.30-01-L-V

Name: Samtec MPT Series 4 Contact Straight Through Hole Board-to-Board Shrouded PCB Header 5 mm Pitch MPT-04-6.30-01-L-V
Brand: Samtec
SKU: 105263
Price: 7.09 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	848V
Brand	Samtec
Orientation	Straight
Current	37.6A
Temperature range	-55 → 125 °C
Model	MPT-04-6.30-01-L-V
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	MPT
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	5mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board
Insulator Material	Black LCP
MPT-xx-6.30-01-L-V	Height 6.3 mm, Vertical
MPT-xx-01-01-L-RA-SD	Right Angle with Screw Down holes

Key Features

Constructed with a black Liquid Crystal Polymer housing for high durability.
Features gold-plated copper alloy contacts ensuring reliable conduction.
Operates efficiently within a temperature range of -55°C to 125°C.
Designed for 37.6A current and voltage rating of 848V.
Single row configuration with a vertical 6.3 mm stack height.
Suitable for solder termination on 1.6 mm thick PCBs.
Ideal for industrial electronic applications requiring robust power connections.
Shrouded design provides protection and improves mechanical stability.

Product Description

Samtec MPT-04-6.30-01-L-V is a high-quality PCB header from the MPT series designed as a straight through hole, board-to-board connector with 4 contacts and 5 mm pitch. It features a robust black Liquid Crystal Polymer housing that offers excellent mechanical strength and thermal stability for industrial environments.

The connector uses gold-plated copper alloy contacts to ensure low resistance and high reliability under demanding electrical loads up to 37.6A and voltage rating of 848V. Its solder-type termination is suited for PCB assembly on 1.6 mm thick boards. The single row design provides a vertical stack height of 6.3 mm making it compatible with standard mounting requirements.

Operating within a broad temperature range from -55°C to 125°C, this PCB header is suitable for harsh industrial and electronic applications including power connectors and signal interfaces in manufacturing, automotive electronics, and commercial equipment.

The shrouded construction protects contacts and helps maintain alignment during mating. It is designed to mate with the MPS series socket connectors for complete board-to-board connectivity solutions.

Housing made from high-performance black Liquid Crystal Polymer for durability. Contact material is copper alloy with 0.25 µm gold plating on contact area. Rated for 37.6A current and supports operating voltages up to 848V.

Temperature tolerance from -55°C to 125°C for wide environmental compatibility. Single row, 5 mm pitch with a vertical contact height of 6.3 mm. Through hole mount type with solder termination ensures secure PCB installation.

Shrouded design improves mechanical strength and contact protection.

This Samtec PCB Header series is widely used in industries requiring high-power, reliable board-level interconnections such as industrial automation, instrumentation, and telecommunications.
