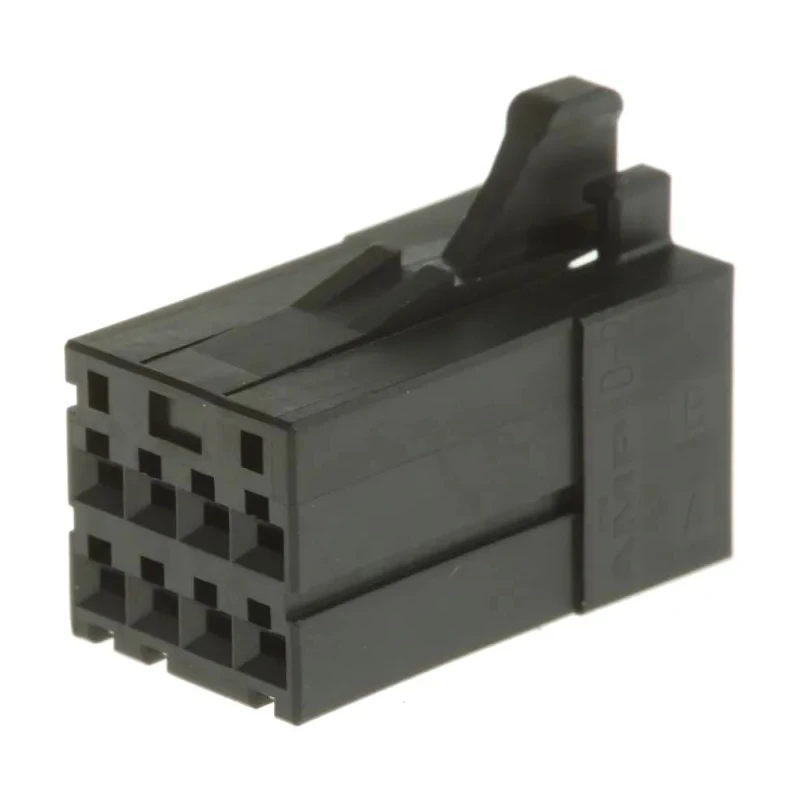

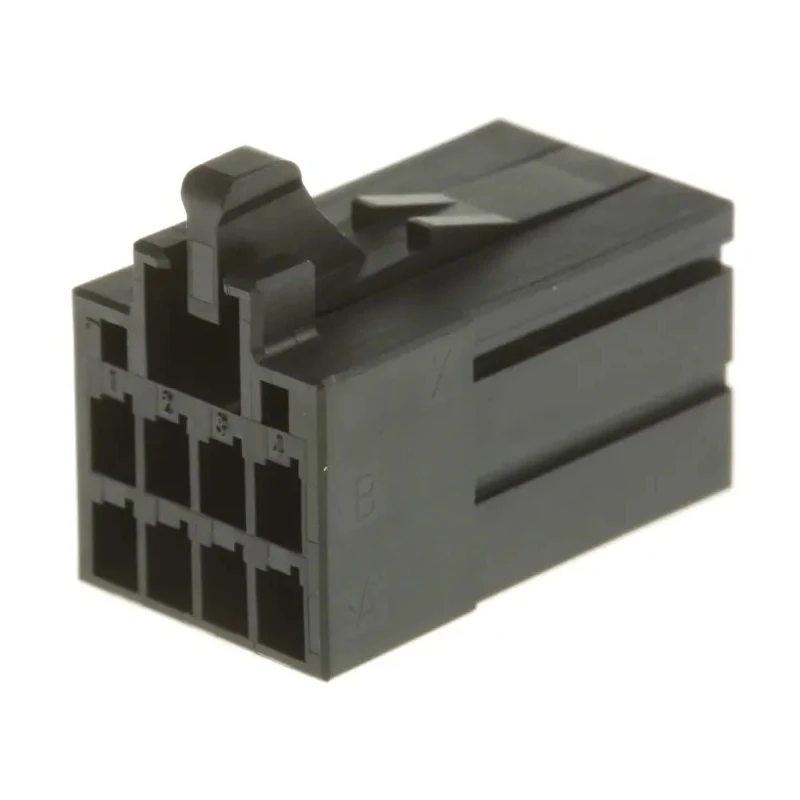

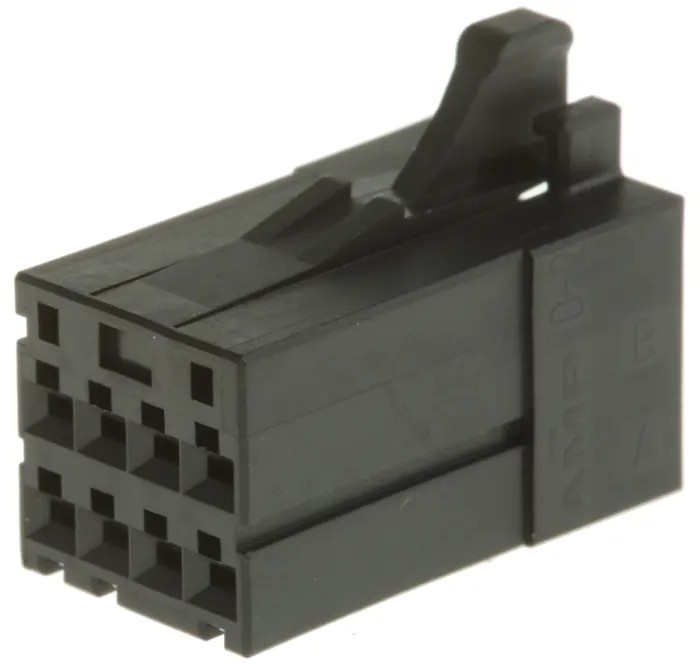

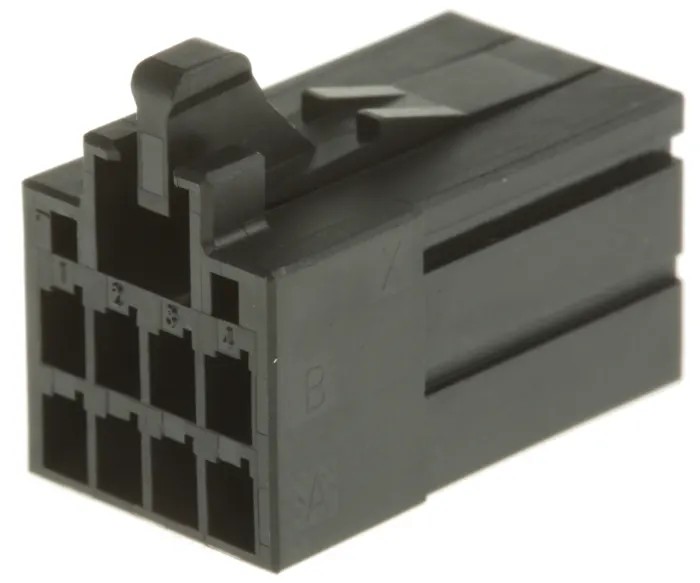

TE Connectivity Dynamic 2000 Female Connector Housing 2.5 mm Pitch 8 Way 2 Row Straight 1-1318119-4

TE Connectivity 1-1318119-4 Dynamic 2000 Series female connector housing features an 8 way, 2 row straight configuration with a 2.5 mm pitch designed for reliable wire-to-board applications. The compact, space-saving design allows high-density mounting on PCBs while ensuring robust connectivity in industrial and automotive environments.

This connector housing is made from high-quality Polyethylene Terephthalate, providing mechanical strength and durability under demanding conditions. It incorporates locking lances that securely retain contacts and prevent damage during mating processes, accompanied by an audible click for immediate mating confirmation.

Keying ribs are integrated into the design to prevent mismating, complemented by a centre locking latch that provides a secure, stable connection and further space-saving on the PCB. The visual fitting confirmation lines aid installers in ensuring correct mating during assembly.

Applications for this connector housing are extensive in automotive electronics including multimedia systems, display screens, airbag ECUs, switches, immobilizers, dashboards, and safety-related functions such as electrically controlled trunk lid latches and tyre pressure monitoring systems.

Designed for the Dynamic 2000 series, this 1-1318119-4 housing is compatible with associated crimp receptacle and tab contacts, which must be ordered separately. With its maximum voltage rating of up to 250 Vac and current rating of 5 A, it offers reliable signal performance in complex automotive wiring architectures.

Compact and space-saving design. Locking lances secure contacts effectively. Keying ribs prevent mismating and twisting. Centre locking latch provides positive mating assurance with audible click. Fitting confirmation line for visual mating assurance.

Durable housing material Polyethylene Terephthalate. Compatible with Dynamic 2000 series contacts (purchased separately). Suitable for automotive safety and multimedia applications. Precise dimensions: 11.4 mm length, 15.78 mm width.

TE Connectivity connectors are widely applied in industrial, automotive, manufacturing, and electronic assembly fields requiring secure, reliable connections. Browse and select from the comprehensive range of Connector Housings available at EnvMart to meet your project specifications.
