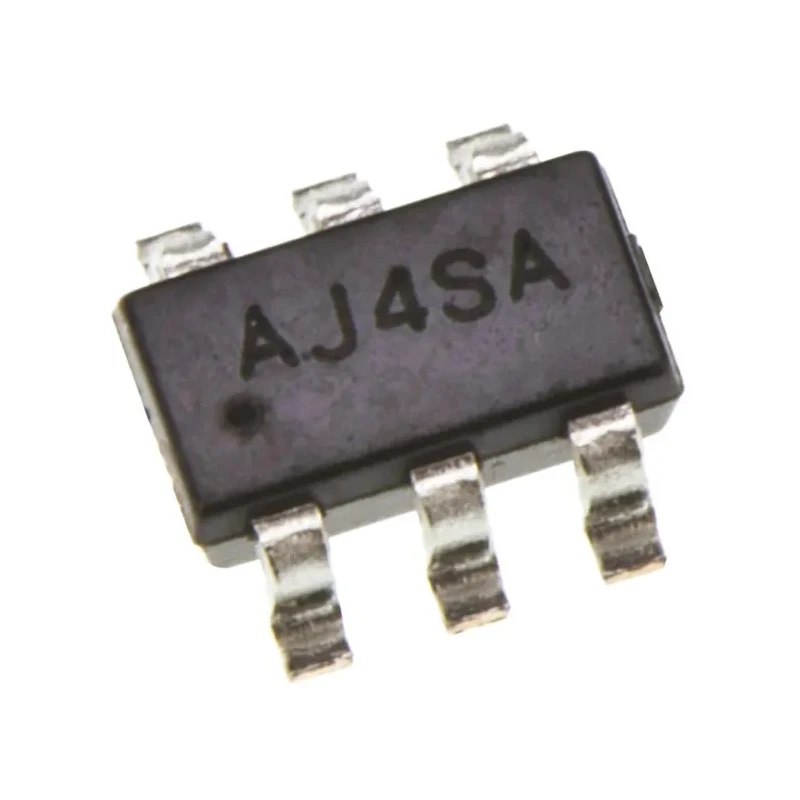

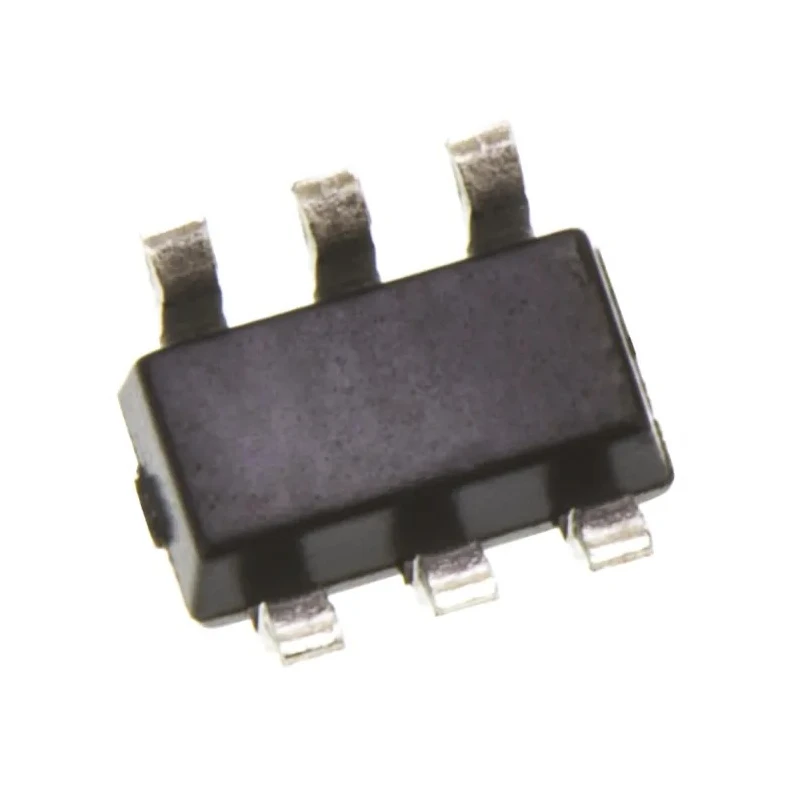

DiodesZetex Surface Mount DC/DC Converter 0.81V Output Voltage 1.2A Output Current AP5100WG-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Efficiency | 90% |
| Length | 3.1mm |
| Model | AP5100WG-7 |
| Depth | 1.3mm |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | AP5100 |
| Output Current | 1.2A |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-26 |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 24V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.75V |
| Number of Pins | 3 |
| Output Voltage 1 | 0.81V |
Key Features
- Features a compact SOT-26 package for surface mounting.
- Operates efficiently with up to 90% efficiency in power conversion.
- Designed for an input voltage range from 4.75V to a maximum of 24V.
- Suitable for operating temperatures between -25°C and 85°C.
- Includes 3 pins facilitating easy integration into PCB designs.
- Single output configuration delivering stable voltage.
- Meets RoHS compliance standards for environmental safety.
- Small form factor with dimensions 3.1mm length, 1.7mm width, and 1.3mm depth.
Product Description
DiodesZetex AP5100WG-7 is a surface mount DC/DC converter designed for step-down switching regulation applications. It provides a precise output voltage of 0.81V with a maximum output current of 1.2A, making it suitable for powering integrated circuits and other electronic components requiring low voltage and moderate current.
The converter supports input voltages ranging from 4.75V to 24V, allowing flexible application in diverse power supply systems. Its high efficiency of 90% helps reduce power losses and heat dissipation, ensuring reliable operation in compact electronic assemblies.
With a compact SOT-26 package measuring just 3.1mm by 1.7mm by 1.3mm, this device is space-saving and ideal for high-density PCB layouts. The unit operates reliably across a temperature range from -25°C to 85°C, providing robustness in demanding industrial, communication, and consumer electronics environments.
The single output configuration and 3-pin design simplify circuit integration. Furthermore, the converter complies with RoHS standards, affirming its environmental safety and suitability for global electronics manufacturing.
Industries such as industrial automation, instrumentation, and telecommunications benefit from incorporating this DC/DC converter for efficient power management and stable voltage supply. It is particularly useful in applications requiring compact, efficient, and reliable step-down conversion solutions on surface mount technology platforms.
Features a compact SOT-26 package for surface mounting. Operates efficiently with up to 90% efficiency in power conversion. Designed for an input voltage range from 4.75V to a maximum of 24V. Suitable for operating temperatures between -25°C and 85°C.
Includes 3 pins facilitating easy integration into PCB designs. Single output configuration delivering stable voltage. Meets RoHS compliance standards for environmental safety. Small form factor with dimensions 3.1mm length, 1.7mm width, and 1.3mm depth.
Explore the selection of DC/DC Converters available at EnvMart for various electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AP5100WG-7 provides a precise output voltage of 0.81V.
This model has a maximum output current of 1.2A.
The converter supports an input voltage range from 4.75V to 24V.
It operates with an efficiency of up to 90% in power conversion.
The dimensions of the AP5100WG-7 are 3.1mm in length, 1.7mm in width, and 1.3mm in depth.
It is suitable for operating temperatures between -25°C and 85°C.
This model includes 3 pins, facilitating easy integration into PCB designs.
The converter comes in a compact SOT-26 package for surface mounting.
Yes, it meets RoHS compliance standards for environmental safety.
The AP5100WG-7 has a single output configuration delivering stable voltage.
It is suitable for powering integrated circuits and other electronic components requiring low voltage and moderate current.
The AP5100WG-7 is manufactured in India.
