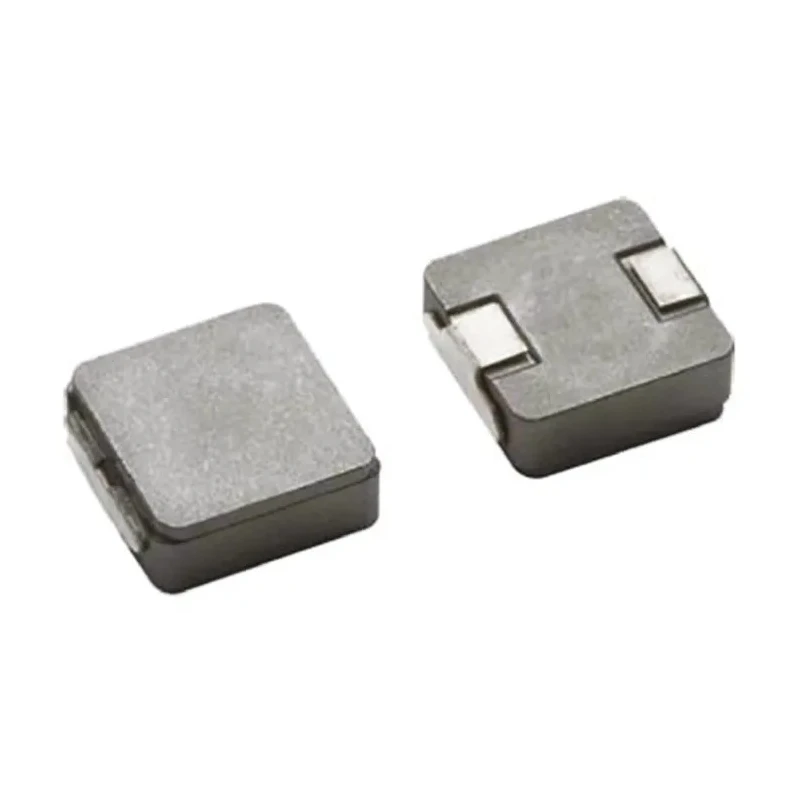

Vishay 4040 Shielded Surface Mount Inductor Metal Composite Core 33 μH ±20 % 4.4 A Idc IHLP4040DZER330M11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4mm |
| Length | 10.8mm |
| Model | IHLP4040DZER330M11 |
| Depth | 10.16mm |
| Series | IHLP-4040DZ-11 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 33μH |
| Standards/Approvals | IEC, JEDEC, RoHS |
| Package/Case | 4040 |
| Maximum DC Current | 4.4A |
| Maximum DC Resistance | 94.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 1MHz |
| Inductor Construction | Shielded |
Key Features
- Constructed with a metal composite core for high efficiency and durability.
- Features a shielded wire wound inductor construction to minimize electromagnetic interference.
- Designed for high transient current spikes without saturation.
- Supports a frequency range up to 1.0 MHz for versatile electronic applications.
- Operates reliably within a temperature range of -55°C to 125°C.
- Offers ultra-low DC resistance of 94.5 milliohms for minimal power loss.
- Compliant with IEC, JEDEC, and RoHS standards ensuring quality and environmental safety.
- Ideal for use in low profile, high current power supplies and DC/DC converters.
Product Description
Vishay IHLP4040DZER330M11 4040 Shielded Surface Mount Inductor with metal composite core provides reliable high current handling and low profile design suitable for modern electronic devices. This inductor features a 33 microhenry inductance with ±20 % tolerance, making it adaptable for precise power conditioning and filtering tasks.
Its shielded construction reduces electromagnetic interference, making it appropriate for sensitive applications in PDAs, notebooks, desktops, and server power supplies. The composite core material handles transient current spikes efficiently without saturation, ensuring robust performance under varying loads.
With a maximum DC current rating of 4.4 A and an ultra-low DC resistance of 94.5 milliohms, this component minimizes power losses and heat generation. The operating temperature spans from -55°C to 125°C, accommodating a broad range of environmental conditions.
The inductor supports frequencies up to 1 MHz, suitable for DC/DC converters and distributed power systems including FPGA power management. The compact 4040 package with dimensions: length 10.8 mm, depth 10.16 mm, and height 4 mm allows easy surface mounting on printed circuit boards. This product complies with IEC, JEDEC, and RoHS standards, underscoring its reliability and environmental compliance.
Constructed with metal composite core for improved performance. Shielded wire wound design for noise reduction. High current handling with low DC resistance. Wide frequency range up to 1 MHz. Reliable operation between -55°C and 125°C.
Compact 4040 surface mount package dimensions. Compliant with international safety and environmental standards. Ideal for power supplies and DC/DC converter circuits. Suitable for battery powered and distributed power systems.
Low profile design compatible with modern electronic devices.
This Vishay Surface Mount Inductor is engineered for industrial and commercial electronic applications requiring high current and low noise inductive components. Find more Vishay inductors and electronic components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 33 microhenries (μH) with a tolerance of ±20%.
The maximum DC current rating for this unit is 4.4 A.
It can operate at a maximum temperature of 125°C.
The minimum operating temperature for this inductor is -55°C.
This model has an ultra-low DC resistance of 94.5 milliohms (mΩ).
The inductor has dimensions of 10.8 mm in length, 10.16 mm in depth, and 4 mm in height.
It supports a maximum self-resonant frequency of up to 1 MHz.
The inductor is constructed with a metal composite core.
It complies with IEC, JEDEC, and RoHS standards, ensuring quality and environmental safety.
This model features a shielded wire wound inductor construction to minimize electromagnetic interference.
It is ideal for use in low profile, high current power supplies and DC/DC converters, as well as sensitive applications in electronic devices.
The termination style of this inductor is surface mount, allowing for easy integration into printed circuit boards.
