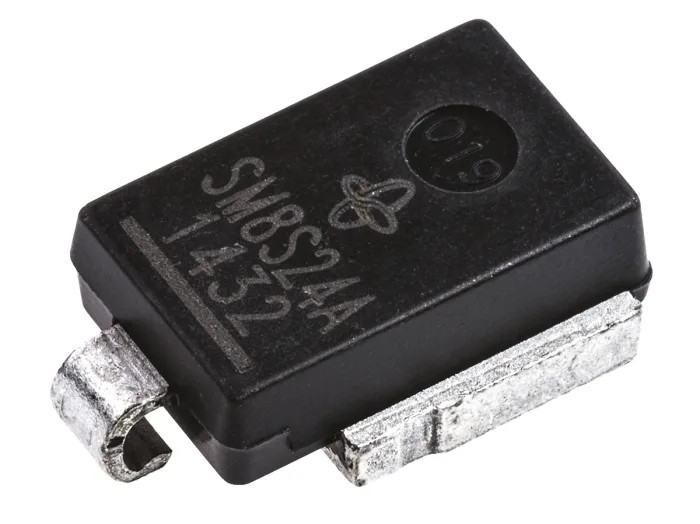

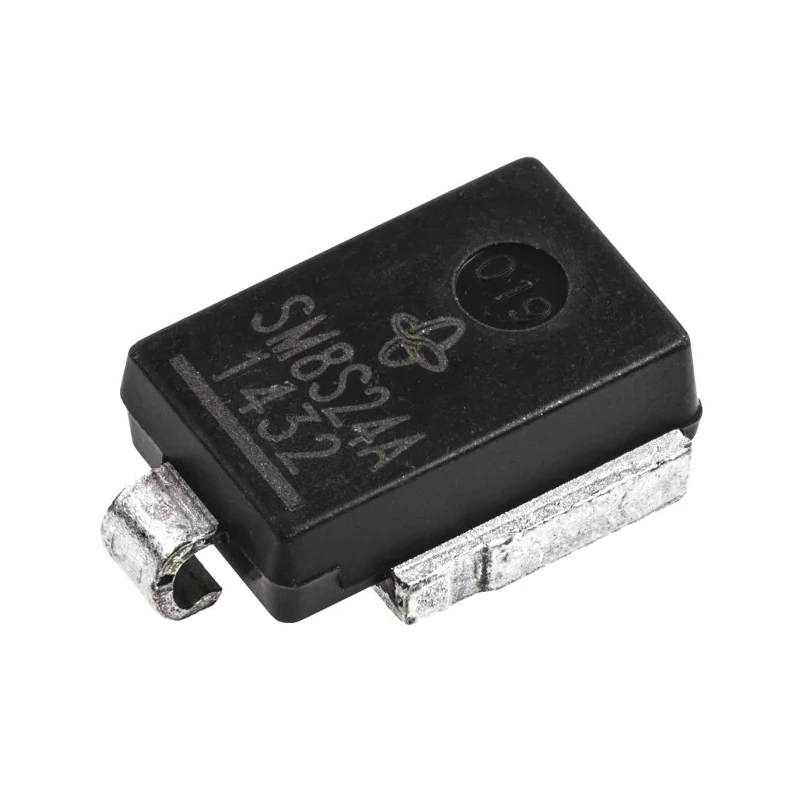

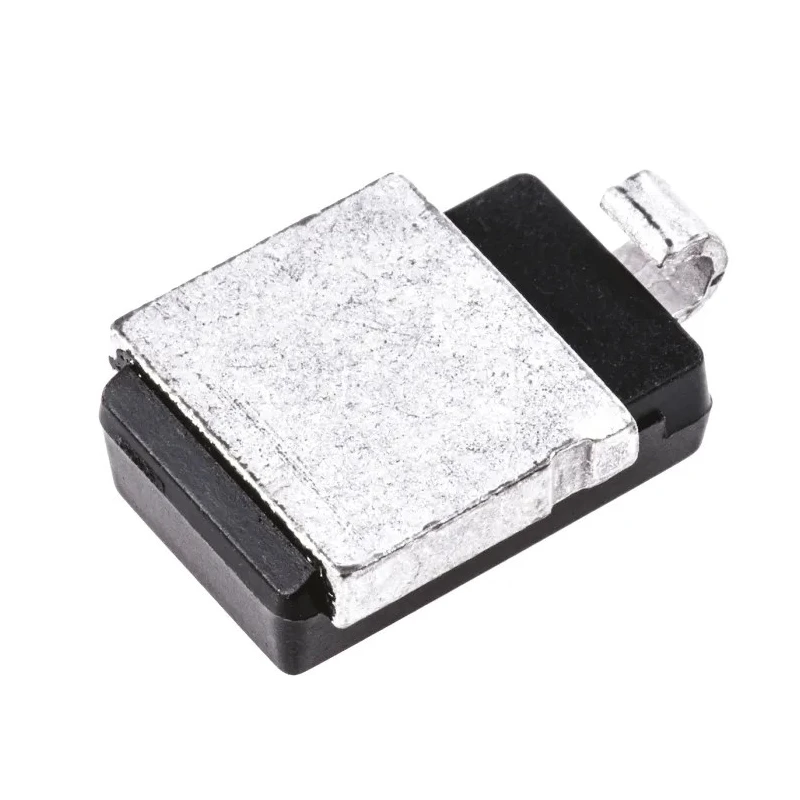

Vishay 2-Element Uni-Directional TVS Diode 6.6 kW, 2-Pin DO-218 SM8S24AHE3_A/I
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Vishay |
| Height | 5mm |
| Length | 13.7mm |
| Model | SM8S24AHE3_A/I |
| Width | 8.7mm |
| Mount Type | Surface |
| Series | PAR TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-218 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 43V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 6.6kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 153A |
| Maximum Reverse Leakage Current | 150μA |
Key Features
- Delivers high energy transient voltage suppression up to 6.6 kW.
- Uni-directional diode configuration with common anode design.
- Minimum breakdown voltage of 26.7 V and clamping voltage of 43 V.
- Wide operating temperature range from -55°C to 175°C.
- Compact dimensions of 13.7 mm length, 8.7 mm width, and 5 mm height.
- Meets automotive AEC-Q101 standard for reliability.
- Features low maximum reverse leakage current of 150 μA.
- ESD protection enabled with maximum peak pulse current of 153 A.
Product Description
Vishay SM8S24AHE3_A/I 2-Element Uni-Directional TVS Diode provides industrial-grade transient voltage suppression with a peak pulse power dissipation of 6.6 kW. Packaged in a 2-pin DO-218 surface mount package, this diode is ideal for protecting sensitive electronics from voltage spikes and surges in industrial, automotive, and electronic component manufacturing.
This device features a common anode diode configuration with uni-directional current flow, delivering a minimum breakdown voltage of 26.7 V and clamping voltage of 43 V. It ensures robust performance over a wide temperature range from -55°C to 175°C, suitable for harsh operating conditions.
Compact dimensions of 13.7 mm length, 8.7 mm width, and 5 mm height allow efficient PCB space usage while maintaining excellent surge protection capabilities. With a maximum reverse leakage current of only 150 μA, this diode achieves high electrical efficiency.
The SM8S24AHE3_A/I supports ESD protection and meets the automotive AEC-Q101 qualification, making it suitable for automotive electronics requiring stringent quality standards. Its max peak pulse current rating of 153 A provides reliable defense against transient voltage spikes.
This product is a part of Vishay's PAR TVS series transient voltage suppressors, tailored for SMT unidirectional surge protection in power and electronic circuits. Its dual-element per chip design ensures effective transient absorption and circuit protection.
Delivers high energy transient voltage suppression up to 6.6 kW. Compact DO-218 surface mount package for easy integration. Wide temperature range from -55°C to 175°C for industrial environments. Low leakage current optimizes circuit efficiency.
Meets automotive AEC-Q101 standard for reliability. ESD protection capability included. Maximum peak pulse current rating of 153 A. Two elements per chip with common anode design.
This diode is ideal for industrial electronics, automotive protection circuits, power supplies, telecommunication equipment, and other applications requiring reliable transient voltage suppression. Explore more Vishay TVS Diodes and other semiconductor components on EnvMart for your circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SM8S24AHE3_A/I TVS diode has a peak pulse power dissipation of 6.6 kW.
The minimum breakdown voltage for this diode is 26.7 V.
The clamping voltage of this model is 43 V.
The maximum reverse leakage current is 150 μA.
This diode operates over a wide temperature range from -55°C to 175°C.
The dimensions of the SM8S24AHE3_A/I are 13.7 mm in length, 8.7 mm in width, and 5 mm in height.
The SM8S24AHE3_A/I uses a common anode configuration with uni-directional current flow.
This model meets the automotive AEC-Q101 standard for reliability.
The maximum peak pulse current rating is 153 A.
This diode is designed for surface mounting.
This diode is suitable for applications in industrial electronics, automotive protection circuits, and telecommunication equipment.
The SM8S24AHE3_A/I is part of the PAR TVS series of transient voltage suppressors.
