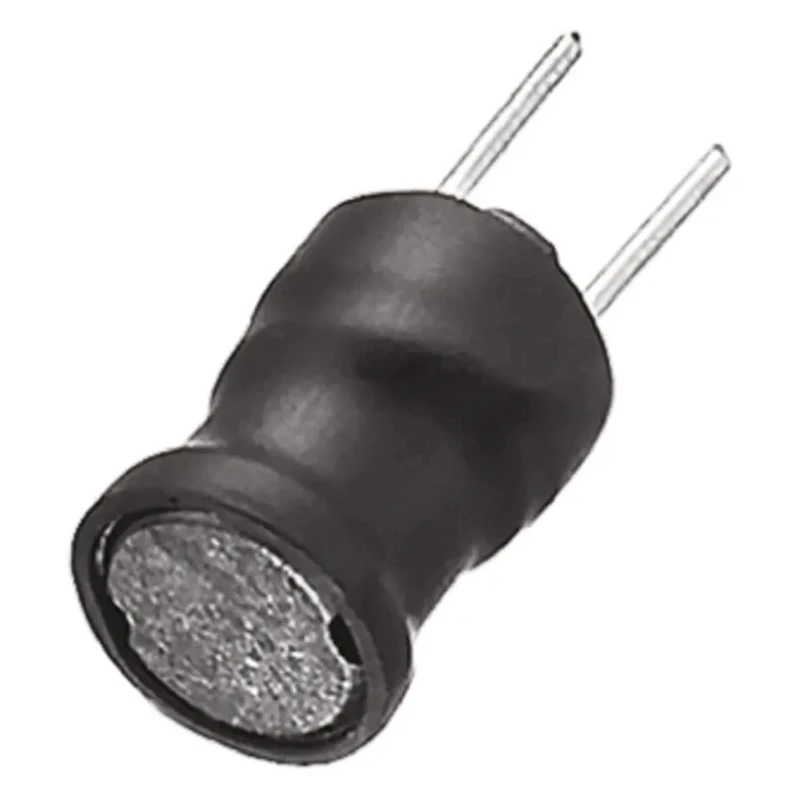

Wurth Elektronik WE-TI 5075 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 220 μH ±10 % 500 mA IDC 7447462221

Wurth Elektronik model 7447462221 is a wirewound surface mount inductor with an unshielded design utilizing a ferrite core, offering an inductance of 220 μH with ±10 % tolerance. It is designed for use in electronic components to provide effective inductance in compact PCB applications, with a maximum DC current rating of 500 mA. The radial termination style facilitates secure and efficient PCB surface mounting.

This inductor features a small footprint with dimensions of 6 mm in diameter, 8.5 mm height, and 6 mm depth, making it ideal for space-constrained electronic designs. Its maximum DC resistance of 1.2Ω ensures minimal power loss, while the high self-resonant frequency of 4.2 MHz supports high-frequency operation.

The product operates reliably over a temperature range from -40°C to 125°C, suitable for demanding industrial and commercial electronic environments. It is compliant with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards, ensuring environmentally friendly and safe use.

Typical applications include signal filtering, EMI noise suppression, power supply filtering, decoupling tasks, and low power switch mode regulators. This Wurth Elektronik WE-TI series radial inductor is engineered for industrial, laboratory, and manufacturing electronics, enhancing circuit stability and performance.

Constructed with a high-quality ferrite core providing stable inductance characteristics. Compact size enables integration into tight PCB spaces. Low DC resistance ensures energy efficiency in circuits. Suitable for signal and power filtering applications.

Complies with international standards for quality and safety.

Experience reliable and efficient inductance performance with the Wurth Elektronik 7447462221 Surface Mount Inductor, ideal for a wide range of electronic designs. Explore more products in our Electronics Components category to complement your engineering solutions.
