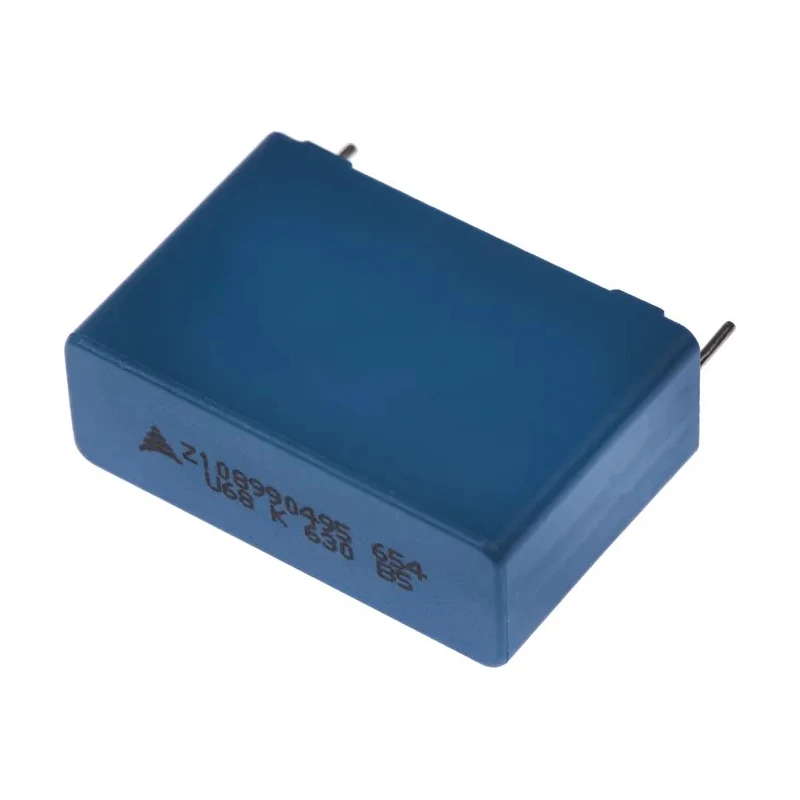

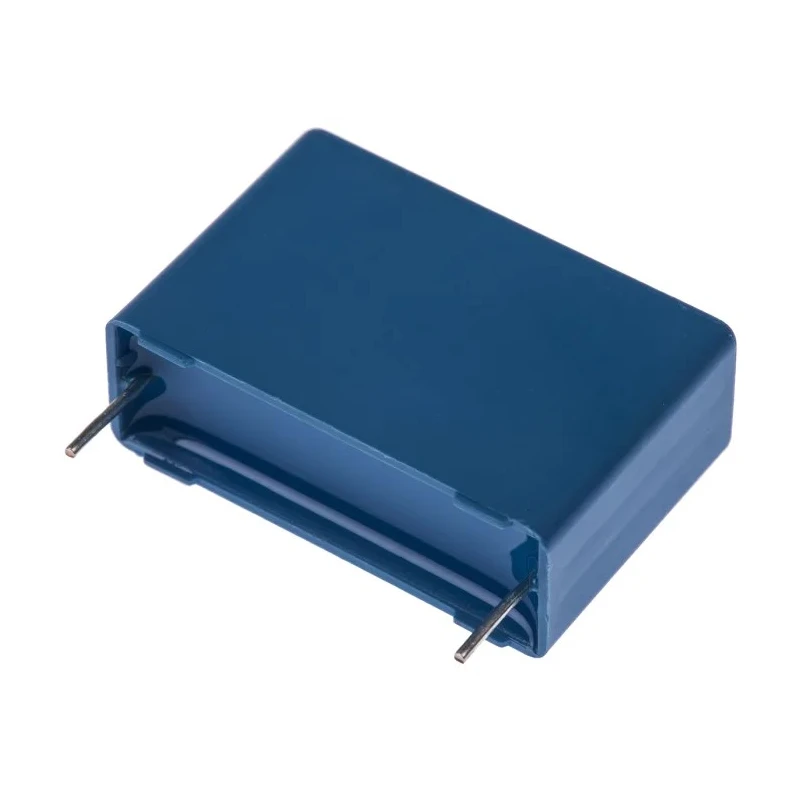

TDK Film Capacitor 680 nF 250V AC 630 V DC Through Hole Mount 2-Pin 21mm Height B32654A6684K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 680 nF 250V AC 630 V DC Through Hole Mount 2-Pin 21mm Height B32654A6684K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	21mm
Length	31.5mm
Model	B32654A6684K000
Width	11mm
Mount Type	Through Hole
Series	B32652
Maximum Operating Temperature	100°C
Capacitance	680nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	250V ac
Rated DC Voltage	630V dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

This capacitor uses wound capacitor technology with internal series connection for voltage ratings ≥1250 V DC.
Encased in a flame retardant plastic case conforming to UL 94 V-0 standards with epoxy resin sealing.
Supports high pulse strength and high contact reliability in compact dimensions.
Lead pitch measures 27.5 mm with 0.8 mm lead diameter and 2-pin count for through-hole mounting.
Maximum operating temperature is 100°C, suitable for demanding electronic environments.
Typical applications include TV S-correction, TV flyback circuits, and electronic ballast circuits.
Complies with automotive standard AEC-Q200 Rev D and is RoHS and UL approved.

Product Description

TDK B32654A6684K000 Film Capacitor is a precision component offering 680 nF capacitance with a rated alternating current voltage of 250V and direct current voltage of 630V. This through-hole mount capacitor is constructed with wound capacitor technology featuring an internal series connection to support voltage ratings of 1250 V DC or higher.

The capacitor is encapsulated in a flame retardant plastic case adhering to UL 94 V-0 standards, sealed with epoxy resin to ensure durable performance and safety against environmental factors. It exhibits high pulse strength and contact reliability while maintaining compact physical dimensions of 31.5 mm length, 21 mm height, and 11 mm width. The lead pitch is set at 27.5 mm with a lead diameter of 0.8 mm and is designed for easy PCB through-hole mount installation with two pins.

Engineered to operate at maximum temperatures up to 100°C, this component is ideal for applications such as TV S-correction, TV flyback circuits, and electronic ballast circuits in various industrial and commercial electronic systems. Furthermore, it complies with automotive quality standards AEC-Q200 Rev D and holds UL and RoHS certifications, validating its quality and compliance for automotive and industrial use.

Wound capacitor technology with internal series connection for high voltage support. Plastic case rated UL 94 V-0 with epoxy resin sealing for enhanced durability. High pulse strength characteristic ensures reliability in pulsed circuits.

Compact dimensions facilitate integration in space-constrained circuit boards. Lead pitch and diameter optimized for through-hole mounting. Automotive standard AEC-Q200 Rev D compliant and RoHS certified for environmental safety.

This film capacitor is widely used in industrial, consumer electronics manufacturing, and automotive sectors where reliable, high-voltage capacitors are essential. Suitable for inclusion in electronic ballasts, TV and display units, and other precision electronic devices.
