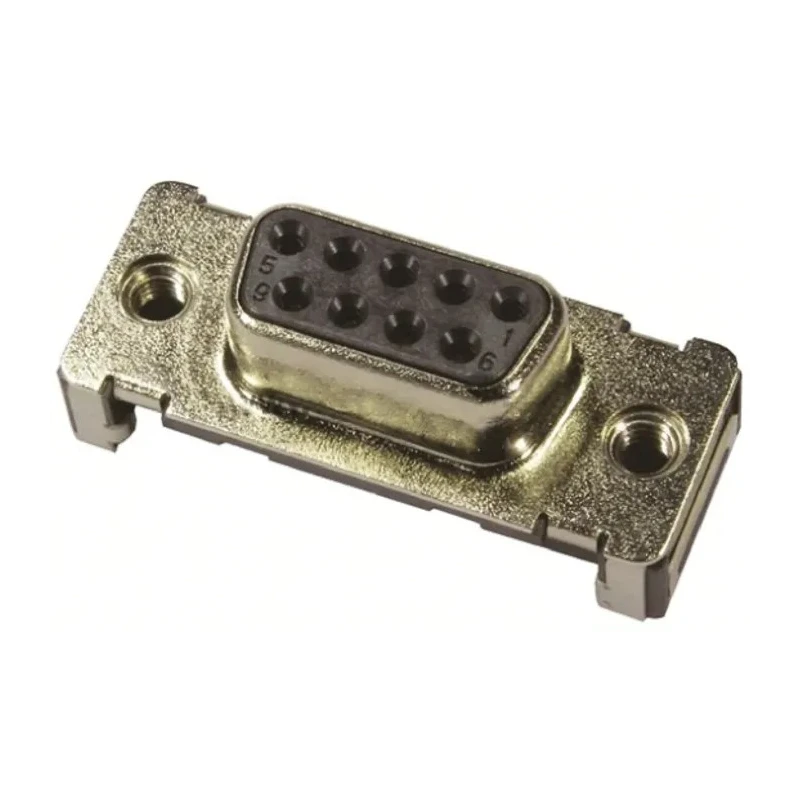

HARTING D-Sub 9 Way Straight 2.74 mm Pitch Surface Mount Metal Housing 5A 1000V Connector 09551156612741
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | Metal |
| Contact Material | Phosphor Bronze |
| Series | D-Sub |
| Mounting Hardware | 4 to 40 UNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 260°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
| M3 | 787-0856 9 way respectively |
Key Features
- Provides 9 female solder termination contacts with 2.74 mm pitch.
- Metal housing ensures durability and high voltage rating up to 1000V.
- Supports current rating of 5A for reliable performance.
- Operating temperature range from -55°C to 260°C for harsh environments.
- Equipped with 4 to 40 UNC mounting hardware for secure panel attachment.
- Gold plated phosphor bronze contacts offer improved conductivity and corrosion resistance.
- Surface mount type suitable for PCB integration.
- Designed to meet performance level 2 standards without additional approvals.
Product Description
HARTING 09551156612741 D-Sub 9 Way Straight Surface Mount Connector delivers reliable electrical connections with a 2.74 mm pitch and metal housing designed for industrial and electronic applications. Rated for 5A current and 1000V voltage, this connector is suitable for demanding environments including industrial control, telecommunication equipment, and embedded systems requiring precision and durability.
The female contacts are made of phosphor bronze and plated with gold to ensure excellent conductivity and resistance to corrosion, maintaining signal integrity over extended operational cycles. The connector supports solder termination type for strong PCB mounting. The metal housing with DS-1 shell size provides mechanical strength and shielding.
Mounting is facilitated by 4 to 40 UNC hardware ensuring stable panel fixing. The operating temperature range from -55°C up to 260°C allows deployment in extreme environmental conditions such as industrial manufacturing floors and outdoor installations.
This D-Sub connector series 09551156612741 includes ground pads to reduce electromagnetic interference, critical for high-speed data and power transmission. The connector is produced in China and is ideal for industrial, laboratory, and commercial electronics assembly, where robust and effective interconnections are required.
Provides 9 female solder termination contacts with 2.74 mm pitch. Metal housing ensures durability and high voltage rating up to 1000V. Supports current rating of 5A for reliable performance. Operating temperature range from -55°C to 260°C for harsh environments.
Equipped with 4 to 40 UNC mounting hardware for secure panel attachment. Gold plated phosphor bronze contacts offer improved conductivity and corrosion resistance. Surface mount type suitable for PCB integration. Designed to meet performance level 2 standards without additional approvals.
For applications requiring high reliability and consistent electrical performance, the HARTING 09551156612741 D-Sub Connector offers an ideal solution. Explore more connectors and electronic components in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector is rated for a current of 5A, ensuring reliable performance in various applications.
It can handle a maximum voltage of 1000V, making it suitable for high voltage applications.
The operating temperature range for this connector is from -55°C to 260°C, allowing it to function in extreme environments.
This model features 9 female solder termination contacts, providing multiple connection points.
It is equipped with 4 to 40 UNC mounting hardware for secure panel attachment.
The contacts are made of phosphor bronze and are gold-plated to enhance conductivity and corrosion resistance.
The pitch of the contacts is 2.74 mm, which is standard for many electronic applications.
This connector uses a solder termination type, suitable for strong PCB mounting.
The housing is made of metal, providing durability and mechanical strength.
Yes, this model is designed for surface mount applications, making it ideal for PCB integration.
The shell size for this connector is DS-1, which is common for D-Sub connectors.
This D-Sub connector is manufactured in China.
