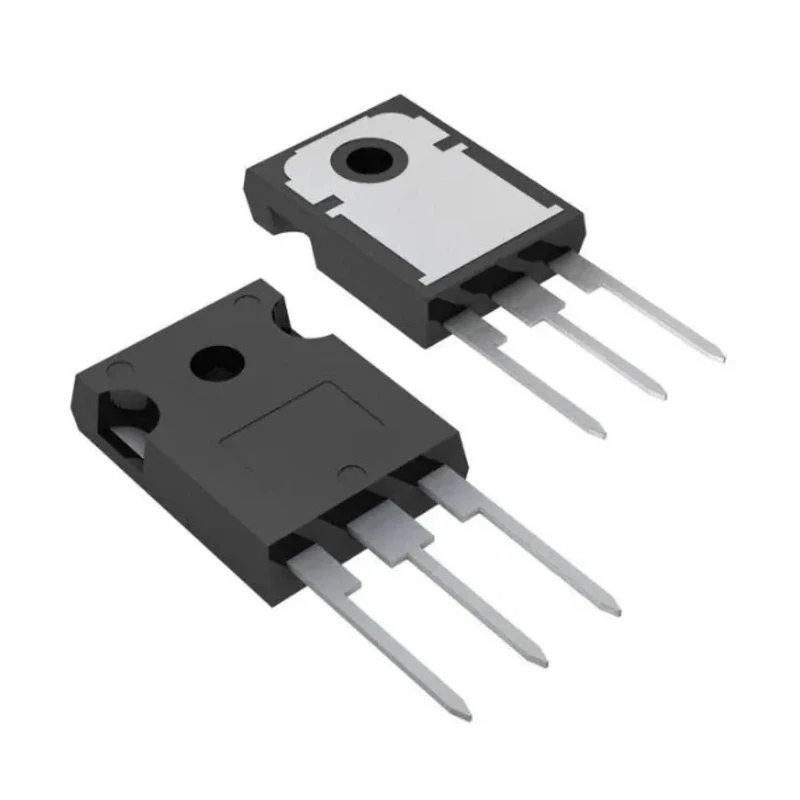

STMicroelectronics 600 V 30 A High Voltage Diode 3-Pin TO-247 STTH30R06CW
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH30R06CW |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH30R06C |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | High Voltage |
| Peak Reverse Current Ir | 800μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 2.9V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- The diode utilizes ST Turbo 2 technology for improved performance under hard switching conditions.
- It features ultrafast switching characteristics with a peak reverse recovery time of 50ns.
- Low reverse current ensures efficiency and reduced power loss.
- The device has a compact TO-247 package with 3 pins for through-hole mounting.
- It is suitable as a boost diode in continuous mode power factor correction circuits.
- Peak non-repetitive forward surge current is rated at 120A for transient conditions.
- The diode operates reliably between -65°C and 175°C temperature range.
- Low thermal resistance reduces heat generation and enhances durability.
Product Description
STMicroelectronics STTH30R06CW is a high voltage diode with a maximum continuous forward current of 30 A and a peak reverse voltage of 600 V. Packaged in a 3-pin TO-247 through-hole format, this diode is engineered using advanced ST Turbo 2 600 V technology.
This diode is designed for use in power switching applications requiring ultrafast switching and low losses. Its key features include a low peak reverse current of 800 μA and a peak reverse recovery time of only 50 ns, enabling efficient operation in hard switching and power factor correction circuits.
Operating temperature ranges from -65°C up to 175°C, making it suitable for industrial and commercial environments with demanding thermal requirements. The TO-247 package dimensions include a height of 20.15 mm, length of 15.75 mm, and width of 5.15 mm, providing robust mounting and heat dissipation capabilities.
This device excels as a boost diode in continuous mode power factor corrections and as a free wheeling diode in power supplies, motor drives, and other power switching equipment. Its low thermal resistance and reduced switching and conduction losses contribute to enhanced system efficiency and reliability.
The diode uses ST Turbo 2 technology for reliable high voltage operation. Ultrafast switching characteristics minimize energy loss during operation. Low reverse current contributes to higher device efficiency. Designed for continuous forward current up to 30 A.
Peak non-repetitive forward surge current capability of 120 A. Wide operating temperature range from -65°C to 175°C. Compact TO-247 package with 3 pins for easy integration. Height: 20.15 mm, Length: 15.75 mm, Width: 5.15 mm.
This diode is ideal for industrial and commercial electronics manufacturing, power supply design, motor control, and high voltage rectification applications. It conforms to standard semiconductor quality requirements but does not carry specific certifications.
Explore more semiconductor components and power rectifiers in the Electronics & Electricals category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 30 A.
The peak reverse voltage rating of this diode is 600 V.
The peak reverse recovery time for this diode is 50 ns.
The dimensions of the TO-247 package are 20.15 mm in height, 15.75 mm in length, and 5.15 mm in width.
This diode operates reliably between -65°C and 175°C.
The peak non-repetitive forward surge current is rated at 120 A.
The maximum forward voltage drop of this diode is 2.9 V.
This diode uses a through-hole mounting type.
The peak reverse current rating for this diode is 800 μA.
This diode is suitable for use as a boost diode in continuous mode power factor correction circuits and as a free wheeling diode in power supplies and motor drives.
The diode configuration of this model is a 2x common cathode pair.
This diode utilizes ST Turbo 2 technology for improved performance under hard switching conditions.
