| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.01mm |
| Length | 3.04mm |
| Model | MMBZ6V2ALT1G |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | MMBZ A |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 8.7V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.89V |
| Maximum Reverse Stand-off Voltage Vwm | 3V |
| Peak Pulse Power Dissipation Pppm | 24W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 2.7A |
| Maximum Reverse Leakage Current | 500nA |
| STMicroelectronics 2-Element Uni-Directional TVS Diode, 300 W, 3-Pin SOT-23Brand | STMicroelectronics |

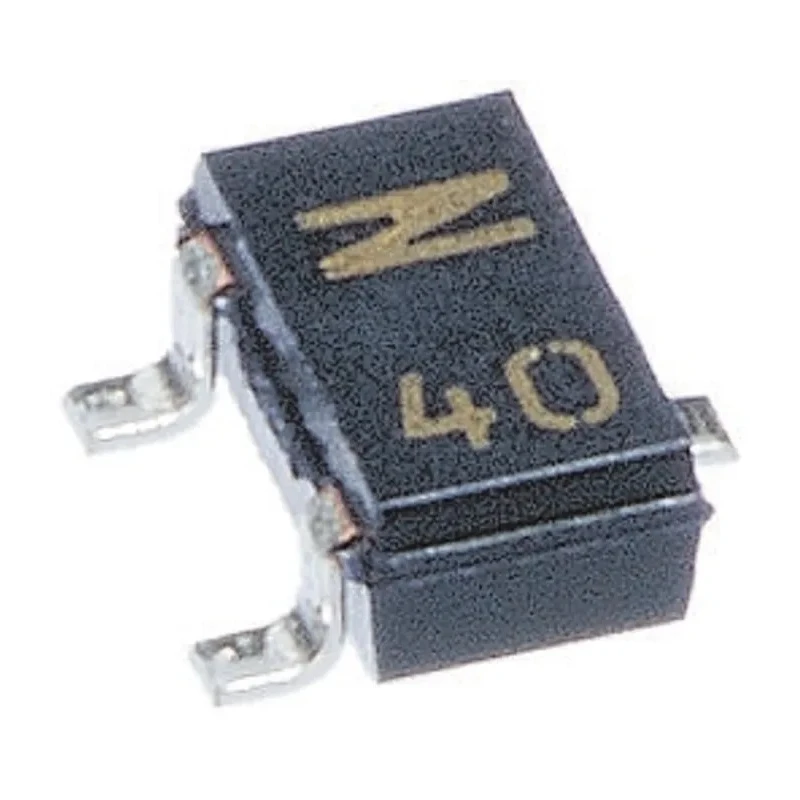

onsemi MMBZ6V2ALT1G is a 2-element uni-directional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic components from voltage spikes and transient surges. Featuring a common anode diode configuration, it is housed in a compact SOT-23 surface mount package ideal for space-constrained applications.
The diode supports a peak pulse power dissipation of 24 W, making it well suited for industrial, automotive, and electronic equipment protection roles. It has a minimum breakdown voltage of 5.89 V, with a clamping voltage of 8.7 V that limits harmful transient voltages effectively.
This device operates reliably across a broad temperature range from -55°C to 150°C and meets the automotive standard AEC-Q101 for enhanced quality and reliability in automotive electronics. Its low maximum reverse leakage current of 500 nA ensures minimal power loss during normal operation.
The MMBZ6V2ALT1G provides electrostatic discharge (ESD) protection to prevent damage from sudden electrostatic charges. It is optimized for automated insertion and surface mounting with a pin count of 3 and package dimensions: length 3.04 mm, width 1.4 mm, and height 1.01 mm.
This TVS Diode is ideally used in industrial electronics, automotive systems, communication devices, and power supply protection, safeguarding components from voltage transients and enhancing overall system reliability.
Common anode diode configuration for effective voltage suppression. High peak pulse power dissipation of 24 W protects against strong transients. Wide operating temperature range (-55°C to 150°C) suitable for harsh environments.
Automotive grade compliance to AEC-Q101 ensures reliability. Low leakage current (500 nA) improves energy efficiency. Compact SOT-23 surface mount package for space-saving design. 3-pin configuration facilitates ease of mounting and integration.
Clamping voltage limits transient voltages to safe levels at 8.7 V. Electrostatic discharge protection enhances device longevity and reliability. For additional electronic components and semiconductor solutions, explore the Electronics & Electricals category on EnvMart.
