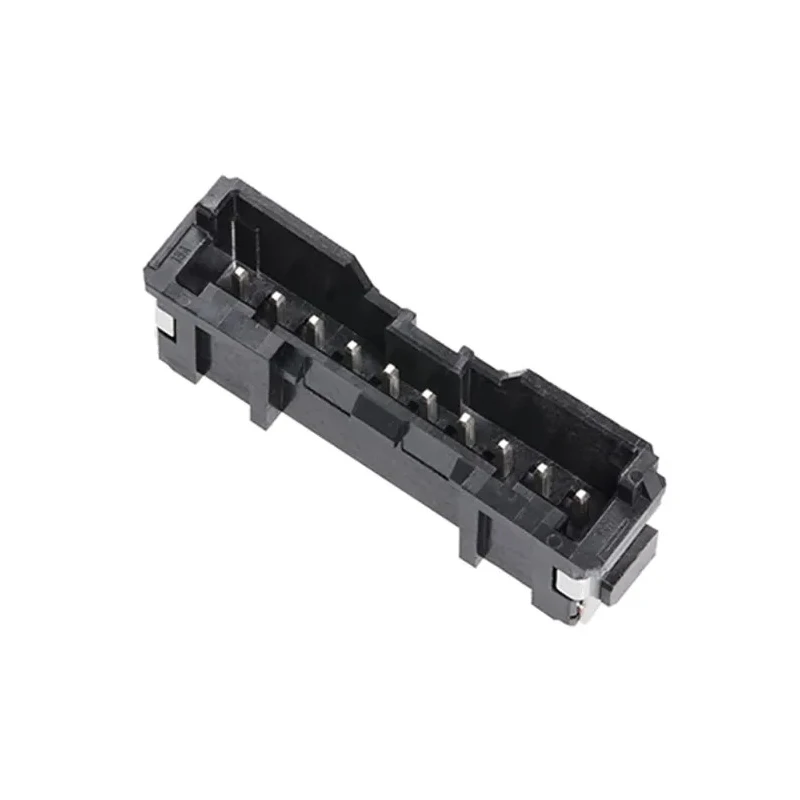

Molex Micro-Lock Plus Series PCB Header, 8 Contact(s), 2 mm Pitch, 1 Row, Shrouded 505575-0871

Name: Molex Micro-Lock Plus Series PCB Header, 8 Contact(s), 2 mm Pitch, 1 Row, Shrouded 505575-0871
Brand: Molex
SKU: 101745



Category PCB Connectors & Wire Housings Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Current	3.0
Contact Material	Brass
Series	Micro-Lock Plus
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	8
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Designed for compact applications with high-temperature tolerance up to 105°C.
Utilizes brass contacts plated with tin for reliable electrical performance.
Provides 3.0 A current rating at 250 V voltage rating for robust connectivity.
Features a wide positive latch with an audible click for secure connections.
Supports single-row, 8-contact configuration optimized for PCB mounting.
Includes robust metal solder tabs to ensure mechanical stability.
Tin-bismuth terminal plating prevents whiskering for a clean, uninterrupted signal.
Suitable for automotive, industrial automation, white goods, drones, and air conditioning systems.

Product Description

Molex 505575-0871 Micro-Lock Plus Series PCB Header is a high-quality wire-to-board connector designed for compact and high-temperature applications. Featuring 8 contacts arranged in a single shrouded row with a 2 mm pitch, it offers reliable electrical connectivity rated at 3.0 A current and 250 V voltage.

The connector utilizes brass contact material with tin plating, enhanced by tin-bismuth terminals to prevent whiskering and ensure signal integrity. Its robust metal solder tabs provide mechanical strength, making it suitable for demanding environments.

Designed with a wide positive latch mechanism that delivers a clear audible click, this PCB header ensures secure and stable connections. The series supports a single-row configuration optimized for PCB mounting, ideal for use in automotive components such as steering wheels, paddle shifts, and combination switches.

Beyond automotive uses, it also finds application in industrial automation, consumer electronics like white goods and gaming machines, drones, air conditioners, laser printers, and vacuum cleaners. Its shrouded design protects contacts from environmental factors, enhancing longevity and reliability in critical industrial and commercial settings.

Compact 2 mm pitch PCB header with 8 contacts in one row. Brass contacts with tin and tin-bismuth plating prevent corrosion and whiskering. Rated for 3.0 A current, 250 V voltage, and withstands up to 105°C. Wire-to-board connector system with positive locking for secure connections.

Applications include automotive, industrial automation, consumer products, and HVAC systems. Robust metal solder tabs for mechanical durability. Shrouded design to protect contacts and improve connection reliability. Explore more Molex PCB Headers and connectors at EnvMart for reliable, industrial-grade electronic components tailored to your project's requirements.
