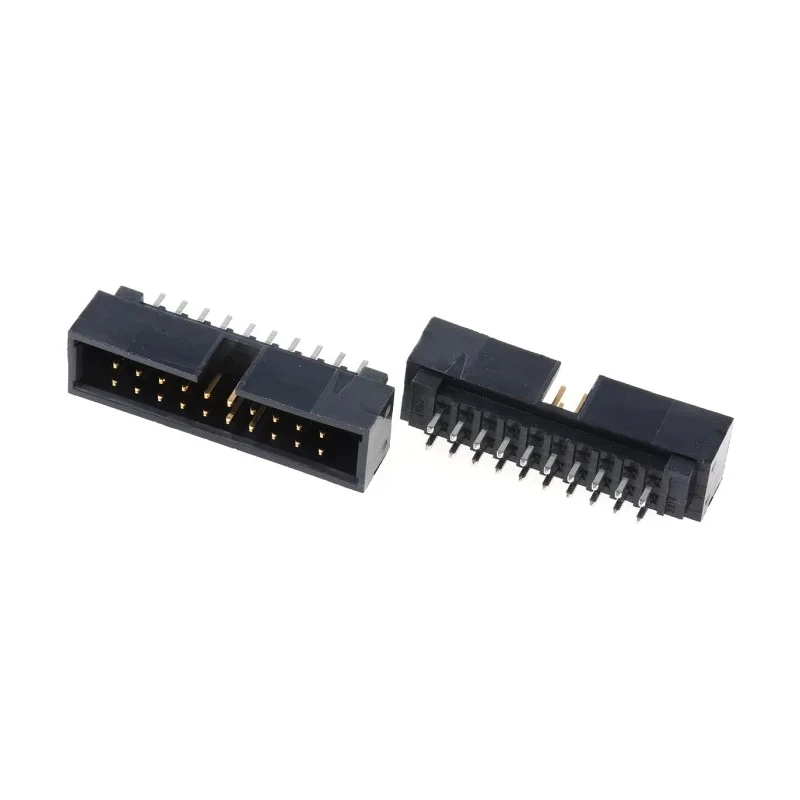

Molex C-Grid Series Straight Through Hole PCB Header 20 Contacts 2.54 mm Pitch 2 Row Shrouded 70246-2001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | C-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.43mm |
| Mating Pin Length | 2.54mm |
Key Features
- High-quality Polybutylene Terephthalate housing ensures durability and electrical insulation.
- Gold plated phosphor bronze contacts offer excellent conductivity and corrosion resistance.
- Rated for 2.5A current and 250V operating voltage suitable for medium power applications.
- Through-hole mount type ensures strong mechanical and electrical connection to PCBs.
- Operating temperature range from -55°C to 120°C provides reliability in harsh environments.
- Tail pin length of 3.43 mm and mating pin length of 2.54 mm optimize soldering and mating integrity.
- Shrouded design provides added protection against accidental shorts and enhances connector reliability.
- Designed for vertical dual in-line packaging (DIL) suitable for compact assembly layouts.
Product Description
Molex 70246-2001 C-Grid Series Straight Through Hole PCB Header features 20 contacts arranged in 2 rows with 2.54 mm pitch and a shrouded housing made of Polybutylene Terephthalate. This through-hole male connector is designed for wire-to-board applications, providing robust electrical and mechanical connections in electronic assemblies.
The phosphor bronze contacts are plated with gold for excellent conductivity and resistance to corrosion, rated to handle 2.5 amperes of current at 250 volts. The tail pin length is 3.43 mm, with a mating pin length of 2.54 mm, ensuring reliable solder termination and connector engagement.
Operating reliably across a wide temperature range of -55°C to 120°C, this PCB header is suitable for demanding environments in industrial, electronics manufacturing, telecommunication, and other commercial applications.
The shrouded 2-row design provides improved protection by preventing accidental contact with pins, enhancing durability and safety in complex circuit board designs. Its vertical dual in-line form factor fits standard PCB layouts, supporting efficient space utilization.
Durable Polybutylene Terephthalate housing for high insulation and mechanical strength. Gold-plated phosphor bronze contacts ensure low resistance and longevity. Rated current of 2.5A and voltage of 250V support medium power electronic circuits.
Through-hole mount provides strong fixation and reliable soldering on PCB. Wide operating temperature from -55°C to 120°C for extreme condition performance. Shrouded contact design protects pins and reduces electrical hazards.
Ideal for industrial, electronics manufacturing, and telecommunications. Mates with compatible Molex 70058 Series terminals for versatile connection.
This Molex PCB Header enhances the reliability and efficiency of electrical connections, making it a preferred choice in electronics assembly lines, repair, and prototyping. Explore additional Molex connector solutions in our Electronics Components category to meet diverse industrial and commercial needs.
