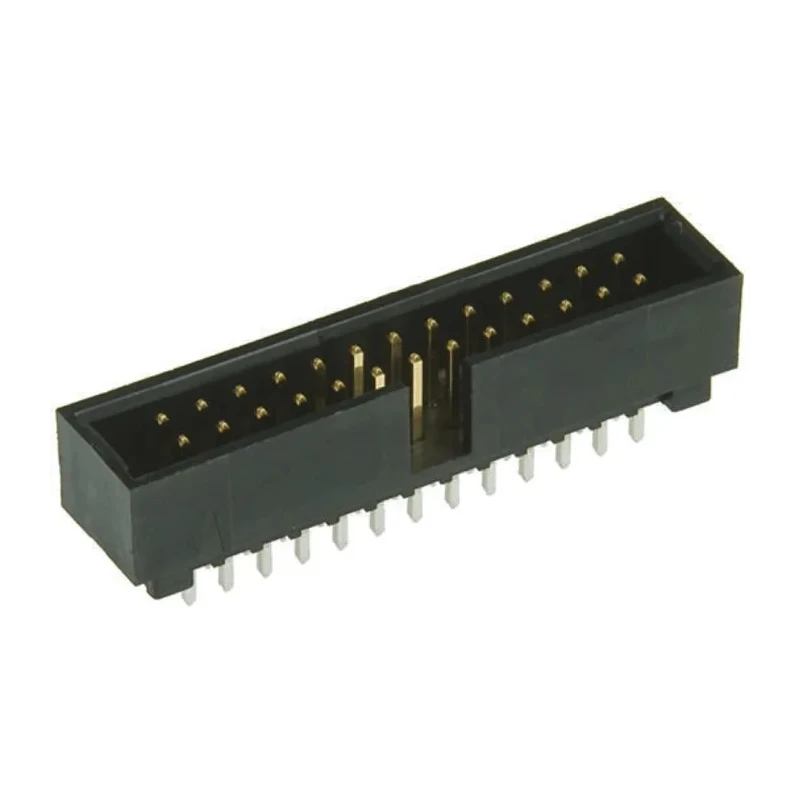

Molex C-Grid Series Straight Through Hole PCB Header, 26 Contact, 2.54 mm Pitch, 2 Row, Shrouded 70246-2601
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | C-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.43mm |
| Mating Pin Length | 2.54mm |
Key Features
- Features a gold-plated phosphor bronze contact material for reliable electrical performance.
- Constructed with polybutylene terephthalate housing to withstand harsh operating conditions.
- Supports a current rating of 2.5 A and voltage rating of 250 V.
- Operating temperature range spans from -55°C to 120°C ensuring durability.
- Includes 3.43 mm tail pin length and 2.54 mm mating pin length for secure connections.
- Designed for solder termination and straight orientation providing ease of installation.
- Shrouded design offers protection and prevents misalignment during mating.
- Complies with standard industrial practices but no specific approvals listed.
Product Description
Molex 70246-2601 C-Grid Series Straight Through Hole PCB Header is engineered for robust wire-to-board connection needs in electronics manufacturing. This 2 row, 26 contact header features a pitch of 2.54 mm, promoting high-density PCB designs with straight orientation and shrouded protection to prevent incorrect mating and improve assembly integrity.
Its contacts are made of phosphor bronze with gold plating to ensure optimal conductivity and resistance to corrosion. The polybutylene terephthalate housing provides excellent durability and thermal stability across a temperature range of -55°C to 120°C, supporting demanding industrial applications in electronics, communication equipment, instrumentation, and control systems.
This PCB header supports a voltage rating of 250 V and a current rating of 2.5 A, making it suitable for a wide array of power and signal applications. The solder termination and standardized tail pin length of 3.43 mm guarantee strong mechanical and electrical connections on the PCB.
Gold-plated phosphor bronze contacts offer high electrical reliability. Polybutylene terephthalate housing provides mechanical strength and heat resistance. Wide operating temperature range from -55°C to 120°C for various environments.
Shrouded design ensures protection and accurate mating. 2.54 mm pitch and 26 contacts allow for compact PCB layouts. Through hole mount type preserves robust mechanical attachment. Compatible with industry-standard 70058 Series terminals.
This product is ideal for industrial electronics manufacturing, board assembly, and prototyping environments where durability, precise fit, and reliable electrical connections are critical. It supports enhanced production efficiency and quality in electrical and electronic component integration.
Explore Molex's extensive portfolio on EnvMart for more PCB connectors and related electronic components for your industrial and laboratory requirements.
Explore more products in our PCB Headers category.
