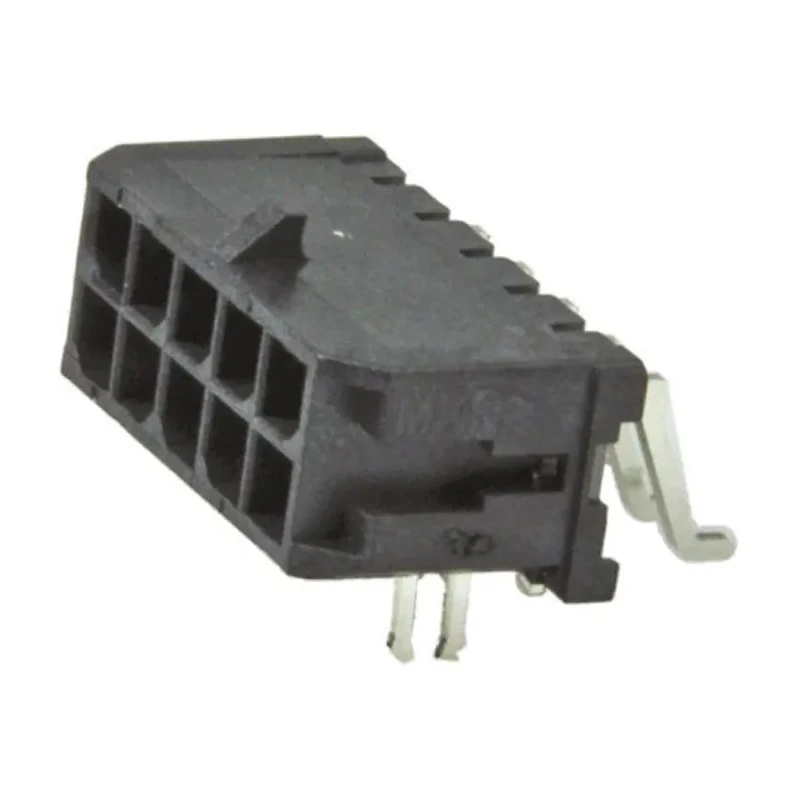

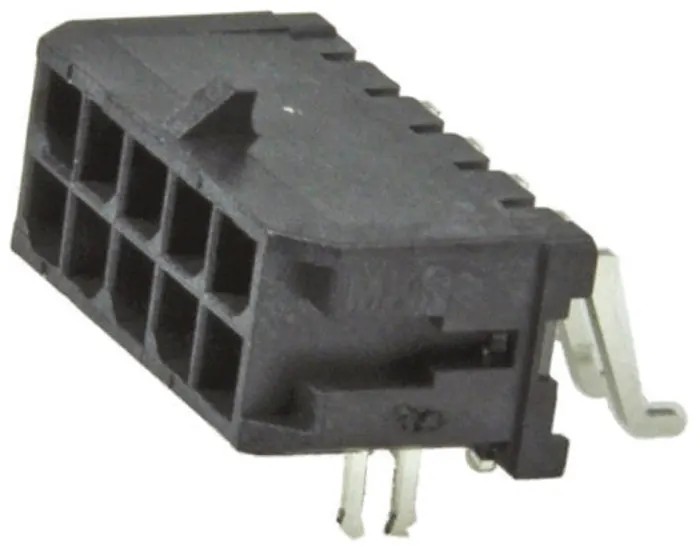

Molex Micro-Fit 3.0 Series Straight Surface PCB Header 8 Contacts 3 mm Pitch 2 Row Shrouded 43045-0815
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header supports a current rating of 5A, ideal for power distribution applications.
- Constructed with thermoplastic housing and brass contacts plated with tin for durability.
- Designed with a straight orientation and surface mount type for PCB integration.
- Operates reliably in temperatures from -40°C to 105°C ensuring broad environmental compatibility.
- Features positive latching with locking ramp housing to prevent accidental disconnections.
- Suitable for low to mid-range power applications including industrial and consumer electronics.
- The connector system is wire-to-board with male contact gender and shrouded construction.
- Complies with high-temperature IR reflow soldering processes with UL 94V-0 Liquid Crystal Polymer housing.
Product Description
Molex 43045-0815 Micro-Fit 3.0 Series Straight Surface PCB Header features dual row 8 contacts with a 3 mm pitch designed for reliable wire-to-board connections in electronic assemblies. The shrouded housing and positive latching locking ramp ensure secure mating and minimize accidental disconnects.
Constructed with thermoplastic housing and brass contacts plated with tin, this PCB header provides durability and dependable electrical performance. It supports a maximum current rating of 5A and voltage of 250V, making it suitable for a range of low to mid power distribution applications.
The connector is surface-mounted and compatible with solder termination, supporting operation in ambient temperatures from -40°C to 105°C. The housing material complies with UL 94V-0 standards, enabling it to withstand reflow soldering temperatures up to 265°C.
This Micro-Fit 3.0 header incorporates metal press-fit retention clips ensuring robust mechanical retention to PCB, facilitating manufacturing process efficiency. It is ideal for industrial, consumer electronics, telecommunications, medical, gaming terminals, solar power systems, and military COTS applications.
The connector features isolated dual beam terminals, reducing arcing and enhancing contact reliability over time. The male contact gender and shrouded design protect contacts and ensure proper alignment during assembly.
This PCB header carries up to 5A current with a compact 3 mm pitch dual row configuration. Thermoplastic housing with UL 94V-0 rating withstands high temperature soldering processes. Positive latching via locking ramp prevents accidental disconnection during operation.
Surface mount compatible with solder termination offers manufacturing flexibility. Metal press-fit retention clips secure connector firmly to PCB. Highly suitable for industrial, telecommunications, consumer electronics and medical applications.
Designed and manufactured to meet stringent performance and environmental standards. Explore more from Molex connectors and related electronic components in the PCB Headers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current rating of 5A, making it suitable for low to mid-range power distribution applications.
The voltage rating for this model is 250V, which allows it to be used in various electrical applications.
The contacts of this PCB header are arranged with a pitch of 3 mm, facilitating compact connections on the PCB.
It features a thermoplastic housing and brass contacts plated with tin, ensuring durability and reliable electrical performance.
This unit operates reliably within a temperature range of -40°C to 105°C, ensuring broad environmental compatibility.
This PCB header is designed for surface mounting, compatible with solder termination for easy integration into electronic assemblies.
It utilizes a wire-to-board connector system, which is common in various electronic applications.
This model features 8 contacts arranged in a dual row configuration, allowing for multiple connections.
The orientation of this PCB header is straight, which is typical for many PCB applications.
Yes, it features positive latching with a locking ramp housing to prevent accidental disconnections during operation.
The country of origin for this PCB header is Mexico, indicating where it was produced.
The housing material complies with UL 94V-0 standards, which indicates its suitability for high-temperature soldering processes.
