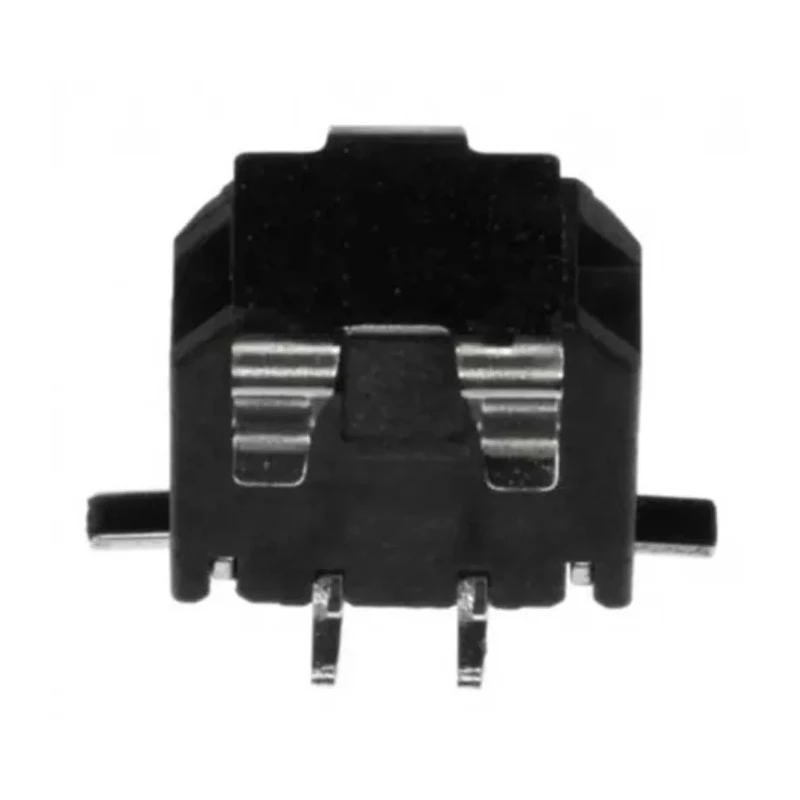

Molex Micro-Fit 3.0 Series Straight Surface PCB Header 2 Contacts 3 mm Pitch 1 Row Shrouded 43650-0224

Molex 43650-0224 Micro-Fit 3.0 Series Straight Surface PCB Header offers a robust wire-to-board connection with 2 male contacts arranged in a single row with 3 mm pitch. Designed for high reliability, this connector can carry currents up to 5A while maintaining a compact size.

The housing is constructed from high temperature UL 94V-0 liquid crystal polymer, enabling it to withstand temperatures up to 265°C during IR reflow soldering processes. Positive latching via a locking ramp on the housing secures the mating connection and prevents accidental releases.

Surface mount style features solder tabs for enhanced retention on printed circuit boards. The contacts are made of brass with tin plating to ensure optimal conductive performance. The fully isolated dual beam terminals reduce the risk of arcing, enhancing operational safety.

This connector operates reliably across a temperature range from -40°C minimum to 105°C maximum, making it suitable for diverse industrial, telecommunications, medical, consumer electronics, and data communications applications.

Typical application areas include military Commercial Off The Shelf (COTS) equipment, solar power systems, consumer appliances such as dryers and freezers, telecommunications hardware, medical instruments, gaming terminals, and server routers.

Compact 3.0 mm pitch wire-to-board connector for low to mid power applications. High current capacity of 5A in a small footprint. Housing made of high temperature thermoplastic material. Positive latching housing ensures secure mating and prevents accidental disconnection.

Solder tabs for stable surface mount on PCB during reflow soldering. Contact housing fully isolates terminals to reduce arcing risks. Operating temperature range from -40°C to 105°C suitable for harsh environments. Connector contact material is brass with tin plating for reliable conductivity.

Voltage rating of 250V for versatile power distribution solutions.

This Molex Micro-Fit 3.0 series PCB header is ideal for industrial, electronic, telecommunications, and medical applications requiring compact, high reliability power connections. Browse more PCB Headers and Electronics Components in EnvMart for your project needs.
