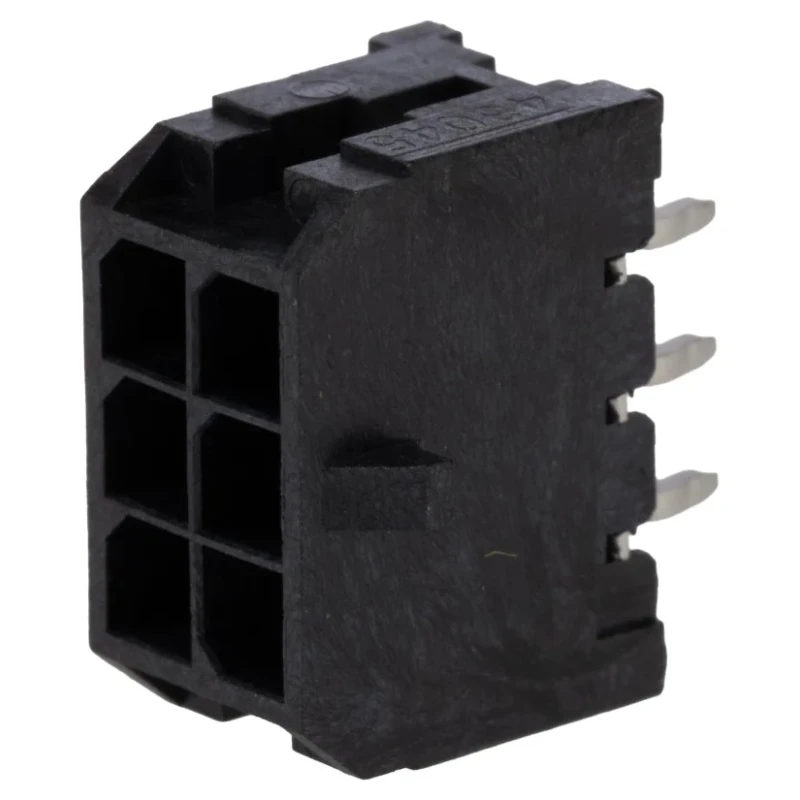

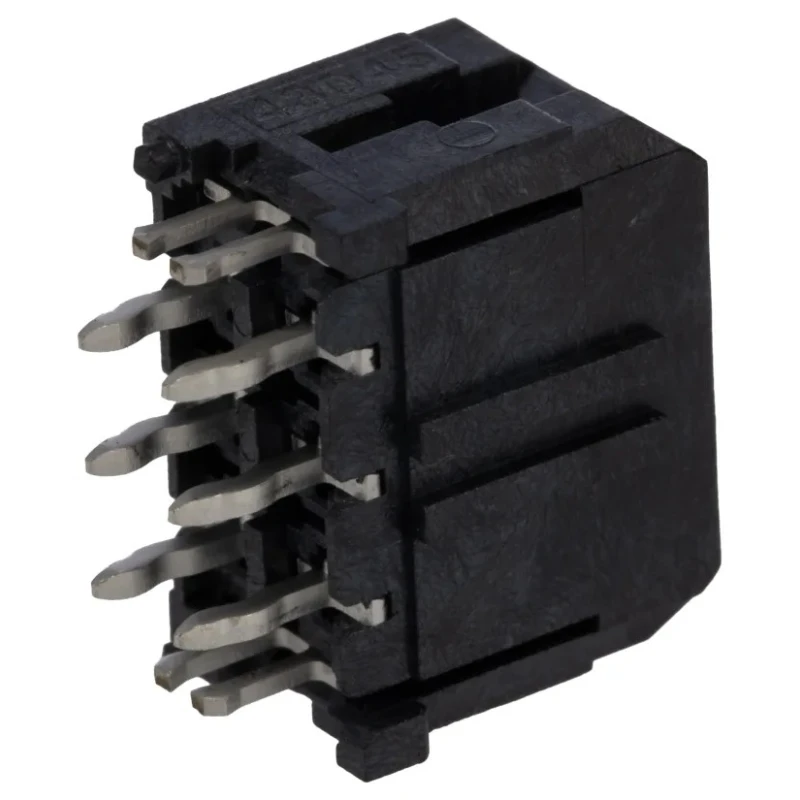

Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header, 6 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-0625
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Features a shrouded design for enhanced connection stability.
- 6 contacts arranged in 2 rows with 3 mm pitch ensure reliable signal integrity.
- Gold-plated brass contacts minimize resistance and improve conductivity.
- Rated for 5A current and 250V voltage for high-performance applications.
- Constructed of high temperature thermoplastic housing suitable for up to 125°C operation.
- Supports operating temperatures from -40°C to 125°C for diverse environments.
- Designed for through hole mounting with straight orientation.
- Press-fit metal retention clip secures the header on the PCB firmly.
Product Description
Molex 43045-0625 Micro-Fit 3.0 Series straight through hole PCB header with 6 contacts and 3 mm pitch is designed for robust wire-to-board connections in demanding applications. Featuring a shrouded two-row configuration, this connector ensures secure mating and excellent durability.
Constructed with a high temperature thermoplastic housing and gold-plated brass contacts, it provides excellent electrical conductivity and corrosion resistance. The header supports 5A current and 250V voltage ratings, suitable for power and signal transmission in modern industrial and electronic systems.
This PCB Header operates reliably across a wide temperature range from -40°C to 125°C and is compatible with lead-free soldering processes. It includes a press-fit metal retention clip to secure the connector firmly to the PCB during operation.
The connector is rated for up to 30 mating cycles, ensuring dependable performance over multiple assembly and maintenance operations. Its shrouded design minimizes potential damage and enhances mechanical stability.
Applications include use in automation systems requiring high-current connectors, industrial machinery electronics, household appliance PCBs, and power electronics assemblies. This versatile component meets the quality demands of safety-critical environments and glow wire compliance.
Shrouded design for improved connection stability and durability. High current rating of 5A suitable for power applications. Gold plating reduces contact resistance for efficient conductivity. Wide operating temperature range from -40°C to 125°C.
Straight orientation for through hole mounting on PCBs. Press-fit metal retention clip secures placement on PCB. Supports lead-free soldering processes. Rated for 30 mating cycles for reliable usage. Constructed from high temperature thermoplastic housing and brass contacts.
Ideal for industrial, automation, household appliance, and power electronic applications. Discover more high-quality PCB connectors and headers at EnvMart, tailored for industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header is rated for a voltage of 250V, making it suitable for various power applications.
This model features 6 contacts arranged in 2 rows, with a pitch of 3 mm.
It is rated for a maximum current of 5A, suitable for high-performance applications.
The housing is made from high temperature thermoplastic, and the contacts are constructed from brass with gold plating for improved conductivity.
It operates reliably within a temperature range of -40°C to 125°C, accommodating diverse environmental conditions.
This connector is designed for through hole mounting with a straight orientation, ensuring secure placement on PCBs.
The termination type for this model is solder, which is commonly used in PCB applications.
Yes, it is compatible with lead-free soldering processes, making it suitable for modern manufacturing standards.
The shrouded design of this PCB header enhances connection stability and minimizes potential damage during operation.
This model is rated for up to 30 mating cycles, ensuring reliable performance over multiple assembly and maintenance operations.
It is ideal for use in automation systems, industrial machinery electronics, household appliance PCBs, and power electronics assemblies.
The country of origin for this PCB header is India.
