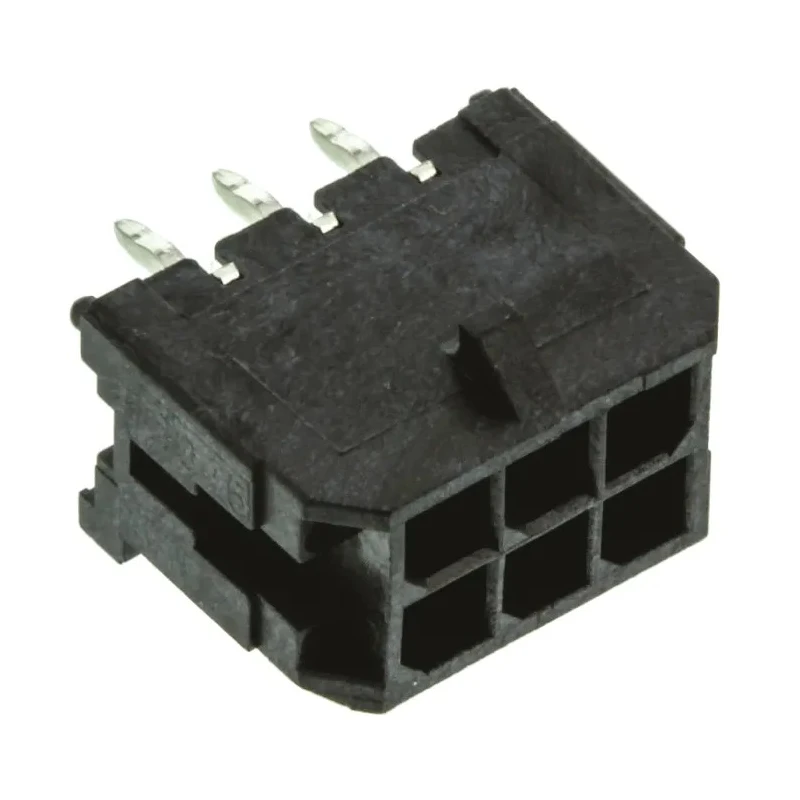

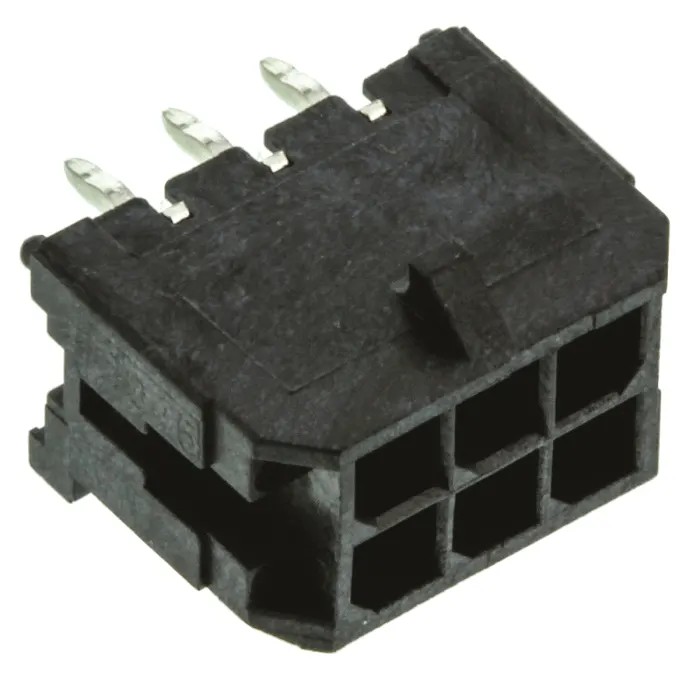

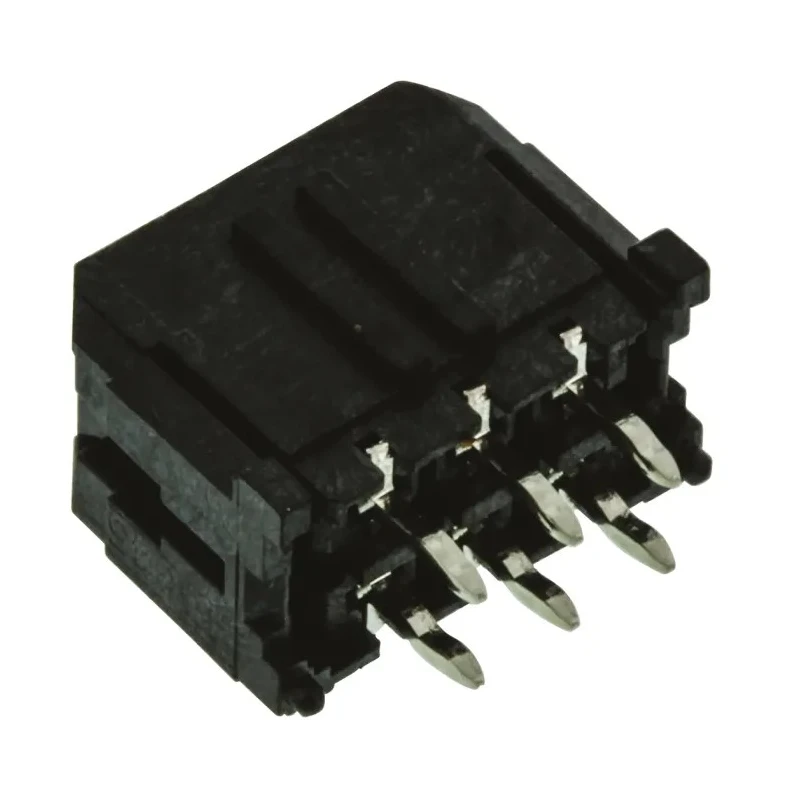

Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header 6 Contacts 3mm Pitch 2 Row Shrouded 43045-0613
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Supports up to 5A current carrying capacity for reliable power distribution.
- High temperature thermoplastic housing suitable for IR reflow soldering up to 265°C.
- Features positive latching with locking ramp for secure connection.
- Brass contacts plated with gold provide excellent conductivity and durability.
- Through hole mounting compatible with SMT processes for cost-effective PCB assembly.
- Incorporates PCB polarizing pegs for alignment and positioning during installation.
- Operating temperature range from -40°C to 125°C ensures versatility across applications.
- Dual beam fully isolated terminals reduce arcing and improve electrical performance.
Product Description
Molex 43045-0613 Micro-Fit 3.0 Series Straight Through Hole PCB Header is a 6-contact dual-row connector with a 3 mm pitch and shrouded design, engineered for compact power distribution and wire-to-board connectivity.
The connector housing is made of high temperature UL 94V-0 Liquid Crystal Polymer, capable of withstanding reflow soldering temperatures of up to 265°C. This makes it suitable for automated PCB assembly processes including SMT compatible through hole mounting.
Its brass contacts are plated with gold to ensure excellent electrical conductivity and corrosion resistance. The connector features positive latching via a locking ramp on the housing, providing a secure mating connection to prevent accidental disconnections in industrial, military, or consumer equipment environments.
The design includes PCB polarizing pegs for easy positioning and alignment on circuit boards. Additionally, kinked solder legs are provided in variants for extra PCB retention strength.
Operating temperature ranges from -40°C to 125°C, making it suitable for demanding applications such as solar power systems, data communications infrastructure, medical devices, and telecommunications equipment. The connector can reliably carry currents up to 5A at 250V.
Compact wire-to-board dual row 6-contact connector. Gold plated brass contacts for reliable conductivity. High temperature resistant housing for IR reflow soldering. Positive latching with locking ramp ensures secure connection.
Polarizing pegs and kinked solder legs assist PCB mounting and retention. Supports a broad range of industrial, military, and commercial applications. Explore more Molex products and other PCB connector solutions in the Electronics Components category at EnvMart for your industrial and manufacturing needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current carrying capacity of up to 5A, making it suitable for reliable power distribution.
The voltage rating for this connector is 250V, ensuring it can handle various electrical applications.
The housing is made from high temperature thermoplastic, while the contacts are brass plated with gold for excellent conductivity.
It operates within a temperature range of -40°C to 125°C, allowing for versatility across different applications.
This unit features through hole mounting, which is compatible with SMT processes for cost-effective PCB assembly.
The termination type for this model is solder, which is common for secure electrical connections.
Yes, it includes positive latching with a locking ramp to ensure a secure connection and prevent accidental disconnections.
The pitch of this connector is 3mm, which is standard for many PCB applications.
This model has 6 contacts, arranged in a dual-row configuration for compact connectivity.
Yes, it incorporates PCB polarizing pegs that assist with alignment and positioning during installation.
It utilizes a wire-to-board connector system, suitable for various electronic applications.
The country of origin for this model is India, indicating its manufacturing location.
