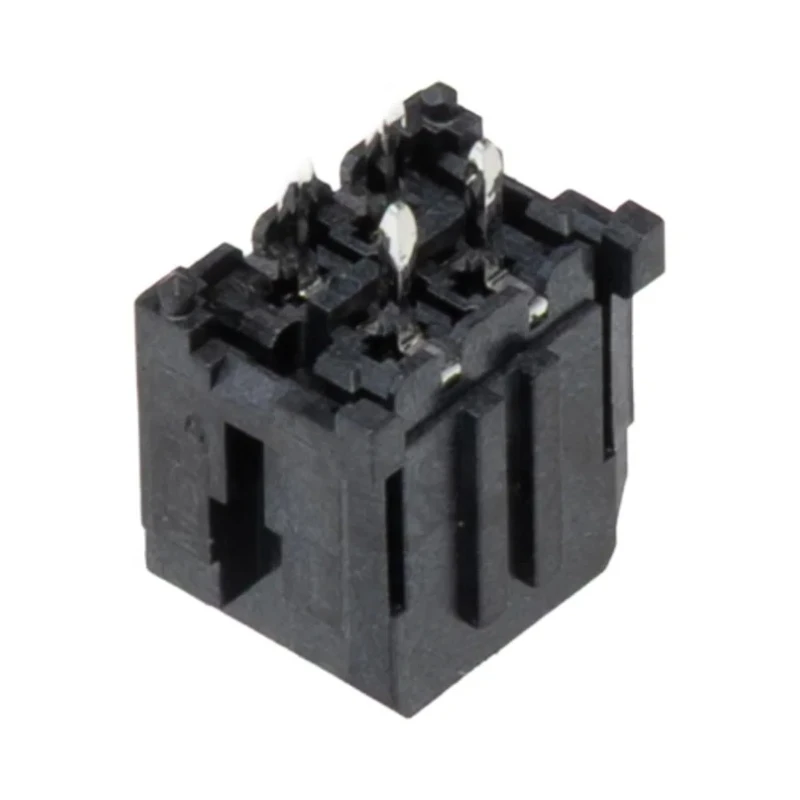

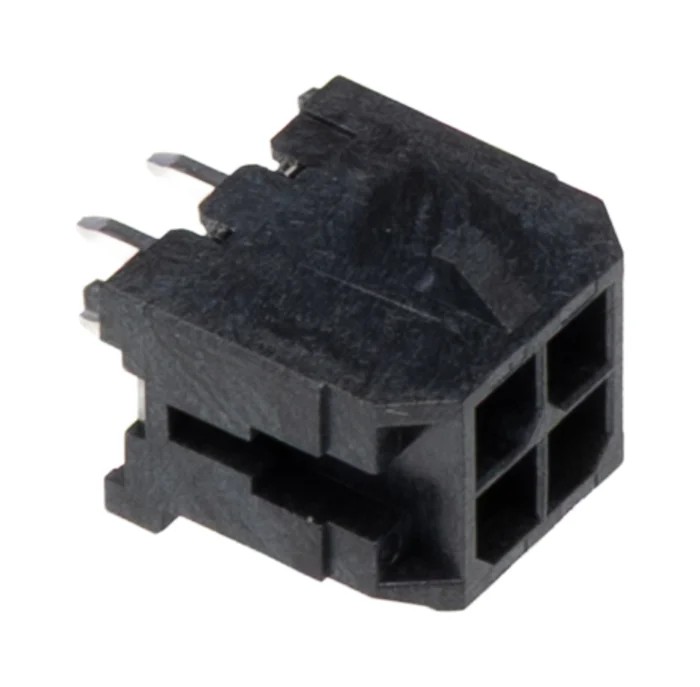

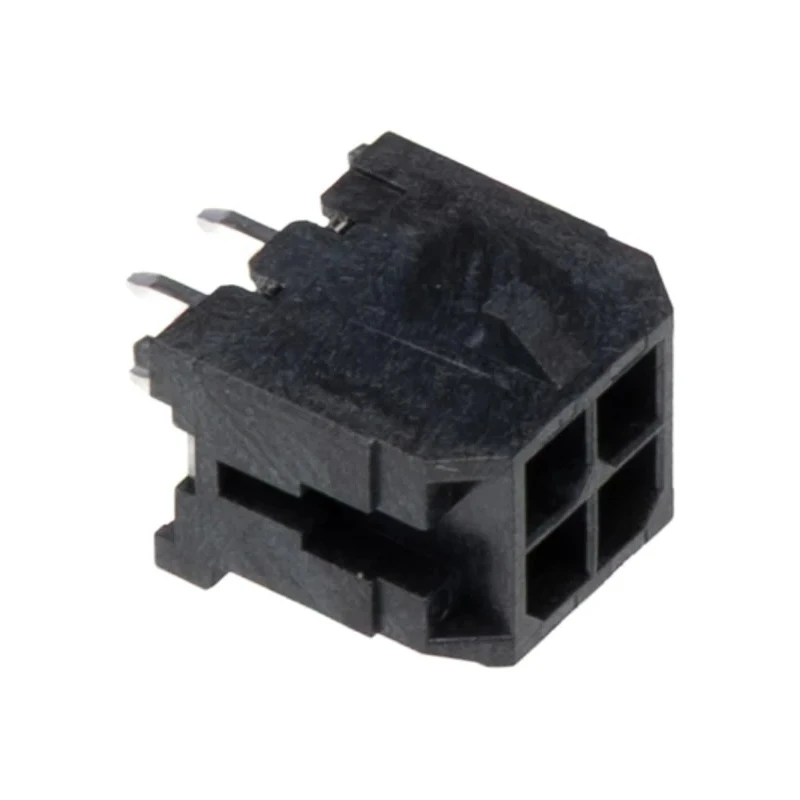

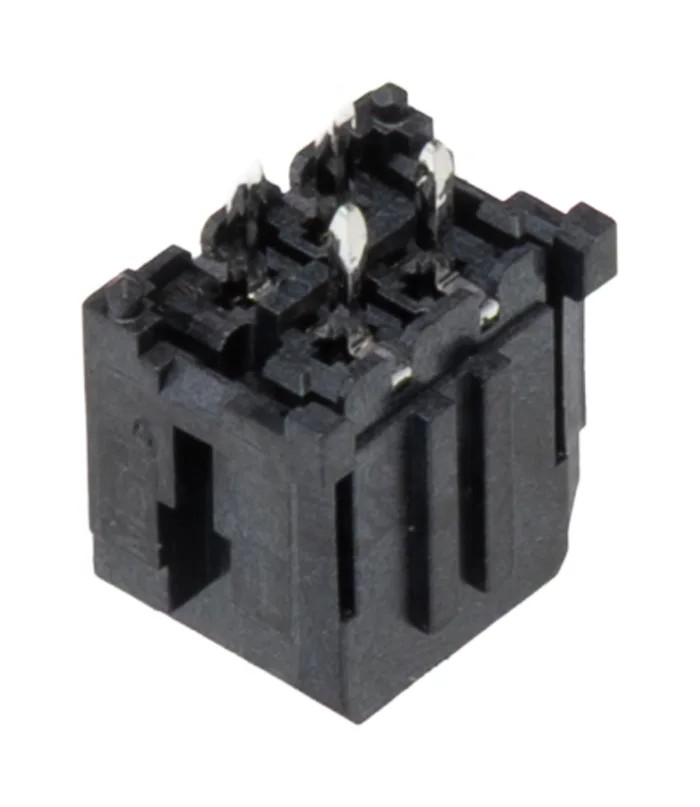

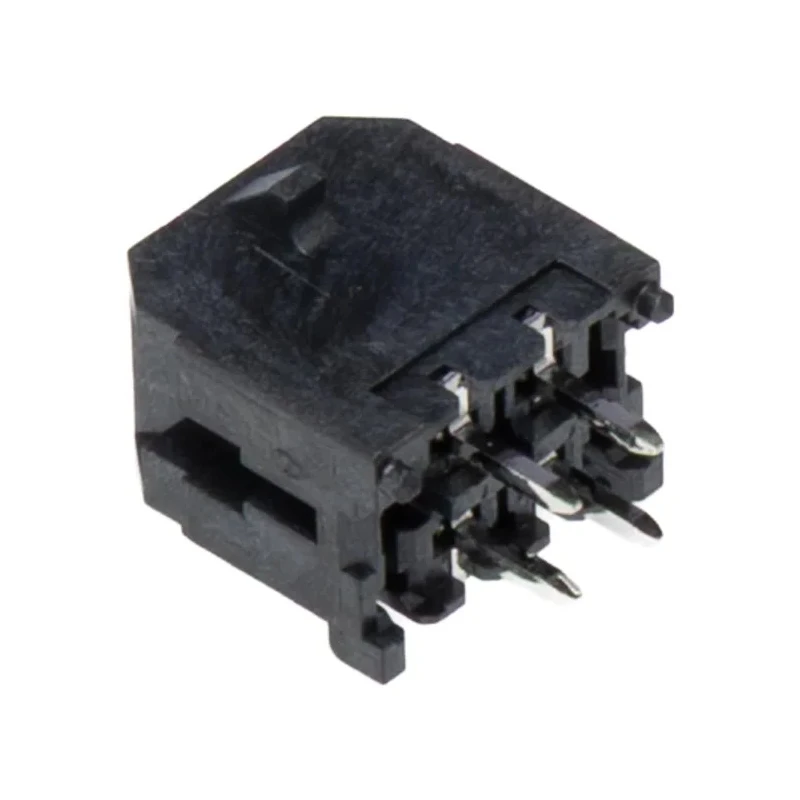

Molex Micro-Fit 3.0 Series Vertical Through Hole PCB Header, 4 Contacts, 3 mm Pitch, 2 Row, Shrouded, 8.5A 43045-0427
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 8.5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- The connector features 4 contacts with a 3 mm pitch for compact applications.
- Supports a maximum current rating of 8.5A suitable for power applications.
- Constructed with thermoplastic housing and brass contacts plated with tin for enhanced durability.
- Designed for through hole solder termination ensuring secure mechanical and electrical connection.
- Operates reliably between -40°C and 105°C for versatile industrial usage.
- Vertical orientation aids integration into compact PCB layouts.
- The shrouded design prevents accidental disconnection enhancing connection stability.
- Ideal for applications in industrial machinery, telecommunications, and lighting systems.
Product Description
Molex 43045-0427 Micro-Fit 3.0 Series Vertical Through Hole PCB Header is engineered for dependable wire-to-board electrical connections, supporting up to 8.5A current at 600V. The connector features a 4-contact dual-row layout with a 3 mm pitch, housed in thermoplastic material and equipped with brass contacts plated in tin for reliable conductivity and corrosion resistance.
The vertical orientation of the header simplifies integration into compact electronic assemblies while the through-hole solder termination method ensures robust mechanical stability. Its shrouded design enhances connector protection, reducing the risk of accidental disconnection in demanding operational environments.
This PCB header operates within a wide temperature range from -40°C to 105°C, meeting rigorous industrial requirements. It is glow wire compliant, ensuring fire safety suitable for automation, industrial machinery, telecommunications equipment, and lighting control systems.
The connector’s construction and design cater to applications needing stable and high current connections in compact spaces. It is a practical choice for electronic assemblies demanding reliable performance and safety compliance.
The connector supports an 8.5A current rating for robust power handling. Thermoplastic housing material provides durability and insulation. Brass contact material with tin plating offers excellent conductivity and longevity.
Shrouded dual-row vertical header layout improves connection security. Through hole solder termination enhances mechanical and electrical reliability. Operates reliably from -40°C to 105°C for versatile use. Glow wire compliant for heat and fire safety standards.
Suitable for industrial, telecommunications, and lighting applications.
Available as a pack of multiple units ready for integration into production environments. Explore more PCB Headers and Connectors for diverse electronic component assembly solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current rating of 8.5A, making it suitable for power applications.
The contacts in this model have a pitch of 3 mm, allowing for compact arrangements in electronic assemblies.
It operates reliably between -40°C and 105°C, accommodating a wide range of industrial applications.
This model utilizes through hole solder termination, ensuring a secure mechanical and electrical connection.
The housing is made from thermoplastic material, while the contacts are brass plated with tin for enhanced conductivity and durability.
This connector features 4 contacts arranged in a dual-row layout, providing efficient connectivity.
The PCB header is rated for a voltage of 600V, suitable for various electrical applications.
Yes, it is glow wire compliant, ensuring it meets fire safety standards suitable for industrial and automation applications.
This model has a vertical orientation, which aids in integration into compact PCB layouts.
It supports a wire-to-board connector system, facilitating reliable electrical connections.
The country of origin for this connector is India.
It is ideal for applications in industrial machinery, telecommunications, and lighting systems, providing stable connections in demanding environments.
