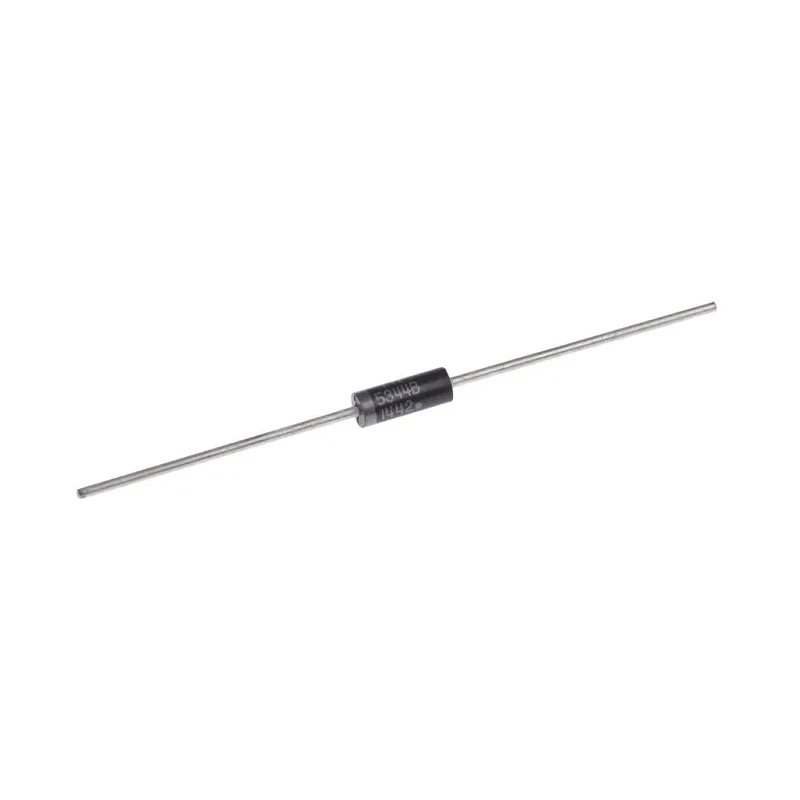

onsemi 8.2 V 5 W Through Hole 2-Pin DO-15 Zener Diode 1N5344BG
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5344BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 150mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 8.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1.5Ω |
Key Features
- Nominal Zener voltage of 8.2 V with ±5% tolerance.
- Maximum power dissipation of 5 W for reliable voltage regulation.
- Single diode configuration with 2 pins in DO-15 package.
- Operating temperature range from -65°C to 200°C.
- Low maximum reverse leakage current of 10 μA ensuring efficiency.
- Thermosetting plastic molded package with corrosion-resistant surfaces.
- Test current of 150 mA for voltage regulation stability.
- Compact dimensions with 8.89 mm length and 3.68 mm height.
Product Description
onsemi 1N5344BG is an 8.2 V Zener diode designed for voltage regulation applications in industrial electronic circuits. It features a single diode configuration housed in a through-hole DO-15 package with 2 pins, ensuring ease of mounting and integration.
This device can dissipate power up to 5 W, making it suitable for robust voltage regulation where stable and precise voltage references are needed. The voltage tolerance is ±5%, providing reliable operation within specified limits.
The Zener diode is manufactured using Surmetic™ 40 axial-leaded technology and is enclosed in a void-free transfer-molded thermosetting plastic package. This construction offers enhanced protection against environmental factors and corrosion, ensuring long-term reliability in demanding industrial conditions.
With an operating temperature range spanning from -65°C to 200°C, this diode can be employed in applications requiring wide thermal tolerance. Its test current of 150 mA and low maximum reverse leakage current of 10 μA contribute to its efficient performance as a voltage regulator.
The compact size, with a length of 8.89 mm and height of 3.68 mm, facilitates its use on densely packed circuit boards while maintaining high electrical reliability. Nominal Zener voltage of 8.2 V with ±5% tolerance. Maximum power dissipation of 5 W for reliable voltage regulation.
Single diode configuration with 2 pins in DO-15 package. Operating temperature range from -65°C to 200°C. Low maximum reverse leakage current of 10 μA ensuring efficiency. Thermosetting plastic molded package with corrosion-resistant surfaces.
Test current of 150 mA for voltage regulation stability. Compact dimensions with 8.89 mm length and 3.68 mm height. Ideal for industrial electronic circuits requiring stable voltage regulation.
This onsemi Zener Diode belongs to the 1N53 series, widely used in industrial electronic applications for voltage regulation tasks. Its durable packaging and superior silicon-oxide passivated junctions enhance performance and longevity.
Discover more products in the Semiconductor category at EnvMart to find the most suitable components for your electronic designs and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 8.2 V with a tolerance of ±5%.
This model can dissipate a maximum power of 5 W, making it suitable for voltage regulation applications.
The operating temperature range for this diode spans from -65°C to 200°C.
It is housed in a DO-15 package and has a single diode configuration with 2 pins.
The maximum reverse leakage current is 10 μA, which contributes to its efficiency.
The test current for this model is 150 mA, ensuring stable voltage regulation.
The dimensions of this diode are 8.89 mm in length and 3.68 mm in height.
This diode is designed for voltage regulation applications in industrial electronic circuits.
The maximum Zener impedance is 1.5 Ω.
It is enclosed in a void-free transfer-molded thermosetting plastic package, providing enhanced protection against environmental factors.
The diode features superior silicon-oxide passivated junctions, enhancing performance and longevity in demanding conditions.
Yes, the 1N5344BG is designed for easy integration into various industrial electronic circuits requiring stable voltage references.
