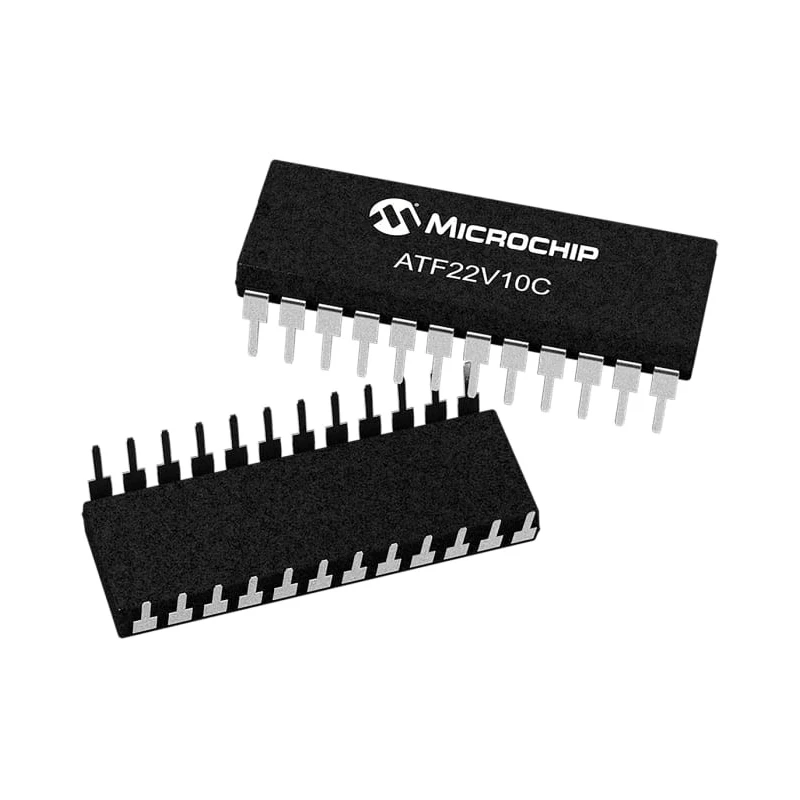

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 83.3 MHz Through Hole PDIP Package ATF22V10C

Microchip ATF22V10C is a high-performance simple programmable logic device designed for flexible logic implementation with 350 gates, 10 macro cells, and 10 user I/O pins. This device supports in-system programmability allowing reconfiguration after installation, optimizing design and production workflows.

It operates at a maximum internal frequency of 83.3 MHz with a propagation delay time of 15 nanoseconds, suitable for medium-speed digital logic applications.

The device is supplied in a through hole PDIP package comprising 24 pins, facilitating easy manual assembly and prototyping. The voltage supply ranges from 4.5V to 5V, supporting standard TTL and CMOS logic level inputs and outputs.

Engineered for industry standards compliance, it meets RoHS environmental regulations ensuring safe disposal and reduced toxic elements. Its operating temperature range of -40°C to 85°C allows applications in harsh industrial conditions.

Physically, the device measures 32.13mm in length and 4.95mm in height, making it compact for circuit board layout efficiency.

This programmable logic device is widely used for electronic design automation, embedded systems development, industrial equipment control, and other semiconductor component applications where flexible digital logic is required.

The device supports in-system programmability and re-programmability for flexible design integration. It features a maximum supply voltage of 5V and minimum supply voltage of 4.5V. Designed with 24 pins and housed in a PDIP package for easy soldering and prototyping.

Operates in a wide temperature range from -40°C to 85°C suitable for various industrial environments. The maximum propagation delay time is 15 nanoseconds, enabling reliable high-speed switching. Compliant with RoHS standards ensuring environmental safety and quality.

The compact physical dimensions include a height of 4.95mm and length of 32.13mm. Ideal for industrial, electronic component manufacturing, embedded systems, and prototyping applications. Discover more products in the Programmable Logic ICs category at EnvMart for your industrial automation and electronic design needs.
