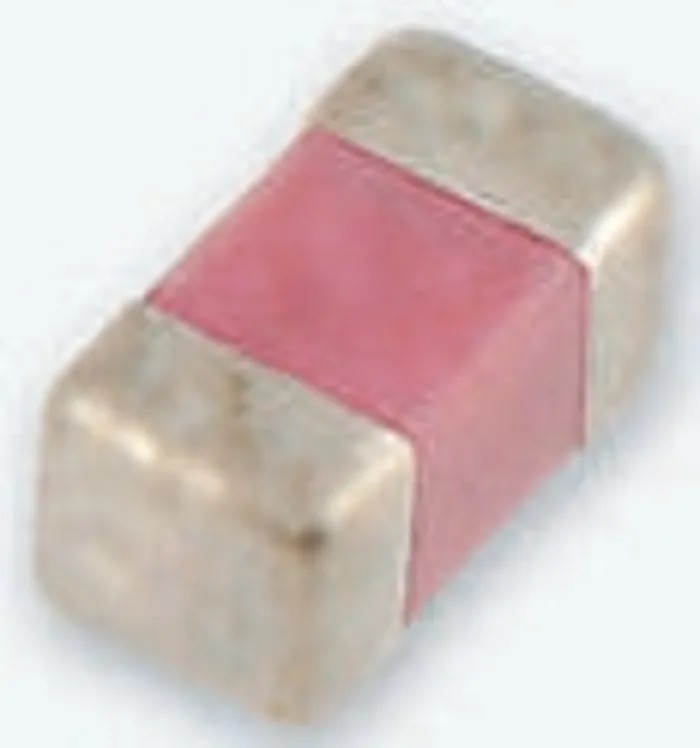

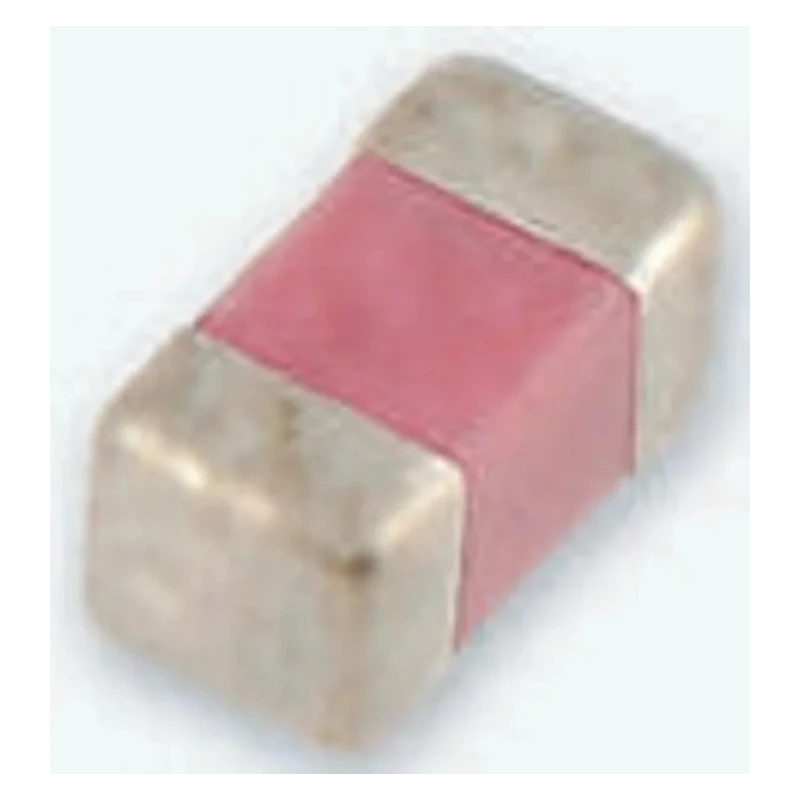

Yageo 10 nF 25V dc ±10% Multilayer Ceramic Capacitor, Surface Mount, 0603 CC0603KRX7R8BB103

Yageo CC0603KRX7R8BB103 is a 10 nF multilayer ceramic capacitor designed for surface mount applications requiring a reliable, compact passive component. Operating at a voltage of 25V dc and a capacitance tolerance of ±10%, this capacitor employs X7R dielectric material known for its temperature stability over a range from -55°C up to 125°C, making it suitable for diverse industrial and consumer electronics environments.

The capacitor features a 0603 package size with a length of 1.6 mm, width of 0.8 mm, and height of 0.8 mm, facilitating dense PCB layouts. It uses a stacked construction with interleaved metal electrodes terminated with a nickel barrier and tin plating, ensuring strong electrical performance and mechanical robustness.

Packaged on a paper/PE tape reel, it supports automated pick-and-place assembly lines common in electronics manufacturing. This product meets stringent quality and environmental standards including RoHS compliance and IEC 60384-1, IEC 60384-21, and IEC 60384-22 certifications.

Applications for this multilayer ceramic capacitor span across automotive electronics, industrial controls, telecommunications, and general consumer electronics due to its stable capacitance and compact footprint.

Capacitance of 10 nF suitable for general purpose electronic applications. Voltage rating of 25V dc ensures reliable operation in low voltage circuits. Surface mount device in compact 0603 package for space-saving PCB design.

X7R dielectric material provides temperature stability from -55°C to 125°C. Constructed with stacked electrodes and nickel barrier end termination for durability. Packaged on a paper/PE tape reel for efficient automated assembly.

Compliance with RoHS and IEC 60384-1/21/22 standards ensures environmental and quality standards.

This Yageo MLCC is an ideal component for integration in industrial, automotive, laboratory, telecommunications, and manufacturing electronic circuits where high reliability and compact design are prerequisites.
