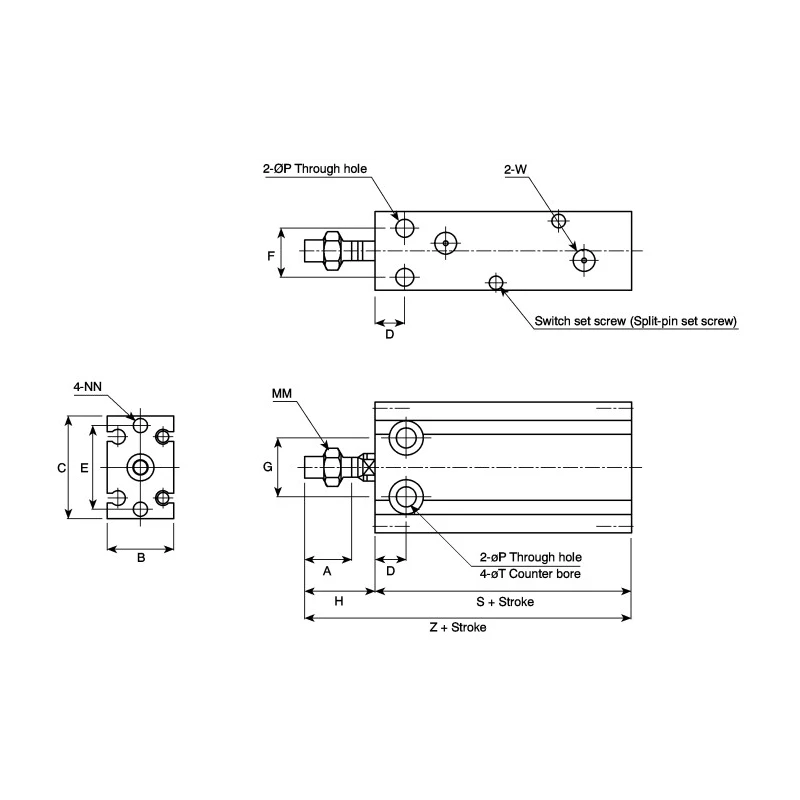

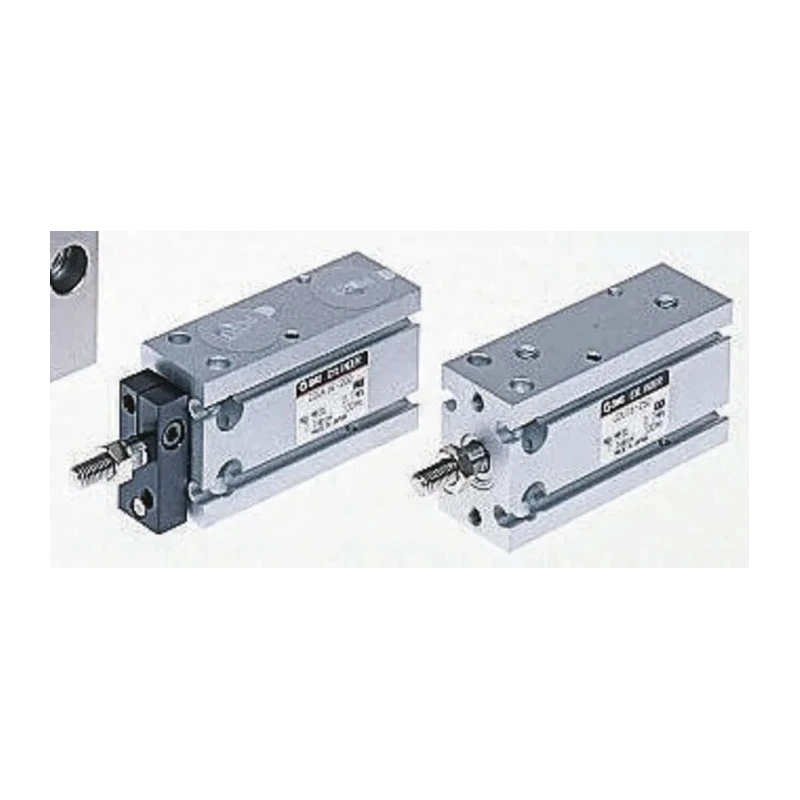

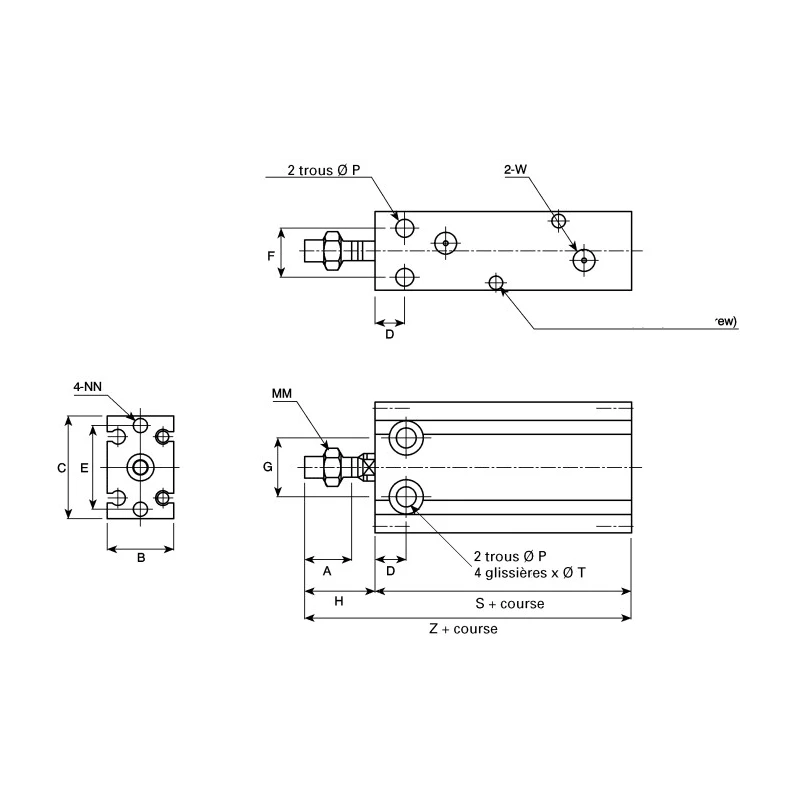

SMC 20 mm Pneumatic Piston Rod Cylinder CDU Series Double Acting Rubber Cushion Aluminium Alloy Body CDUK16-20D
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 76mm |
| Model | CDUK16-20D |
| Series | CDU |
| Maximum Operating Temperature | 70°C |
| Stroke Length | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Rubber |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| SMC 30 mm Pneumatic Piston Rod Cylinder - CDU Series, Double Acting ActingBrand | SMC |
Key Features
- This cylinder uses double acting pneumatic power for precise control of piston movement.
- Constructed from durable aluminium alloy offering strength and corrosion resistance.
- Equipped with rubber cushioning on both ends to reduce impact noise and extend cylinder life.
- Features a single male piston rod with metric thread for easy mounting and integration.
- Designed for a maximum operating temperature of up to 70°C, suitable for industrial environments.
- Stroke length is 20 mm with overall cylinder length of 76 mm ensuring compact installation.
- Piston speed can reach a maximum of 500 mm/s for efficient operation.
- Does not require lubrication, reducing maintenance requirements.
Product Description
SMC CDUK16-20D Pneumatic Piston Rod Cylinder belongs to the CDU series, featuring a 20 mm stroke length and a 76 mm total body length. This double acting cylinder uses pneumatic pressure to control piston movement in both directions, making it well-suited for precise industrial automation tasks.
The cylinder body is made from lightweight and robust aluminium alloy, providing excellent resistance to corrosion and mechanical wear. It includes rubber cushioning on both ends to minimize operational noise and mechanical shock during piston reversal, enhancing the durability of the unit.
Specifically engineered with a single male piston rod featuring metric threading, the cylinder facilitates straightforward mounting and integration into existing pneumatic systems. Its operating temperature range supports up to 70°C, allowing usage in various industrial environments.
The CU series design emphasizes space-saving and direct mounting capabilities, with the CDU variant incorporating a rectangular shape for precise alignment and installation. The magnetic piston inside enables optional position sensing when combined with auto-switch accessories.
The cylinder operates efficiently without the need for external lubrication, which reduces maintenance costs and downtime. Maximum piston speed can reach up to 500 mm/s, making it suitable for rapid cycling pneumatic applications.
This model is primarily used in automation, manufacturing, fluid power, and laboratory equipment. Rubber cushioning improves performance by dampening shocks at the end of piston strokes. Compact size ensures ease of installation in space-constrained assemblies.
The aluminium alloy provides a strong yet lightweight structure ideal for mobile and fixed machinery. Standard M5 porting allows easy integration with common pneumatic tubing and fittings. Set yourself up for efficient pneumatic actuation with this SMC model, which offers reliable operation and durability for a wide range of industrial tasks.
Explore additional Pneumatic Cylinders and components in the SMC CDU series at EnvMart to meet various automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this cylinder is 20 mm.
It can operate at a maximum temperature of 70°C.
The body is constructed from aluminium alloy, providing strength and corrosion resistance.
The maximum piston speed can reach up to 500 mm/s.
It features rubber cushioning on both ends to reduce impact noise and extend cylinder life.
It has a single male piston rod with a metric thread for easy mounting and integration.
The overall length of the cylinder is 76 mm.
No, it operates efficiently without the need for external lubrication, reducing maintenance requirements.
It is suitable for automation, manufacturing, fluid power, and laboratory equipment applications.
This model operates as a double acting cylinder, allowing control of piston movement in both directions.
The piston rod is configured with a male thread and is compatible with metric standards.
It belongs to the CDU series of pneumatic cylinders.
