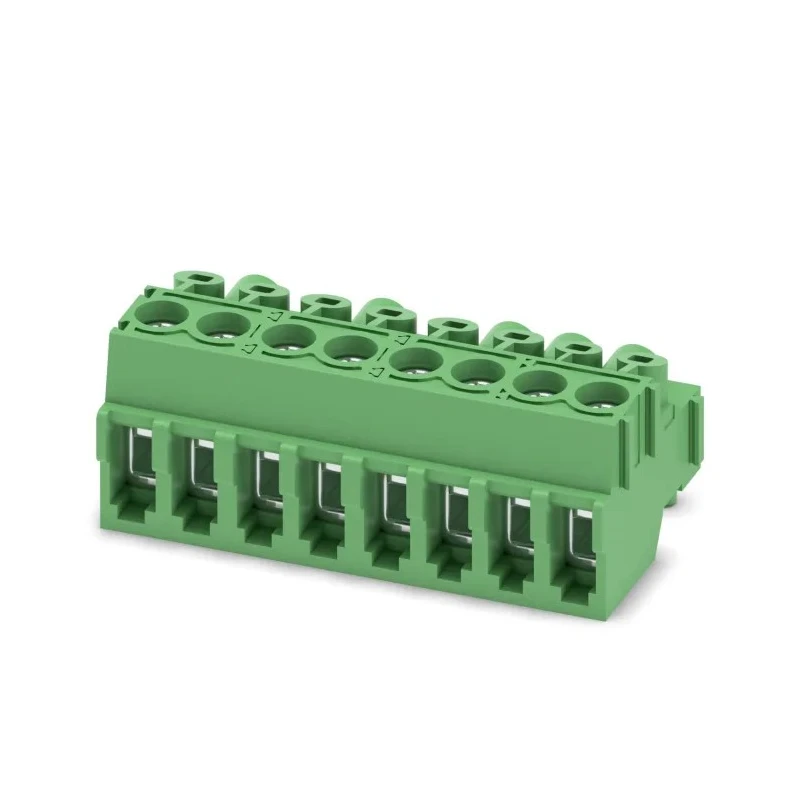

Phoenix Contact PT 1.5/8-PVH-3.5 Series Pluggable Terminal Block, 8-Contact, 3.5 mm Pitch, 1 Row, 8A Current, 160V 1984073
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Horizontal |
| Current | 8A |
| Length | 11mm |
| Model | 1984073 |
| Depth | 11mm |
| Width | 28mm |
| Housing Material | Polyamide |
| Series | PT 1.5/8-PVH-3.5 |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 8 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Screw |
Key Features
- Constructed with polyamide housing for durability and insulation.
- Designed for wire sizes ranging from 0.2 mm² to 1.5 mm² (26 AWG to 16 AWG).
- Supports a current rating of 8A and voltage rating of 160V.
- Features screw wire connection method ensuring stable and secure contacts.
- Horizontal orientation for versatile PCB applications.
- Green color housing for clear visual identification.
- Single row terminal block with 8 contact points suitable for various industrial and electronic applications.
Product Description
Phoenix Contact 1984073 is a high-quality PT 1.5/8-PVH-3.5 series pluggable terminal block designed for secure wire termination and reliable electrical connections. This component features 8 contacts arranged in 1 row with a 3.5 mm pitch, providing compact and efficient PCB wiring solutions.
The terminal block housing is made of robust polyamide, enhancing electrical insulation and mechanical durability. It supports wire sizes from 0.2 mm² to 1.5 mm² (26 AWG to 16 AWG) and operates safely at a current of 8A and voltage of 160V.
The screw-type wire connection method ensures solid and maintenance-free contact. Its horizontal orientation and green color housing make it suitable for varied PCB mounting applications. The compact dimensions of 28 mm width, 11 mm length, and 11 mm depth allow space-efficient designs.
This pluggable terminal block is ideal for industrial, electronic, power connector, and control gear applications, providing reliable connectivity in circuits. It complies with international standards and is manufactured in China.
Durable polyamide housing ensures excellent electrical insulation. Wide wire size compatibility accommodates 0.2 to 1.5 mm² wires. Screw connection method allows strong and reliable contacts. Compact form factor suits high-density PCB layouts.
Operates at 8A current and 160V voltage rating. Standard 3.5 mm pitch enables compatibility with common PCB designs. Green color coded for easy identification in assemblies. Single row design with 8 contacts supports diverse wiring needs.
Explore more electronic components and pluggable terminal blocks for industrial and electrical systems on EnvMart.
Explore more products in our Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 8A and a voltage rating of 160V.
This terminal block accommodates wire sizes ranging from 0.2 mm² to 1.5 mm² (26 AWG to 16 AWG).
The contacts are arranged with a pitch of 3.5 mm.
It features a horizontal orientation, suitable for various PCB applications.
It utilizes a screw connection method for secure and stable contacts.
The dimensions are 28 mm in width, 11 mm in length, and 11 mm in depth.
This model features 8 contacts arranged in a single row.
The housing is constructed from polyamide, providing electrical insulation and mechanical durability.
Yes, its compact form factor makes it suitable for high-density PCB layouts.
It is manufactured in China.
The housing is green, allowing for clear visual identification in assemblies.
This model is part of the PT 1.5/8-PVH-3.5 series.
