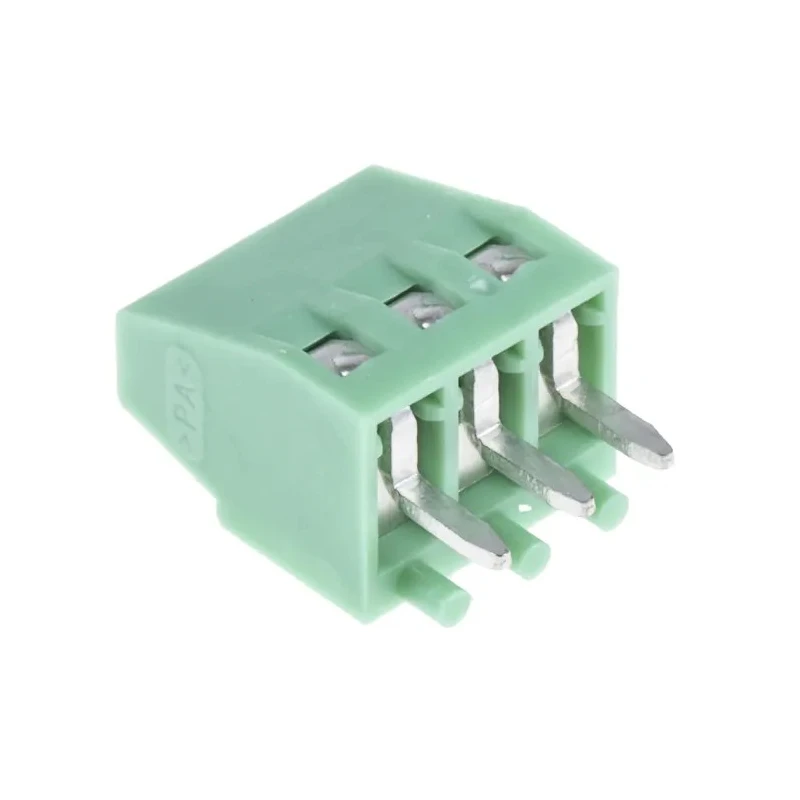

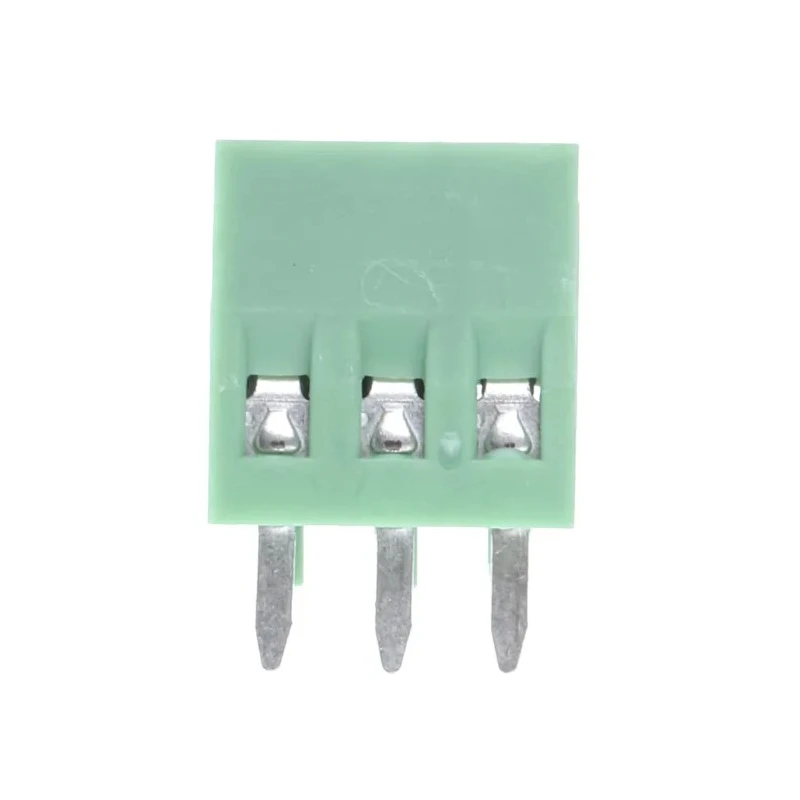

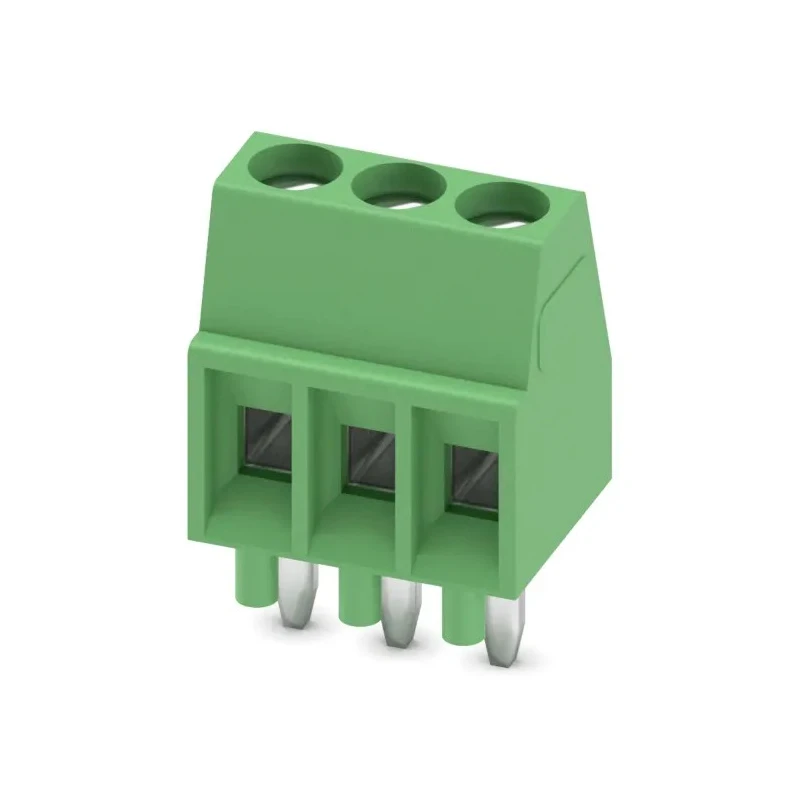

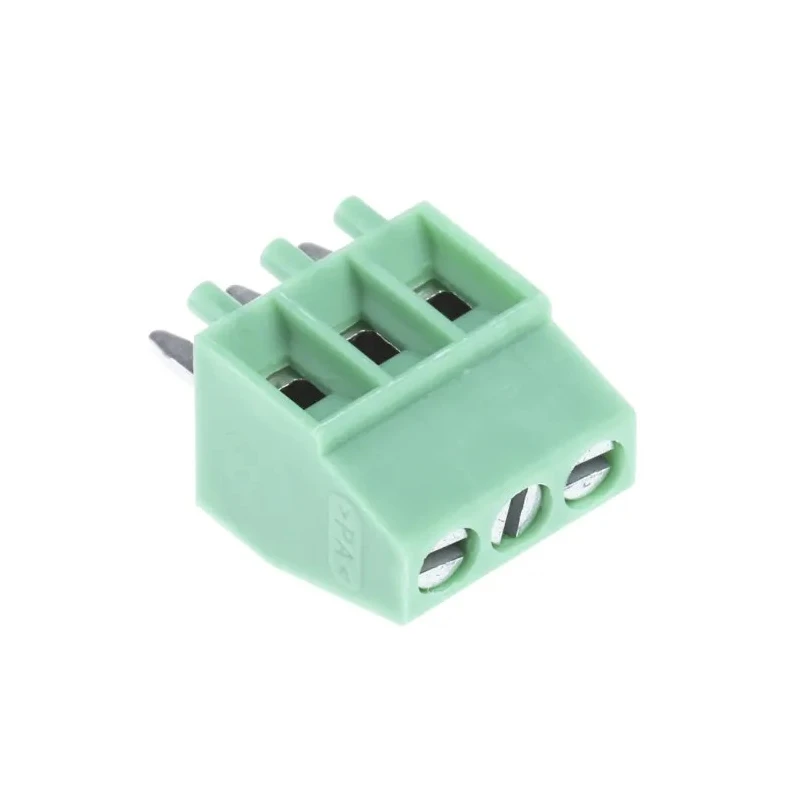

Phoenix Contact PCB Terminal Block 3-Contact 2.54 mm Pitch 1 Row Polyamide Housing Female Connector 320V 6A 1725669
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 6A |
| Length | 8.08mm |
| Model | 1725669 |
| Depth | 8.5mm |
| Width | 6.2mm |
| Housing Material | Polyamide |
| Series | MPT 0.5/3-2.54 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 20AWG |
| Wire Connection Method | Screw |
| WAGO 233 Series PCB Terminal Block, 2.54 mm Pitch, Through Hole, 2 RowBrand | WAGO |
Key Features
- The polyamide housing provides robust insulation and electrical safety.
- Supports wires from 26 AWG to 20 AWG with screw connection method ensuring secure terminations.
- Rated for 320 V voltage and 6 A current for stable power transmission.
- Compact dimensions of 8.08 mm length, 6.2 mm width, and 8.5 mm depth fit in limited PCB spaces.
- Female connector gender with straight orientation simplifies front mounting on boards.
- Durable construction suitable for telecommunications and automation electronic applications.
- Corrosion-resistant components maintain long operational reliability.
Product Description
Phoenix Contact 1725669 PCB Terminal Block is a high-quality component designed for reliable electrical connections on printed circuit boards. It features a single-row configuration with 3 contacts spaced at a 2.54 mm pitch, allowing precise wire placement and space-efficient board layout. The terminal block uses a polyamide housing that ensures excellent insulation and protects users from electric shocks during manual handling.
This model supports wire sizes ranging from 26 AWG (0.14 mm²) up to 20 AWG (0.5 mm²) and utilizes a screw connection method, providing a firm and durable grip on conductors. It offers a safe current rating of 6 A and voltage rating up to 320 V. The female connector with straight body orientation facilitates easy and quick front-facing mounting on PCBs.
With compact external dimensions measuring 8.08 mm in length, 6.2 mm in width, and 8.5 mm in depth, this terminal block is ideal for installations where space saving is critical. The robust materials and corrosion-resistant design make it suitable for use in telecommunications, data automation, and industrial control systems. This product is manufactured in Germany, assuring superior build quality.
The polyamide housing delivers reliable insulation and durability for industrial electronic setups. Screw clamp terminals secure wires firmly, preventing loosening from vibrations. Designed for 320 V voltage and 6 A current applications, ensuring stable electrical performance.
Compact size supports integration in dense PCB arrangements and automation devices. 3-contact single-row design facilitates straightforward wiring and connectivity. Straight female connectors allow easy cable insertion and maintenance.
Corrosion resistant construction enhances lifecycle and operational reliability.
This PCB Terminal Block is an excellent choice for engineers and technicians working in electronic components manufacturing, telecommunications, and power connectors industries. Browse EnvMart for more terminal blocks and related components from Phoenix Contact and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a voltage of 320 V and a current of 6 A, ensuring stable power transmission.
It supports wire sizes ranging from 26 AWG (0.14 mm²) to 20 AWG (0.5 mm²) using a screw connection method for secure terminations.
The terminal block measures 8.08 mm in length, 6.2 mm in width, and 8.5 mm in depth, making it suitable for compact PCB spaces.
This model features a straight orientation, which simplifies front mounting on printed circuit boards.
The housing is made of polyamide, providing robust insulation and electrical safety.
It has 3 contacts arranged in a single-row configuration with a 2.54 mm pitch.
It is suitable for telecommunications, data automation, and industrial control systems due to its durable construction and reliable performance.
Yes, it features corrosion-resistant components that enhance its operational reliability.
This product is manufactured in Germany, ensuring a high standard of build quality.
The connector gender is female, designed for easy cable insertion and maintenance.
This terminal block is part of the MPT 0.5/3-2.54 series.
