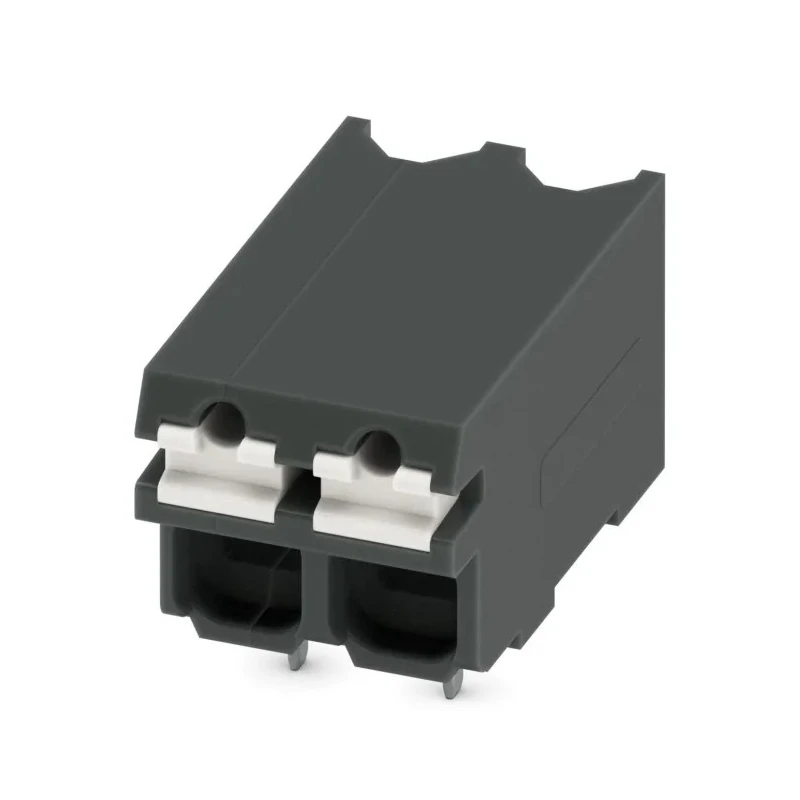

Phoenix Contact PCB Terminal Block SPT-SMD 1.5/2-H-3.81 R24, 2-Contact, 3.81 mm Pitch, Surface Mount, 320 V, 13.5 A 1824637

Phoenix Contact 1824637 SPT-SMD 1.5/2-H-3.81 R24 series PCB Terminal Block is designed for reliable electrical connections on printed circuit boards. This 2-contact terminal block offers a 3.81 mm pitch with a surface mount configuration and a current rating of 13.5 A at 320 V, making it suitable for various electronic and industrial applications.

The housing is made from liquid crystal polymer, ensuring high durability and excellent electrical insulation properties. It supports wire sizes from 0.2 mm² to 1.5 mm² (equivalent to 24 to 16 AWG), accommodating both solid and stranded conductors.

The terminal block features a spring actuation lever that allows for quick, secure, and tool-free wire insertion and removal, reducing assembly time and costs. Available in tape-on-reel packaging, it facilitates integration into automated pick-and-place and reflow soldering processes.

Mechanical anchoring pins enhance mounting stability and position accuracy on the PCB. The compact dimensions (7.81 mm length, 7.7 mm width, and 13.6 mm depth) allow space-efficient designs in electronic assemblies.

Handles currents up to 13.5 A and voltages up to 320 V. Liquid crystal polymer housing ensures long-lasting performance. Supports a wide range of wire sizes from 0.2 mm² to 1.5 mm². Spring connection method provides fast and reliable wiring.

Surface mount with horizontal orientation and anchoring pins. Suitable for industrial, electronic, and PCB manufacturing uses. Delivered in tape-on-reel format for automated assembly lines.

This Phoenix Contact terminal block is ideal for use in industrial controls, power electronics, instrumentation, and other PCB-based electrical systems. Its design ensures secure connections, ease of use, and compatibility with automated manufacturing processes. Explore more Phoenix Contact solutions and related components at EnvMart to find the perfect fit for your application.
