RS PRO 6 to 15 V ac 2 Output Through Hole PCB Transformer, 230 V ac Primary, 20 VA Power, AS/NZS 61558.1, CE, AS/NZS 504-404

RS PRO 504-404 model is a high-quality 6 to 15 V ac 2 Output Through Hole PCB Transformer designed for electronic and industrial power applications. It operates with a primary voltage of 230 V ac and provides a power rating of 20 VA. This transformer features two independent secondary outputs that can be connected in series or parallel, offering versatile voltage and current options.

Engineered with flame retardant materials rated to UL94-V0, it ensures safety and durability. The inclusion of a thermal fuse on the primary side provides reliable overload and short circuit protection, enhancing operational safety in demanding environments. The transformer is fully shrouded with varnish impregnation and constructed using double section metric bobbin technology for electrical isolation and mechanical robustness.

With an efficiency of 82%, it supports maximum operating temperatures up to 130°C and functions efficiently across standard frequencies of 50 Hz to 60 Hz. The transformer complies with international safety and quality standards including AS/NZS 61558.1, CE marking, AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6, and RoHS directives, making it suitable for industrial, commercial, and electronic manufacturing applications.

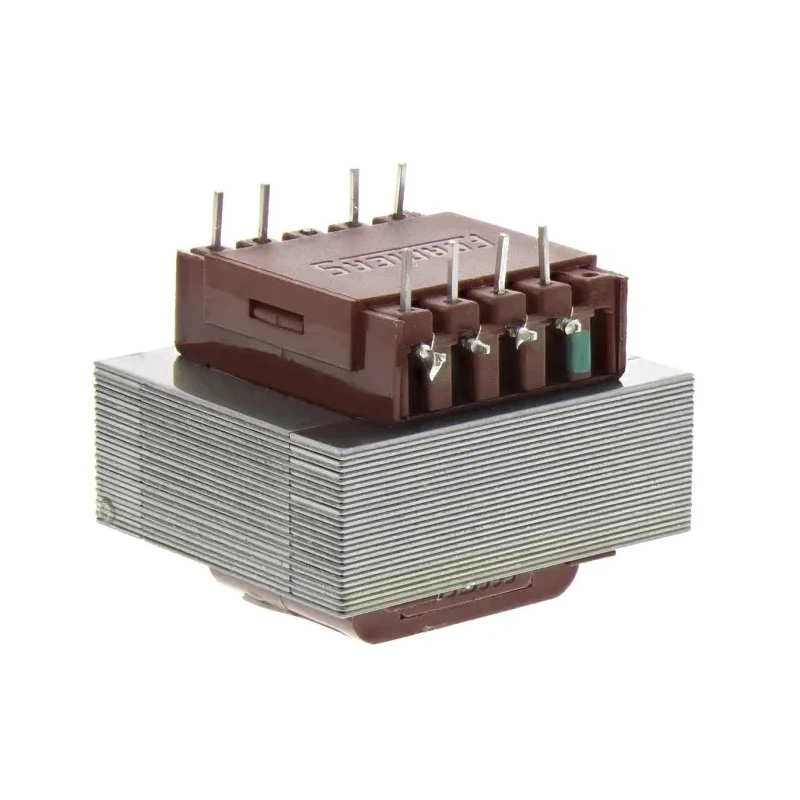

The compact dimensions - 38mm length, 35mm width, and 30mm depth - allow seamless integration onto PCB layouts through its through-hole mounting style. Extra pins on the design provide secure board mounting ensuring mechanical stability during operation. This product is made in Poland and represents reliable European manufacturing quality.

Typical applications include power supply units, control gear, instrumentation, and various industrial electronic circuits requiring safe and efficient voltage transformation. RS PRO transformers are known for their quality, reliability, and adherence to international standards, making them preferred components in professional engineering and manufacturing sectors.

This PCB transformer features a through-hole mount type for robust circuit board installation. It provides two independent AC output windings suitable for series or parallel connection. Constructed with flame retardant materials and includes a thermal fuse in the primary for overload protection.

The transformer has an efficiency of 82%, with a maximum operating temperature of 130°C. Designed and approved according to AS/NZS 61558.1, CE, AS/NZS 61558.2.6, and IEC/BS/EN 61558-2-6 standards. Compact size with dimensions of 38mm length, 35mm width, and 30mm depth ensures easy PCB integration.

Thermal safety features protect against short circuit and overload conditions. Performance is rated for operating frequencies from 50 Hz to 60 Hz. Explore more RS PRO PCB Transformers and other Electronic Components at EnvMart for your industrial and manufacturing requirements.
