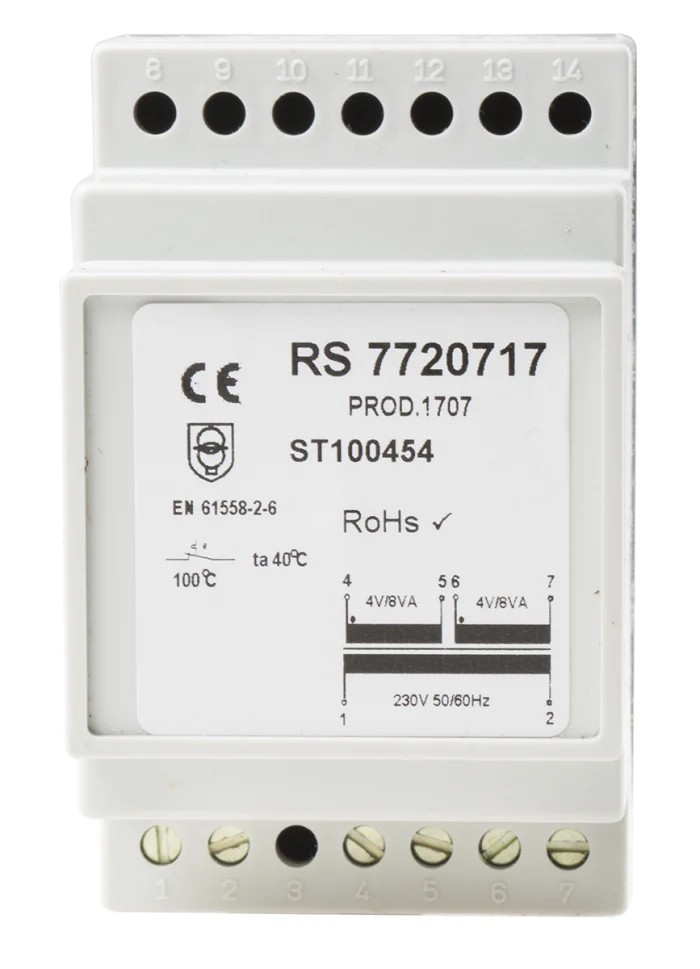

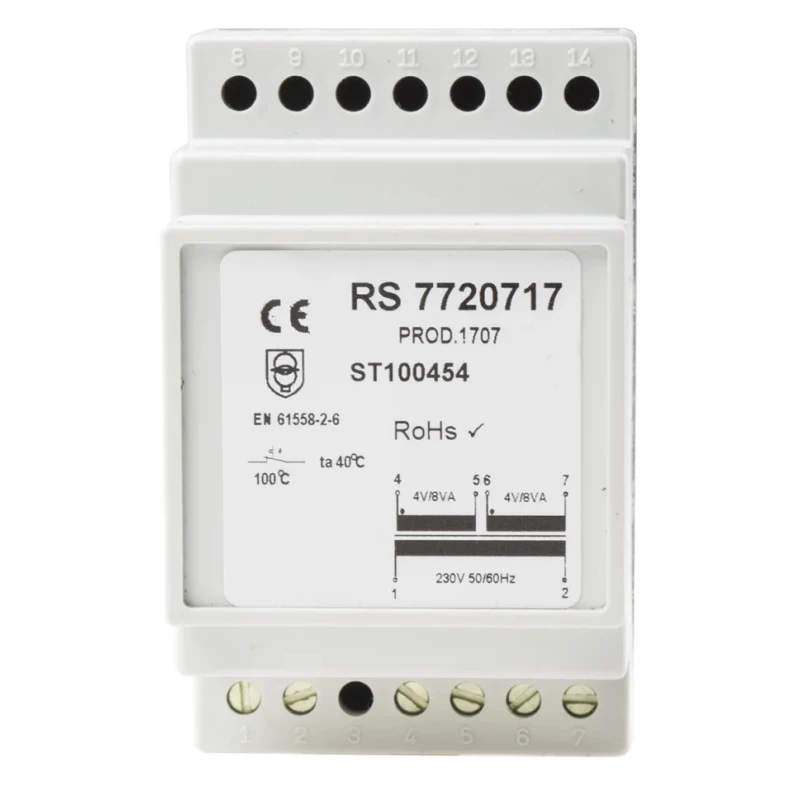

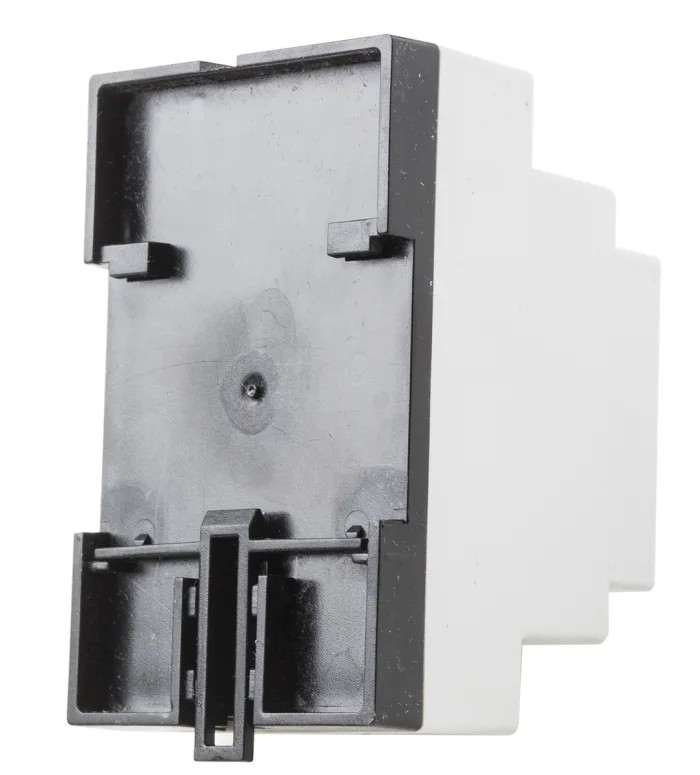

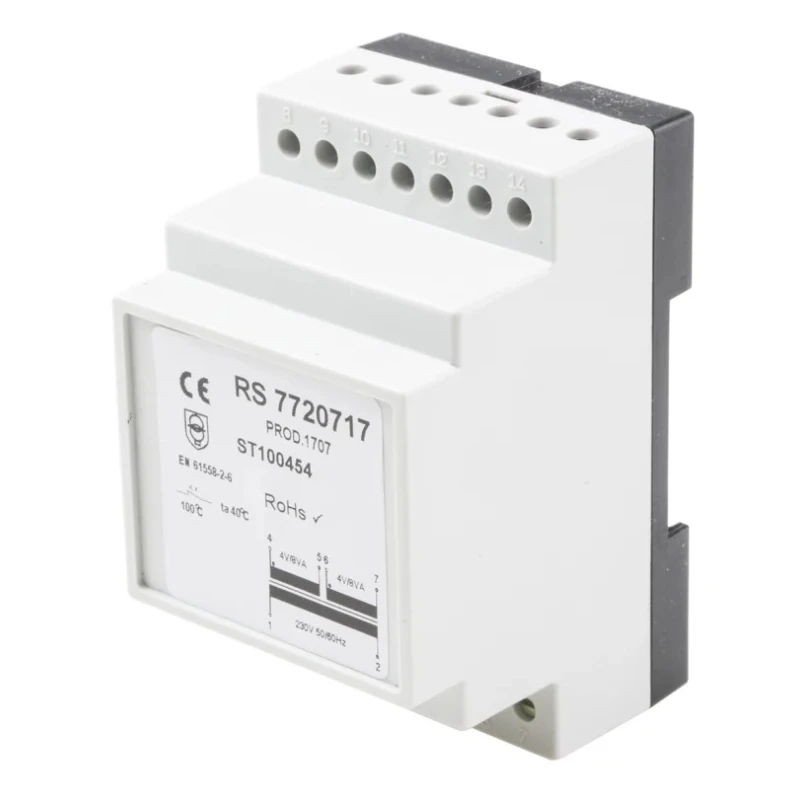

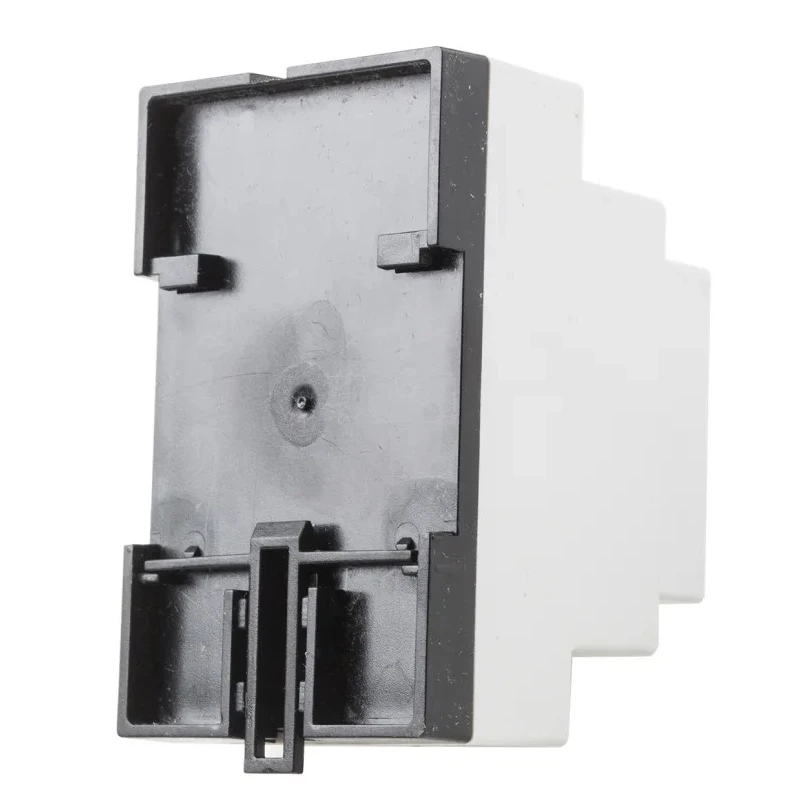

RS PRO 20 VA DIN Rail Transformer, 230 V AC Primary, 4 V AC Secondary, Screw Termination, SI-DIN 35 Series 772-0717
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Length | 86mm |
| Model | 772-0717 |
| Depth | 58mm |
| Gross Weight | 1.6kg |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Series | SI-DIN 35 |
| Termination Type | Screw |
| Maximum Operating Temperature | 130°C |
| Number of outputs | 2 |
| Primary Voltage | 230 V ac |
| Secondary Voltage | 4 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
Key Features
- Mount type is DIN Rail compatible for secure fitting.
- Primary voltage rating of 230 V AC ensures compatibility with standard electrical supplies.
- Secondary voltage output is 4 V AC suitable for control and signal circuits.
- Features screw termination for reliable and easy electrical connections.
- Operating frequency range from 50 Hz to 60 Hz.
- Constructed under SI-DIN 35 series standards for durability and performance.
- Complies with RoHS, IECBSEN 615581, IECBSEN 615586, CE, and ASNZS standards.
- Maximum operating temperature is 130°C ensuring thermal reliability.
Product Description
RS PRO 772-0717 DIN Rail Transformer is a robust industrial-grade transformer designed for power supply and control circuit applications. It offers a primary voltage of 230 V AC and a secondary voltage of 4 V AC, making it suitable for sensitive control systems and switch relay operations.
This transformer features a DIN Rail mount type, enabling easy and secure installation within equipment cabinets or control panels. The screw termination type ensures reliable electrical connections that withstand industrial vibrations and conditions.
Built to the SI-DIN 35 series standards, this model is engineered for continuous load operation with integrated PTC-resistor protection against overload and short circuits. It operates efficiently within a frequency range of 50 to 60 Hz and can endure maximum temperatures of up to 130°C, guaranteeing durability in demanding environments.
The compact form factor measures 86 mm in length, 52.5 mm in width, and 58 mm in depth, with a gross weight of 1.6 kg, facilitating easy integration into various electrical enclosures.
Mount type is DIN Rail which ensures solid and reliable fixture within control cabinets. Primary voltage is 230 V AC with a 4 V AC secondary output suitable for control circuit applications. Screw termination offers durable and stable electrical connections.
Complies with multiple international standards including RoHS, IECBSEN 615581, IECBSEN 615586, CE, and ASNZS ensuring safety and compliance. Designed for continuous load, includes PTC-resistor for overload protection. Compact dimensions and moderate weight allow flexible panel design.
Capable of operating between 50 Hz and 60 Hz frequency ranges. Maximum operating temperature of 130°C provides thermal resilience.
This DIN Rail Transformer from RS PRO is ideal for industrial, manufacturing, and electronic control panel applications where reliable transformer performance is critical. It meets high safety and quality standards suitable for demanding environments. Browse other transformers and electrical components available in EnvMart for comprehensive industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this transformer is 230 V AC, ensuring compatibility with standard electrical supplies.
The secondary voltage output is 4 V AC, which is suitable for control and signal circuits.
This model features a DIN Rail mount type, allowing for secure installation within equipment cabinets or control panels.
It operates efficiently within a frequency range of 50 Hz to 60 Hz.
The dimensions are 86 mm in length, 52.5 mm in width, and 58 mm in depth.
The gross weight of this transformer is 1.6 kg, facilitating easy integration into various electrical enclosures.
It features screw termination, ensuring reliable and stable electrical connections.
The maximum operating temperature is 130°C, providing thermal reliability in demanding environments.
It complies with multiple international standards including RoHS, IECBSEN 615581, IECBSEN 615586, CE, and ASNZS.
This transformer has 2 outputs, making it suitable for various applications.
It is constructed under the SI-DIN 35 series standards, ensuring durability and performance.
Yes, it is designed for continuous load operation and includes PTC-resistor protection against overload and short circuits.
