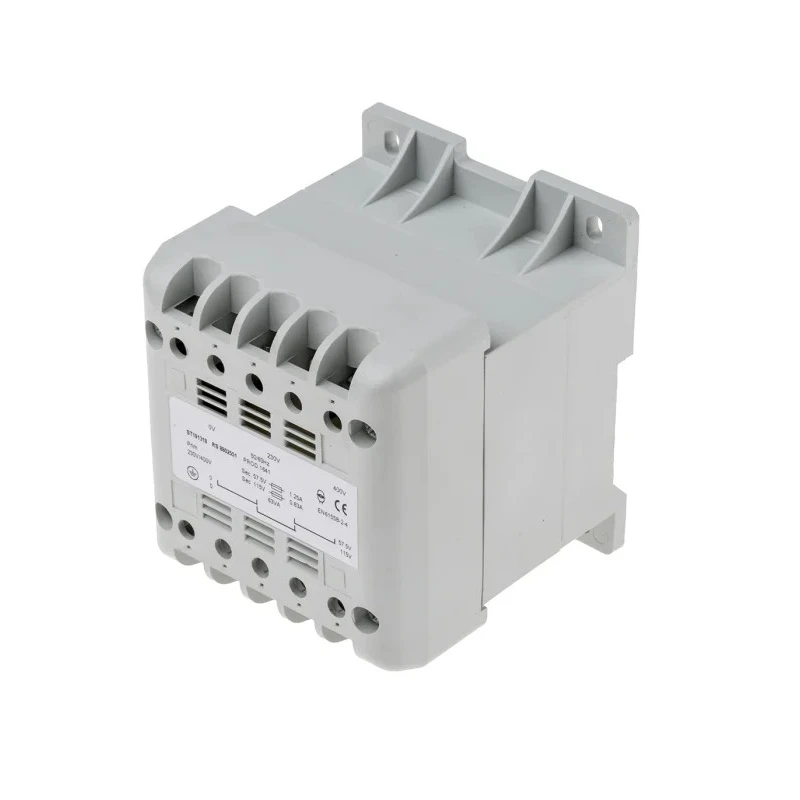

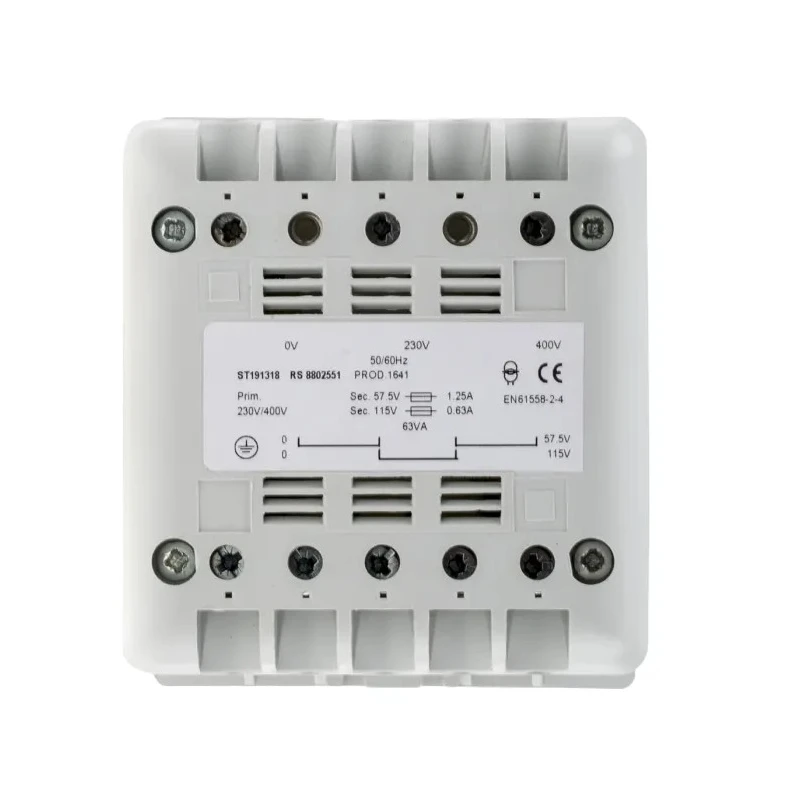

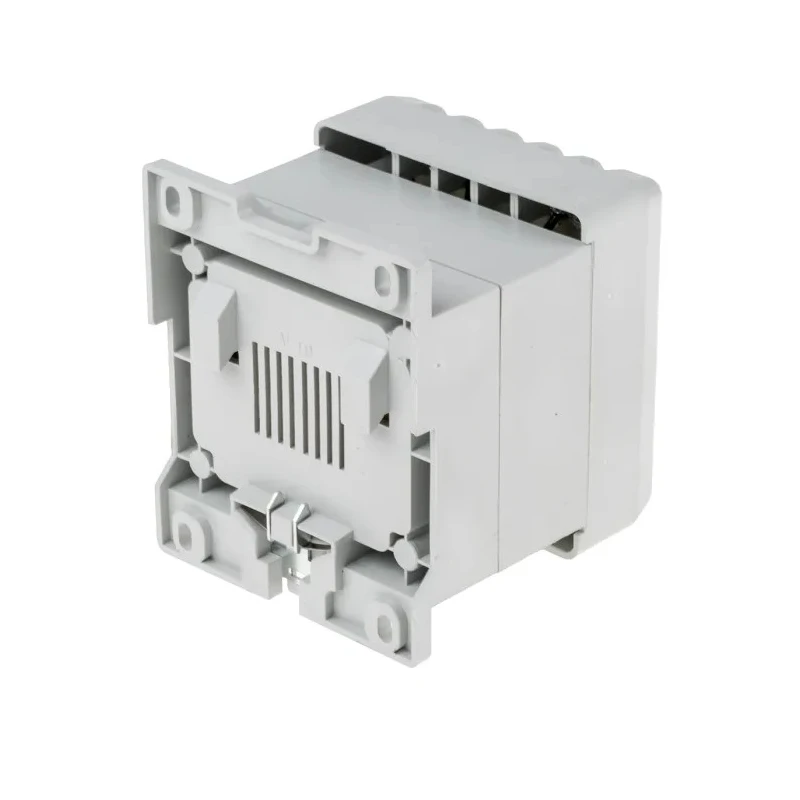

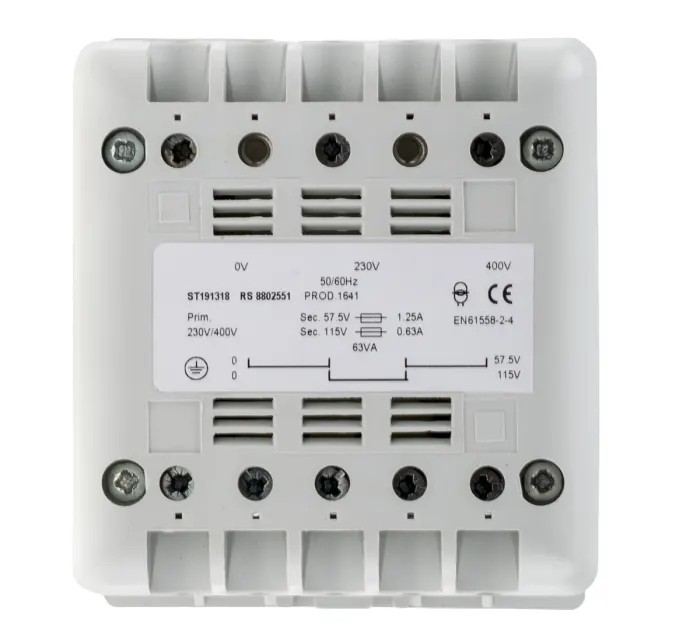

RS PRO 63 VA DIN Rail Transformer, 400 V AC, 230 V Primary, 115 V AC, 24 V, 12 V Secondary, IP21, RoHS, ASNZS 880-2551

The RS PRO 880-2551 DIN Rail Transformer is a premium 63 VA electrical isolation transformer designed to meet rigorous industrial and commercial power distribution requirements. Featuring dual primary voltage compatibility of 230 V AC and 400 V AC, this transformer accommodates diverse input voltages while delivering multiple secondary voltages including 12 V AC, 24 V AC, and 115 V AC. This versatility makes it suitable for control panels, electromagnetic applications, and equipment requiring varied voltage levels.

Its DIN rail mounting format allows convenient and standardized installation within electrical enclosures and panel boards. Constructed for durability and longevity, it reliably operates at temperatures up to 130°C and is rated IP21 for protection against dust and moisture ingress, assuring safe and stable performance in demanding environments.

Designed according to rigorous RoHS and ASNZS 61558 series standards, the transformer ensures compliance with relevant safety, environmental, and operational criteria. The high isolation voltage of 4 kV to 4.6 kV RMS enhances operator and equipment safety by minimizing electrical interference and faults. Additionally, optional adjustment tapings provide voltage flexibility to finely tune output as required.

With dimensions of 106 mm length, 90 mm width, and 87 mm depth and a compact weight of 1.5 kg, the RS PRO transformer is optimized for space-constrained industrial setups. It supports operating frequencies of 50 to 60 Hz for global compatibility.

This transformer is ideal for use in electrical control systems, panel boards, manufacturing machinery, and other applications demanding reliable AC voltage conversion and isolation. Its robust features ensure high efficiency, safety, and resilience in industrial power supply roles.

Primary voltage options include 230 V and 400 V AC for flexible electrical input. Secondary outputs provide 12 V, 24 V, and 115 V AC to accommodate various equipment needs. Rated power capacity is 63 VA, designed for reliable transformer operation.

Constructed for DIN rail mounting ensuring easy installation and integration. Supports operating frequencies from 50 Hz to 60 Hz for global compatibility. Protected by IP21 class, ensuring safety against dust and moisture.

Can operate at temperatures up to 130°C, suitable for harsh environments. Complies with RoHS and ASNZS 61558 standards for safety and environmental requirements. Measures 106 mm in length, 90 mm width, and 87 mm depth with a weight of 1.5 kg.

High isolation rating of 4 kV or 4.6 kV RMS enhances safety during operation. Optional +/- 15 V adjustment tapings provide precise voltage control.

This RS PRO DIN Rail Transformer offers a combination of performance, compliance, and adaptability, making it an essential component for professional electrical engineering and industrial automation projects. Explore similar transformers and related products in the Transformers category at EnvMart.
