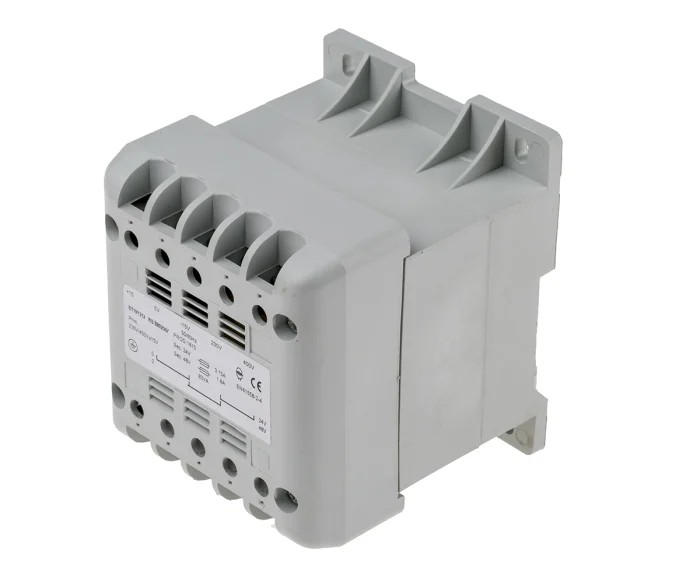

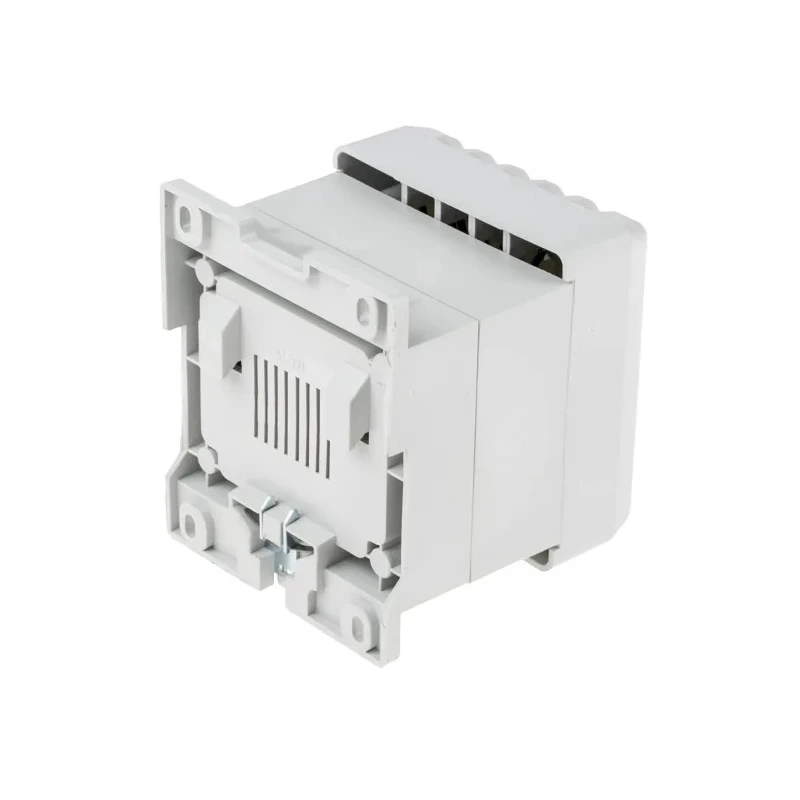

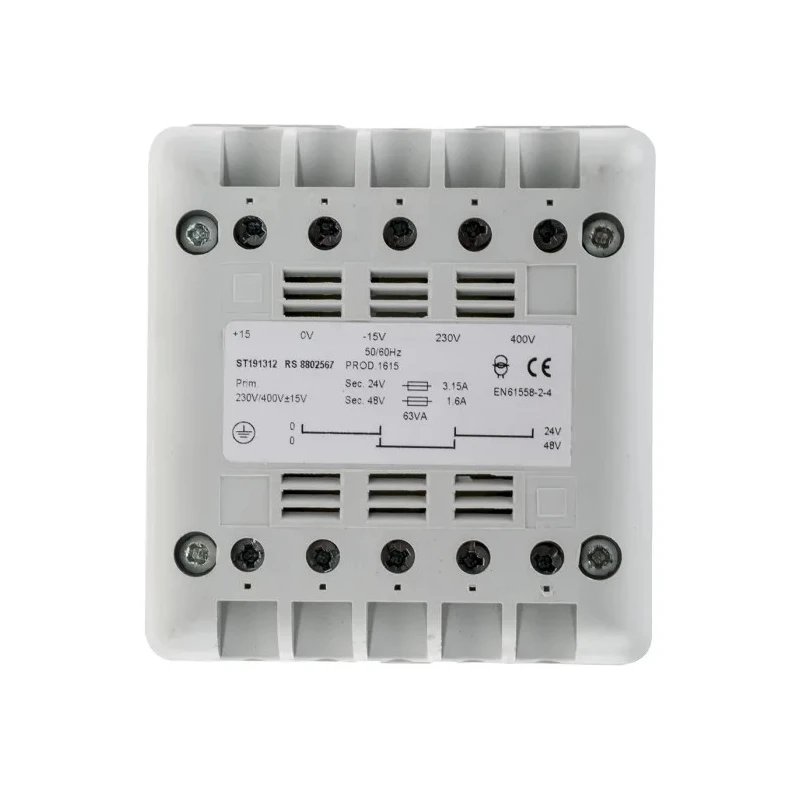

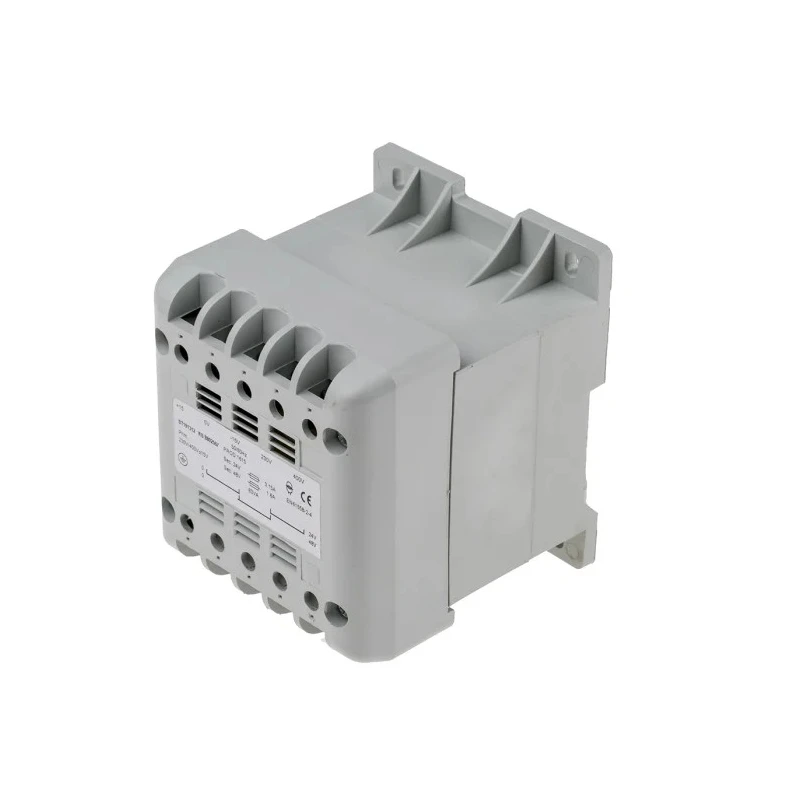

RS PRO 63 VA DIN Rail Transformer 400 V AC Primary 115 V, 24 V, 12 V Secondary 50-60Hz 106x90x87mm 1.5kg 880-2567

RS PRO 880-2567 DIN Rail Transformer is a professional-grade electrical transformer designed for industrial and commercial panel applications. It features a dual-standard primary winding accepting both 230 V and 400 V AC inputs, providing versatility in power supply scenarios.

With a rated power of 63 VA, this transformer delivers secondary voltages of 115 V AC, 24 V, and 12 V, making it suitable for a wide range of control circuits and auxiliary equipment. The DIN Rail mounting type allows easy installation within electrical enclosures and control panels. Its compact design with dimensions 106x90x87 mm ensures minimal panel space usage.

The transformer operates within a frequency range of 50 to 60 Hz and can withstand maximum operating temperatures up to 130 degrees Celsius, ensuring reliable performance even in demanding industrial environments. It holds certifications to standards such as ASNZS 61558, IECBSEN 615581, IECBSEN 615586, CE, and RoHS, guaranteeing compliance with international safety and quality requirements.

RS PRO transformers are IP21 rated, featuring fully shrouded screw terminals with permanent markings that enhance installation safety and convenience. The product is manufactured in Poland and is part of a professional range designed to provide dependable performance for control panel electrical power supply and distribution.

Applications include industrial automation, manufacturing control systems, electrical equipment power supply, and HVAC control panels. This transformer is suitable for both new projects and maintenance tasks demanding a reliable and safe power isolation solution.

Rated power capacity of 63 VA for control panel and auxiliary power applications. Dual standard primary winding supports 230 V and 400 V AC inputs. Multiple secondary voltages of 115 V AC, 24 V, and 12 V for varied applications.

Compact DIN Rail mount type for efficient panel integration. Operates within 50 - 60 Hz frequency range for global compatibility. Maximum operating temperature of 130°C ensures durability. Complies with ASNZS 61558, IECBSEN standards, CE, and RoHS certifications.

IP21 rated enclosure with fully shrouded screw terminals. Manufactured in Poland to high quality standards. Explore a wide selection of DIN Rail Transformers and other industrial components at EnvMart for reliable and certified electrical solutions.
