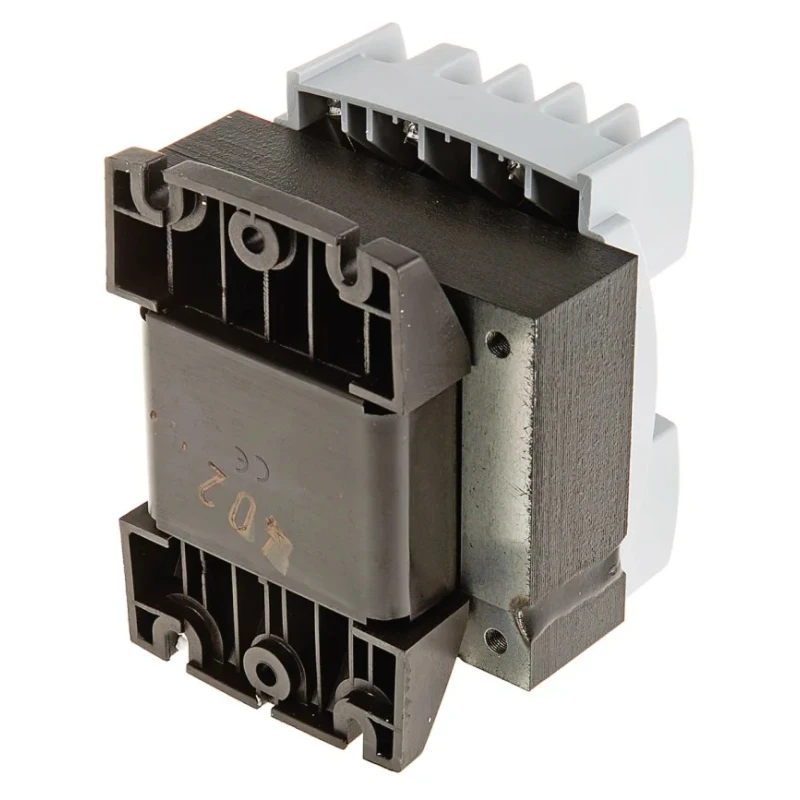

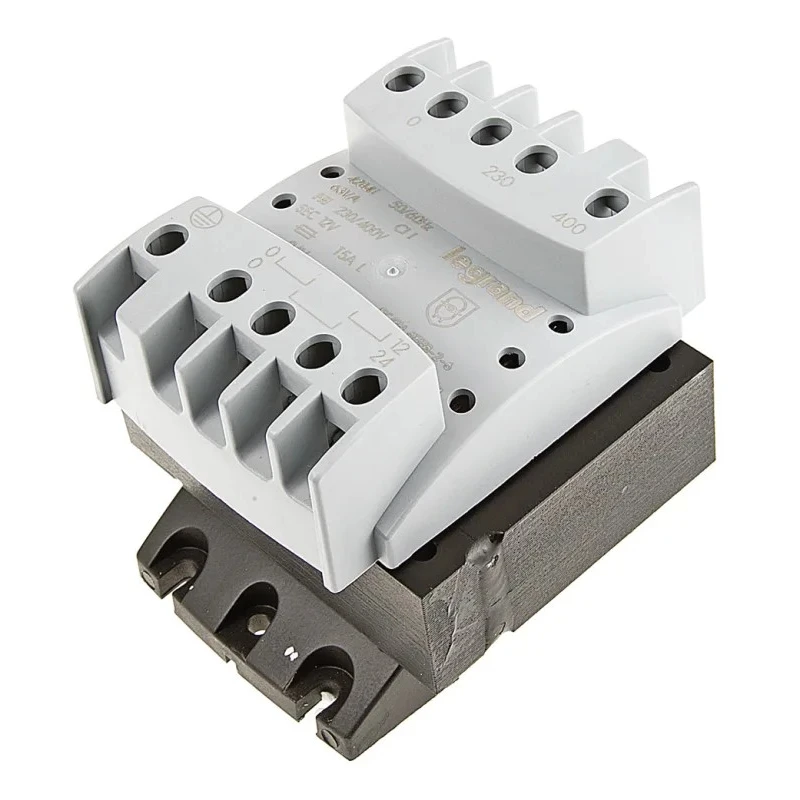

Legrand 63 VA DIN Rail Transformer, 230 to 400 V Primary, 230 V ac Secondary, DIN Rail Mount, 98x84x77 mm, 1.3 kg 0 428 41

Legrand 0 428 41 DIN Rail Transformer offers a robust and reliable electromagnetic solution designed for voltage transformation in a variety of industrial and electrical panel applications. This model has a 63 VA rated power and primary voltage that accommodates from 230 V to 400 V, with a constant secondary voltage output of 230 V ac, ensuring stable power supply and operational safety.

Mount type options include both DIN rail and screw fixings, allowing flexible installation in control panels or enclosures. The transformer features fully shrouded screw terminals with permanent markings to support safe wiring identification and reduce installation errors.

Its compact dimensions of 98 mm length, 84 mm width, and 77 mm depth make it ideal for limited-space environments, while its weight of 1.3 kg ensures a sturdy construction without excessive bulk. The operating frequency range of 50 to 60 Hz supports compatibility with a broad range of power supply conditions.

This transformer complies with major international safety and performance standards such as EN 60439-1, EN 60204-1, IEC/EN 61558-2-2, UL506, EN 61131-2, and CSA C22-2-N°66, which makes it appropriate for diverse industrial, laboratory, manufacturing, and HVAC applications requiring reliable power transformation.

Its maximum operating temperature of 50°C further confirms suitability for typical industrial environments. The control panel unit features dual standard primary windings for 230 / 400 Vac, enhancing its adaptability within variable electrical systems.

Note that mounting clips for DIN rail installation are not included but can be added via accessory parts (0044 16 for up to 160 VA models or other RS stock number parts for higher VA ratings). Installation can also be achieved directly with screws through easily accessible mounting points.

63 VA power rating suitable for control panel applications. Dual primary voltage 230/400 V for versatile inputs. Compact size with 98x84x77 mm dimensions. Lightweight at 1.3 kg for easy handling. Compliance with key electrical standards and safety certifications.

Operating frequency range 50-60 Hz for broad compatibility. Temperature rating up to 50°C for industrial conditions. Fully shrouded screw terminals for safety. Mounting flexibility via DIN rail or screws.

Legrand’s DIN Rail Transformers category provides high-quality, certified components designed for efficient and safe power supply management in industrial and commercial electrical systems. Discover a wide range of transformers from Legrand at EnvMart to ensure optimal fit and performance for your specific automation and control requirements.
