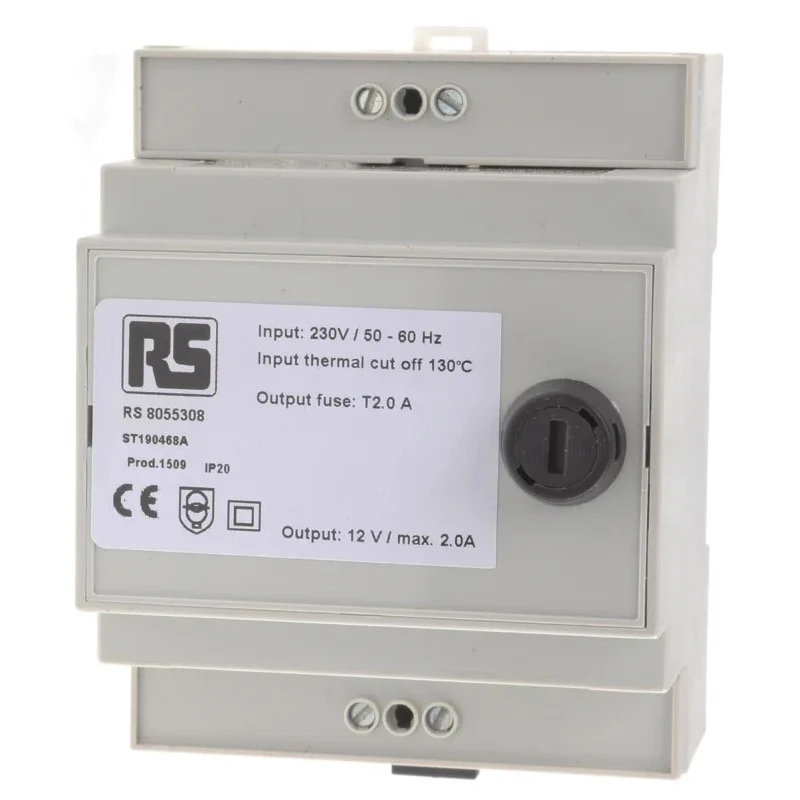

RS PRO 75 VA DIN Rail Transformer 230 V ac Primary, 12 V ac Secondary, IP20, Screw Terminals, 1 Output 805-5308

RS PRO model 805-5308 is a 75 VA DIN Rail Transformer engineered with a primary voltage of 230 V ac and a secondary voltage of 12 V ac. This single phase isolation transformer features screw terminal connections and mounts on standard 35 mm DIN rail (TS35). It is designed for continuous load applications with full electrical and flash testing to ensure safety and performance.

With a protective IP20 enclosure and temperature class E insulation rated up to 120°C, it is suitable for demanding industrial and electrical environments. The transformer complies with international standards including RoHS, CE, IEC/BS/EN 61558-1, and AS/NZS 61558.1, making it reliable and compliant for multiple applications.

The compact dimensions of 86 mm length, 71 mm width, and 54 mm depth with a weight of 1.8 kg contribute to easy integration into electrical panels and systems.

Operating efficiently within a frequency range of 50 to 60 Hz, the RS PRO 805-5308 transformer is ideal for use in industrial control, automation, manufacturing plants, laboratories, HVAC systems, and electrical supply distribution.

Single phase moulded IP20 DIN rail mounted transformer. Screw terminal mounting for secure electrical connections. Primary voltage: 230 V ac, Secondary voltage: 12 V ac. Power rating: 75 VA capable of continuous load. Compliant with RoHS, CE, IEC/BS/EN 61558 standards for safety and environment.

Temperature class E (120°C) suitable for industrial operations. Compact size and moderate weight (1.8 kg) for easy panel installation. Frequency range from 50 to 60 Hz supports various power systems. 100% electrical and flash tested for high reliability.

This RS PRO DIN Rail Transformer is supplied new and made in Poland. It is well suited for electrical engineers, panel builders, and maintenance technicians requiring a reliable step-down transformer for safe and efficient voltage conversion in industrial and commercial applications.
