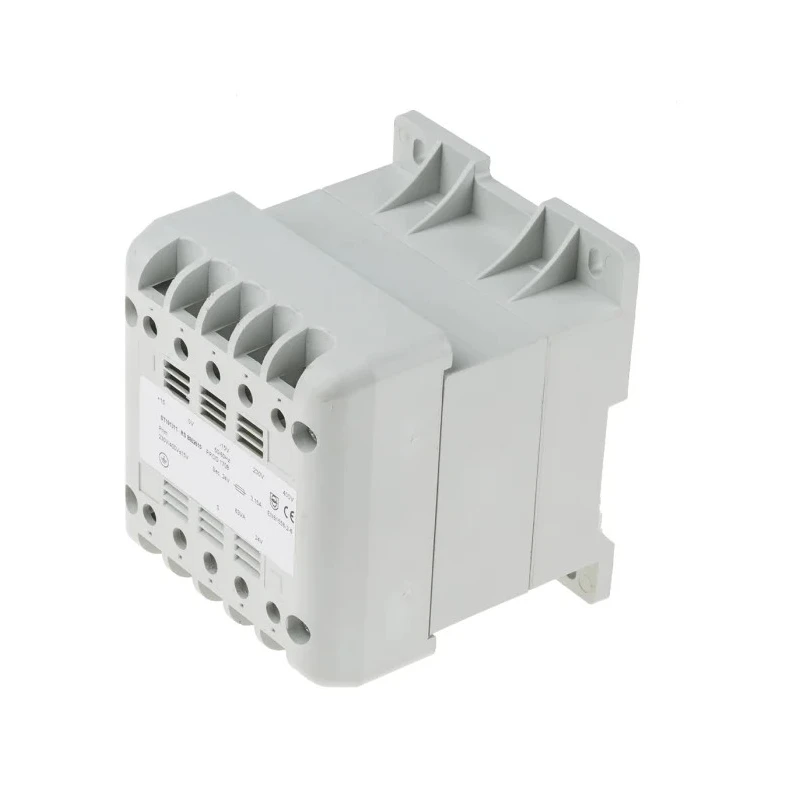

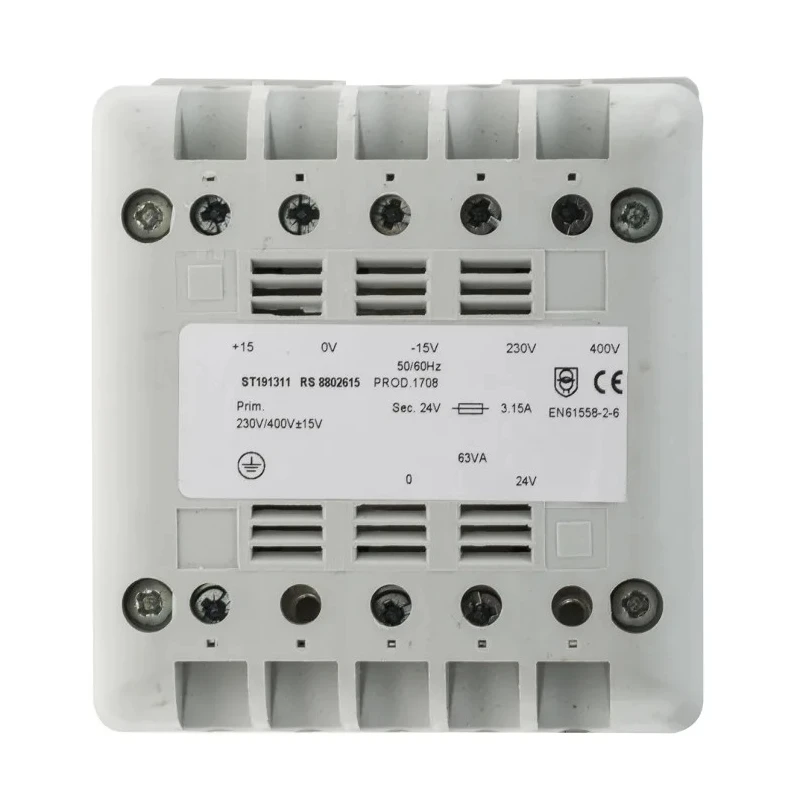

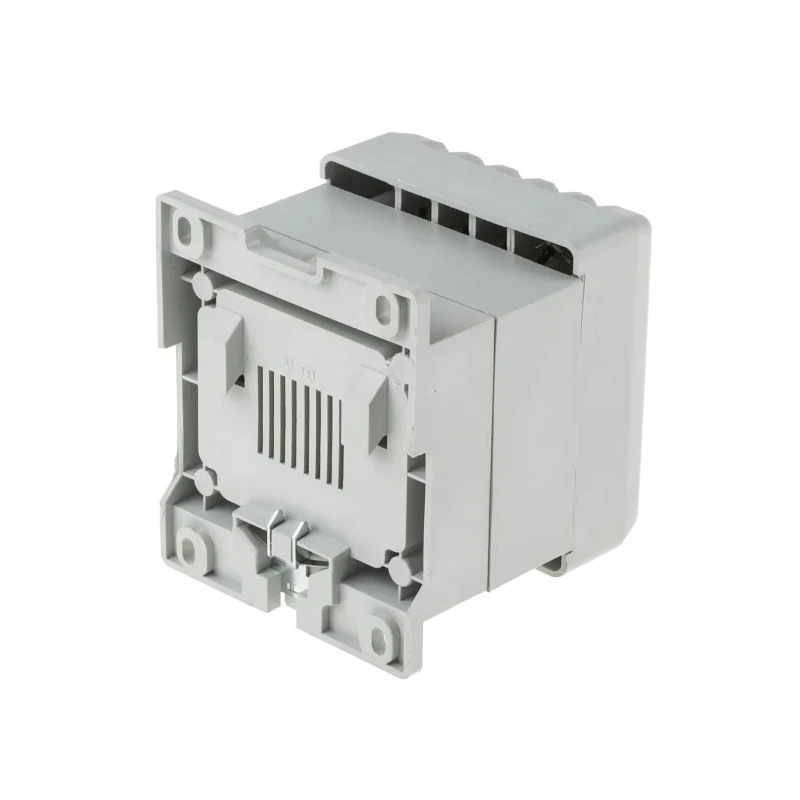

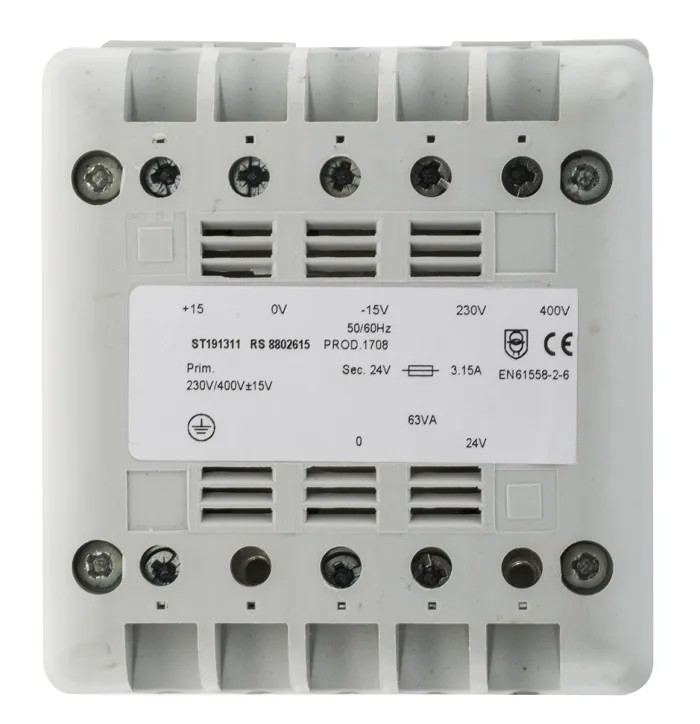

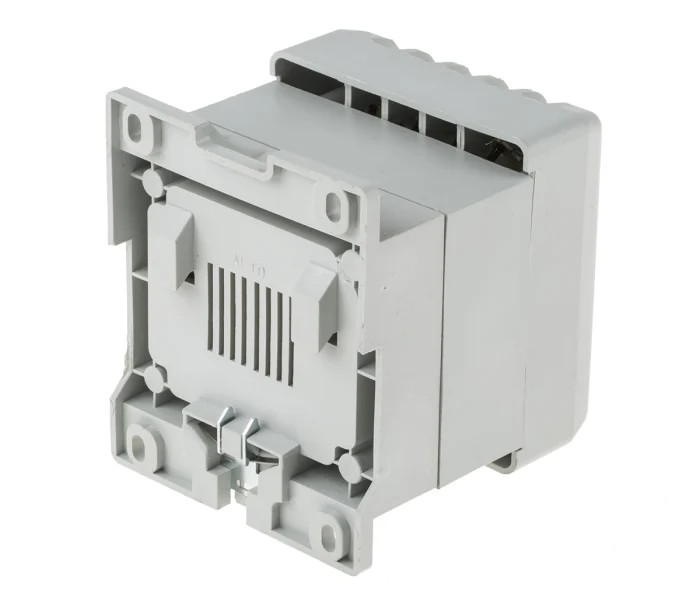

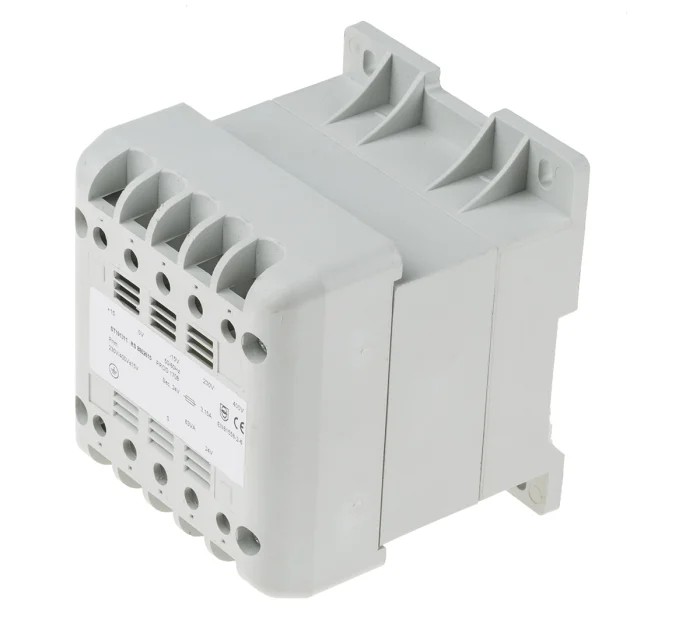

RS PRO 63 VA DIN Rail Transformer 230 V, 400 V AC Primary, 24 V Secondary, IEC/BS/EN 61558-2-4, AS/NZS 61558.1 880-2615
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Efficiency | High efficiency and low regulation minimize energy loss |
| Length | 106mm |
| Model | 880-2615 |
| Depth | 87mm |
| Gross Weight | 1.5kg |
| Width | 90mm |
| Mount Type | DIN Rail |
| Isolation | High isolation of 4kV or 4.6kV RMS for enhanced safety |
| Protection Class | IP21 for reliable protection against dust and moisture |
| Maximum Temperature | Can withstand up to 130°C |
| Operating Frequency | 50/60Hz for global compatibility |
| Safety | High isolation ratings and IP21 protection class for safe operation |
| Durability | Operates at temperatures up to 130°C, built to withstand harsh conditions |
| Maximum Operating Temperature | 130°C |
| Number of outputs | 1 |
| Adjustments | Optional +/- 15V adjustment tapings for precise voltage control |
| Primary Voltage | 230 V, 400 V ac |
| Secondary Voltage | 24 V |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Primary Voltage Rating | 230V or 400V AC |
| Secondary Voltage Rating | 12V, 24V, or 115V AC |
| Versatility | Multiple primary and secondary voltage options to suit diverse applications |
| Optional Dual Output | Flexibility to meet diverse requirements |
Key Features
- Designed for DIN rail mounting with one output for flexible installation.
- Supports primary voltages of 230 V or 400 V AC with 24 V secondary output.
- Operates efficiently at frequencies from 50 Hz to 60 Hz.
- Rated for maximum operating temperature of 130°C ensuring durability in harsh environments.
- Meets multiple standards including IEC/BS/EN 61558-2-4 and AS/NZS 61558.1 for safety and quality compliance.
- High isolation ratings for secure operation and IP21 protection against dust and moisture.
- Lightweight construction with a gross weight of 1.5 kg for easy integration.
- Ideal for electrical control systems and panel boards in industrial and commercial setups.
Product Description
RS PRO 880-2615 DIN Rail Transformer provides a versatile and efficient solution for electrical power transformation in industrial applications. With a power rating of 63 VA, it supports primary voltages of 230 V and 400 V AC and secondary voltage of 24 V, delivering reliable performance while mounted on DIN rails.
The transformer's compact form factor measuring 106 mm in length, 90 mm in width, and 87 mm in depth facilitates integration in control panels and electrical enclosures. It operates at frequencies of 50 Hz and 60 Hz and is designed to withstand maximum temperatures up to 130°C, ensuring durability in challenging environments.
This product complies with rigorous industry standards such as IEC/BS/EN 61558-2-4, AS/NZS 61558.1, and others, guaranteeing safety and quality in application. The IP21 protection class shields it from dust and moisture, enhancing operational safety and longevity.
Its high isolation rating of 4 kV or 4.6 kV RMS protects sensitive equipment, making it ideal for electromagnetic applications, electrical control systems, and panel boards in industrial, manufacturing, and commercial installations.
The lightweight design weighing only 1.5 kg simplifies handling and installation while maintaining robustness. With one output and DIN rail compatibility, the transformer offers flexibility and safety for diverse electrical distribution needs.
Designed for DIN rail mounting with one output for flexible installation. Primary voltages of 230 V or 400 V AC with 24 V secondary output. Compact size: 106 mm length, 90 mm width, 87 mm depth. Operates at 50 Hz to 60 Hz frequency range.
Maximum operating temperature of 130°C. Compliant with IEC/BS/EN 61558 series and AS/NZS standards. High isolation and IP21 protection class for safety. Gross weight of 1.5 kg ensures easy installation. Suitable for electrical control systems and panel boards.
Explore the full range of RS PRO transformers and related products on EnvMart to find solutions tailored to your industrial, manufacturing, and electrical distribution requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports primary voltages of 230 V and 400 V AC.
The secondary voltage output of this transformer is 24 V.
It measures 106 mm in length, 90 mm in width, and 87 mm in depth.
The transformer can withstand maximum operating temperatures of up to 130°C.
The gross weight of the transformer is 1.5 kg.
It operates efficiently at frequencies from 50 Hz to 60 Hz.
This model is designed for DIN rail mounting.
It meets IEC/BS/EN 61558-2-4 and AS/NZS 61558.1 standards for safety and quality compliance.
It has a high isolation rating of 4 kV or 4.6 kV RMS for enhanced safety.
Yes, it includes optional +/- 15V adjustment tapings for precise voltage control.
It is suitable for electrical control systems and panel boards in industrial and commercial setups.
It has an IP21 protection class, providing reliable protection against dust and moisture.
