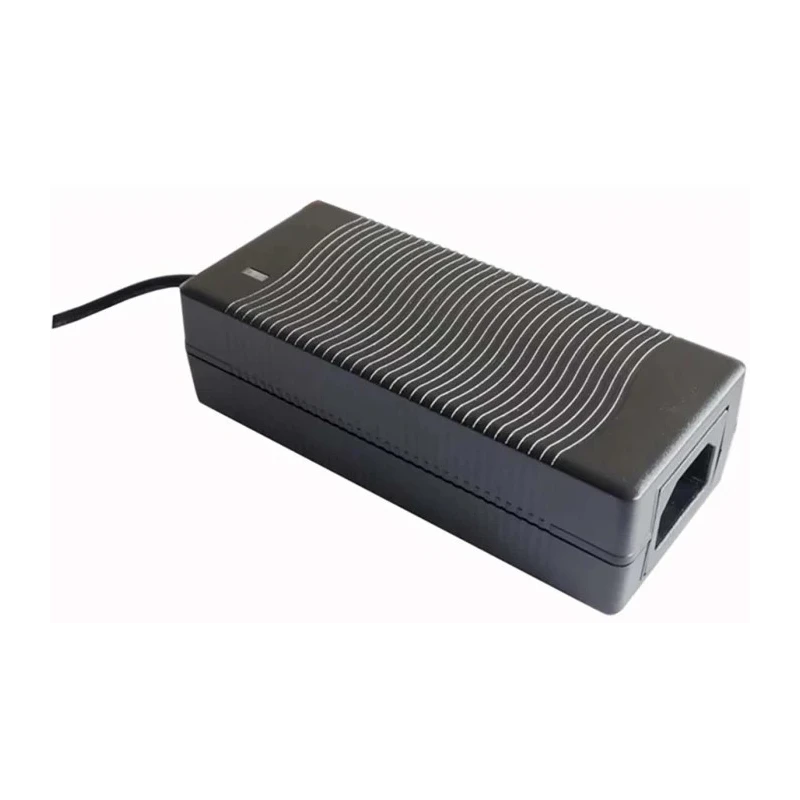

RS PRO AC/DC Power Adapter 15V DC 65W 4.33A IEC 320 C14 2.1 x 5.5 x 11 mm Centre Positive 204-7564
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 65W |
| Efficiency | 88% |
| Dimensions | 120mm x 52.5mm x 36mm |
| Length | 120mm |
| Model | 204-7564 |
| Depth | 36mm |
| Width | 52.5mm |
| Series | 66JYH4Z |
| Maximum Operating Temperature | 40°C |
| Sub Type | Power Adapter |
| Load Regulation | ±5 % |
| Minimum Operating Temperature | 0°C |
| Plug Type | IEC 320 C14 |
| Output Voltage Rating | 5V to 48 V dc |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Output Voltage | 15V dc |
| Standards/Approvals | CCC, CE, cULus, FCC, TUV, UL |
| Minimum Input Voltage | 90V ac |
| Output Connector Type | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector Type | IEC 320-C14 |
| Adapter Current | 4.33A |
| Energy Efficiency Level | VI |
| Rated Output Power | 40W to 72 W |
| MEAN WELL AC/DC Adapter 264V ac Output 4 A, 15 V dcBrand | MEAN WELL |
Key Features
- IEC 320 C14 input plug ensures secure and standard connection.
- Output connector size is 2.1 x 5.5 x 11 mm with centre positive polarity.
- Operates efficiently with an 88% efficiency rating at input voltage range 90V AC to 240V AC.
- Compact dimensions of 120mm length, 52.5mm width, and 36mm depth with a lightweight design.
- Includes protection features such as overload, short circuit, and automatic recovery functions.
- Complies with multiple safety standards including CCC, CE, cULus, FCC, TUV, and UL.
- Designed suitable for use with laptops, CCTV cameras, chargers, lamps, and speakers.
- Supports operating temperatures from 0°C to 40°C ensuring reliable performance.
Product Description
RS PRO 204-7564 AC/DC Power Adapter is a desktop power supply unit delivering a stable 15V DC output at 65W power and 4.33A current, suitable for powering a range of small electronic devices.
This adapter features an IEC 320 C14 input connector compatible with standard power sources and a 2.1 x 5.5 x 11 mm centre positive output connector, providing reliable connection and polarity for various applications.
Its compact enclosure measures 120mm in length, 52.5mm in width, and 36mm in depth, making it convenient for desktop use with minimal space consumption. With an efficiency rating of 88%, it ensures energy-saving operation across an input voltage range from 90V AC to 240V AC.
The adapter includes multiple protective features such as overload protection with hiccup mode, short circuit protection, and automatic recovery after fault removal, enhancing device safety and reliability. Certifications like CCC, CE, cULus, FCC, TUV, and UL affirm compliance with international safety standards.
Typical uses include powering laptops, CCTV cameras, speakers, chargers, and lighting devices in industrial, commercial, laboratory, and residential settings. The adapter supports operating temperatures between 0°C and 40°C, ensuring stable operation in diverse environments.
IEC 320 C14 input plug for standardized power connection. 2.1 x 5.5 x 11 mm centre positive output connector. High efficiency of 88% with wide voltage input support from 90V AC to 240V AC. Compact size and lightweight design for easy installation and portability.
Overload and short circuit protection for enhanced safety. Meets standards CCC, CE, cULus, FCC, TUV, and UL. Suitable for powering laptops, CCTV systems, chargers, lamps, and speakers. Reliable operation within 0°C to 40°C ambient temperature range.
RS PRO’s desktop power supplies are trusted in electronics manufacturing, testing laboratories, telecommunications, security installations, and consumer electronics applications. Explore the full range of RS PRO AC/DC Adapters at EnvMart for reliable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this adapter is 15V DC.
The adapter measures 120mm in length, 52.5mm in width, and 36mm in depth.
It features an IEC 320 C14 input connector.
The efficiency rating is 88%.
The maximum input voltage is 240V AC.
The output connector size is 2.1 x 5.5 x 11 mm with centre positive polarity.
It operates within a temperature range of 0°C to 40°C.
This model complies with multiple safety standards including CCC, CE, cULus, FCC, TUV, and UL.
It includes overload protection, short circuit protection, and automatic recovery functions.
The adapter provides a current output of 4.33A.
