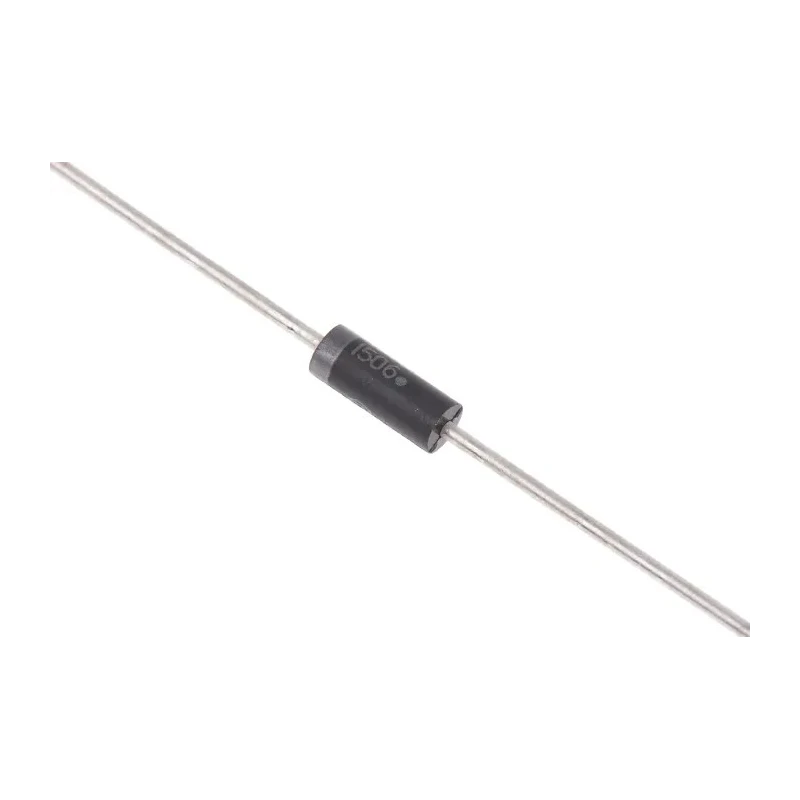

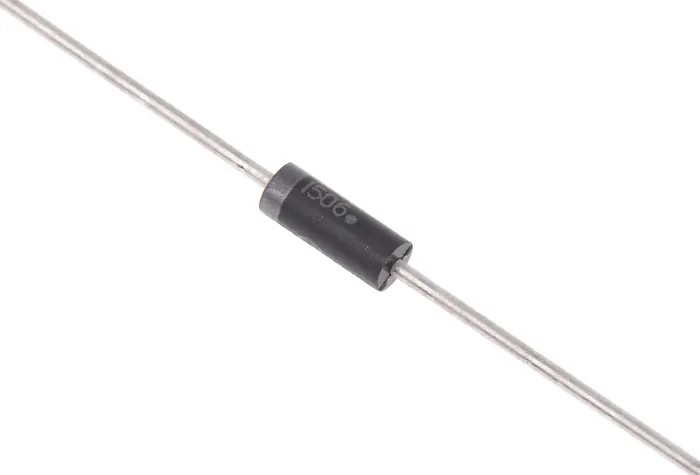

onsemi 39 V 5 W 5% Voltage Regulator Zener Diode, Single, Through Hole 2-Pin DO-15 1N5366BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5366BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 30mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 39V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 170Ω |
Key Features
- Designed for voltage regulation applications with a nominal Zener voltage of 39 volts.
- Maximum power dissipation of 5 watts ensures robust performance in demanding environments.
- Features a maximum Zener impedance of 170 ohms and low reverse leakage current.
- Operates reliably between -65°C to 200°C temperature range.
- Package type DO-15 offers a through-hole mounting configuration with 2 pins for secure PCB integration.
- Test current specified at 30 mA to guarantee stability and accurate voltage regulation.
- High-quality component suitable for industrial, laboratory, and electronic manufacturing applications.
Product Description
onsemi 1N5366BRLG is a high-performance 39 V, 5 W voltage regulator Zener diode designed for precise voltage stabilization in electronic circuits. This diode features a single element construct with robust parameters suitable for through hole mounting on printed circuit boards using the 2-pin DO-15 package.
Its electrical ratings include a nominal Zener voltage of 39 volts and a maximum power dissipation capacity of 5 watts, ensuring sustained operation in power regulation applications. The diode exhibits low maximum reverse leakage current of 500 nA and a maximum Zener impedance of 170 ohms, supporting high fidelity voltage control and low power loss.
Engineered for endurance, the diode maintains stable performance across a broad temperature range from -65°C up to 200°C. The test current of 30 mA indicates operational benchmarks for consistent voltage regulation.
This Zener diode is ideal for industrial electronics, control systems, instrumentation, and power supply protection roles. The through hole mounting package DO-15 provides mechanical strength and ease of soldering for reliable board assembly.
Designed for voltage regulation applications with a nominal Zener voltage of 39 volts. Maximum power dissipation of 5 watts ensures robust performance in demanding environments. Features a maximum Zener impedance of 170 ohms and low reverse leakage current.
Operates reliably between -65°C to 200°C temperature range. Package type DO-15 offers a through-hole mounting configuration with 2 pins for secure PCB integration. Test current specified at 30 mA to guarantee stability and accurate voltage regulation.
High-quality component suitable for industrial, laboratory, and electronic manufacturing applications.
Explore the Electronics & Electricals category at EnvMart for trusted semiconductor components like the onsemi 1N5366BRLG Zener Diode, designed to meet stringent industrial and manufacturing requirements.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 39 volts, designed for voltage regulation applications.
This model has a maximum power dissipation of 5 watts, ensuring robust performance in demanding environments.
It operates reliably within a temperature range of -65°C to 200°C.
The maximum reverse leakage current is 500 nA, which supports high fidelity voltage control.
The maximum Zener impedance is 170 ohms, contributing to its voltage regulation capabilities.
The DO-15 package features 2 pins for secure PCB integration.
The test current specified for this diode is 30 mA, which guarantees stability and accurate voltage regulation.
This diode uses a through-hole mounting configuration, making it suitable for printed circuit boards.
The height of this diode is 3.68 mm.
The length of the 1N5366BRLG is 8.89 mm.
This Zener diode is suitable for industrial electronics, control systems, instrumentation, and power supply protection roles.
The country of origin for this diode is India.
