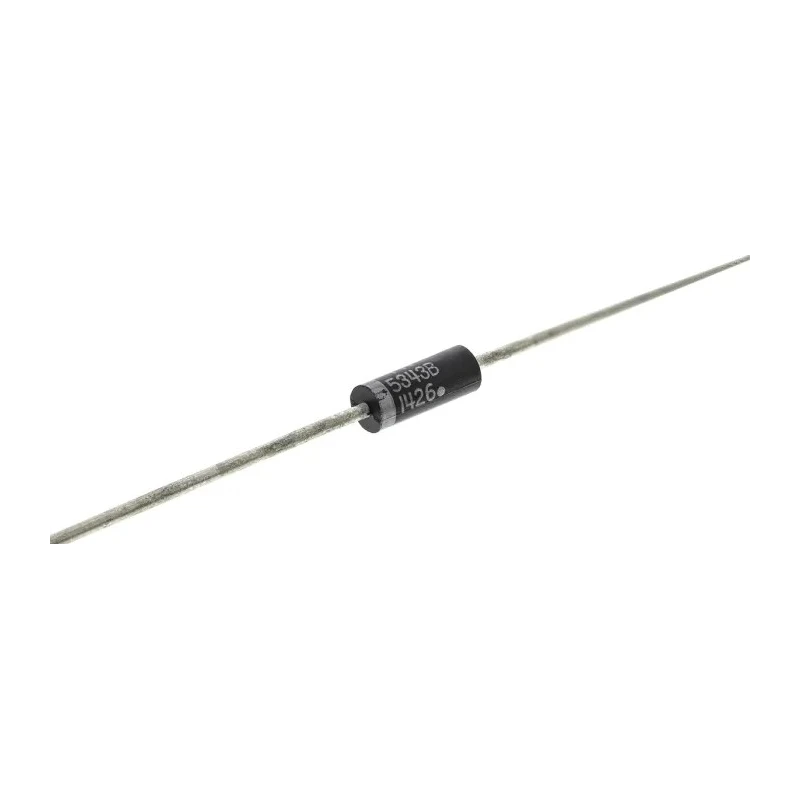

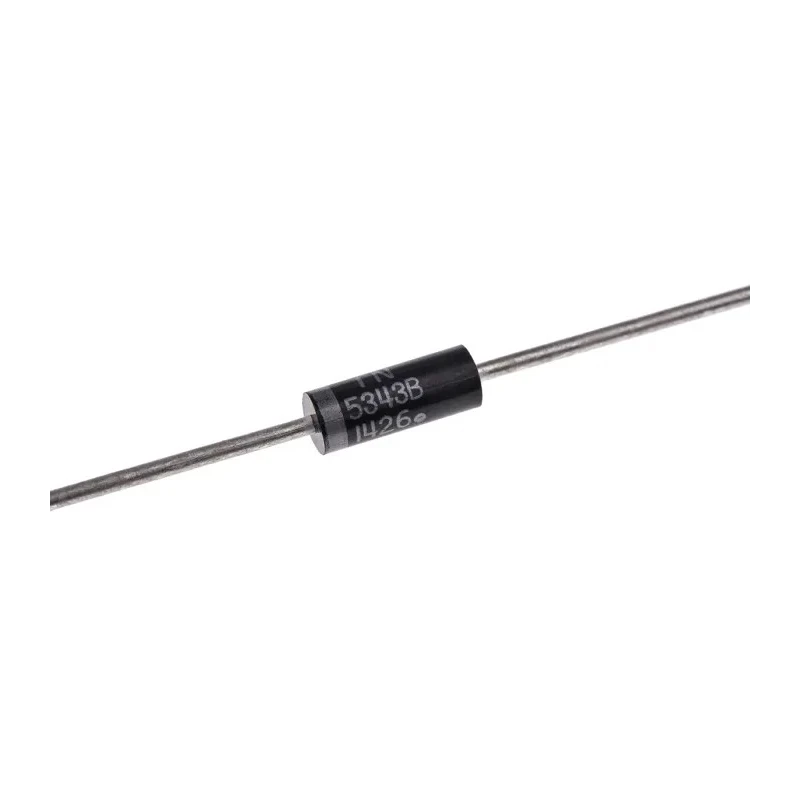

onsemi 7.5 V 5 Watt Single Zener Diode Through Hole 2-Pin DO-15 1N5343BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5343BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 175mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 7.5V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1.5Ω |
| 7.5V Zener diode,1N5343B 5WBrand | ON Semiconductor |
| onsemi, 7.5V Zener Diode 5% 5 W Through Hole 2-Pin 017AA-01Brand | ON Semiconductor |
Key Features
- This device features a nominal Zener voltage of 7.5 V with ±5% tolerance.
- It supports a maximum power dissipation of 5 W and a test current of 175 mA.
- The diode has a maximum Zener impedance of 1.5 ohms and low reverse leakage current of 10 µA.
- Operating temperature range spans from -65°C to 200°C ensuring reliable performance.
- The package is corrosion resistant and leads are designed for easy soldering in through hole applications.
- Ideal for industrial voltage regulation and protection in electronic circuits.
Product Description
onsemi 1N5343BRLG is a 7.5 V Zener Diode designed as a voltage regulator with a power rating of 5 W. It features a single diode configuration housed in a durable DO-15 through hole plastic package that provides mechanical support and environmental protection suitable for industrial and commercial use.
This diode maintains a tight voltage regulation characterized by a nominal Zener voltage of 7.5 V with ±5% tolerance, making it highly reliable in voltage stabilization tasks. It operates efficiently at a test current of 175 mA and can dissipate up to 5 W of power.
Operating temperature for this diode ranges from -65°C minimum to a maximum of 200°C, ensuring stable operation within harsh temperature conditions often found in industrial and electronic equipment environments.
The device has a maximum Zener impedance of 1.5 ohms and a low reverse leakage current of 10 µA, contributing to low power loss and enhanced performance in voltage regulator circuits. Its axial leads are corrosion resistant and designed for straightforward insertion and soldering in through hole printed circuit boards.
Typical applications include use in industrial electronics, power supplies, and protection circuits where precise voltage regulation and reliability are critical. This component forms part of the trusted 1N53 series of Surmetic™ 40 axial leaded Zener diodes.
This device features a nominal Zener voltage of 7.5 V with ±5% tolerance. Maximum power dissipation of 5 W supports robust voltage regulation. Through hole DO-15 molded thermosetting plastic package for durability. Wide operating temperature range from -65°C to 200°C ensures reliability.
Low leakage current improves efficiency in circuits. Corrosion resistant leads facilitate easy and secure PCB assembly. Explore more quality semiconductor components in the Zener Diodes category on EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 7.5 V with a tolerance of ±5%.
This model supports a maximum power dissipation of 5 W, which is suitable for robust voltage regulation applications.
The operating temperature range spans from -65°C to 200°C, ensuring reliable performance in various environments.
It operates efficiently at a test current of 175 mA.
The maximum reverse leakage current is 10 µA, contributing to low power loss in circuits.
This diode is housed in a DO-15 through hole plastic package, providing mechanical support and environmental protection.
The maximum Zener impedance is 1.5 ohms, which aids in maintaining voltage stability.
The dimensions are 8.89 mm in length and 3.68 mm in height.
It features a single diode configuration, making it suitable for various voltage regulation tasks.
Typical applications include use in industrial electronics, power supplies, and protection circuits where precise voltage regulation is critical.
The country of origin for this diode is India.
Yes, the package is designed to be corrosion resistant, facilitating secure PCB assembly.
