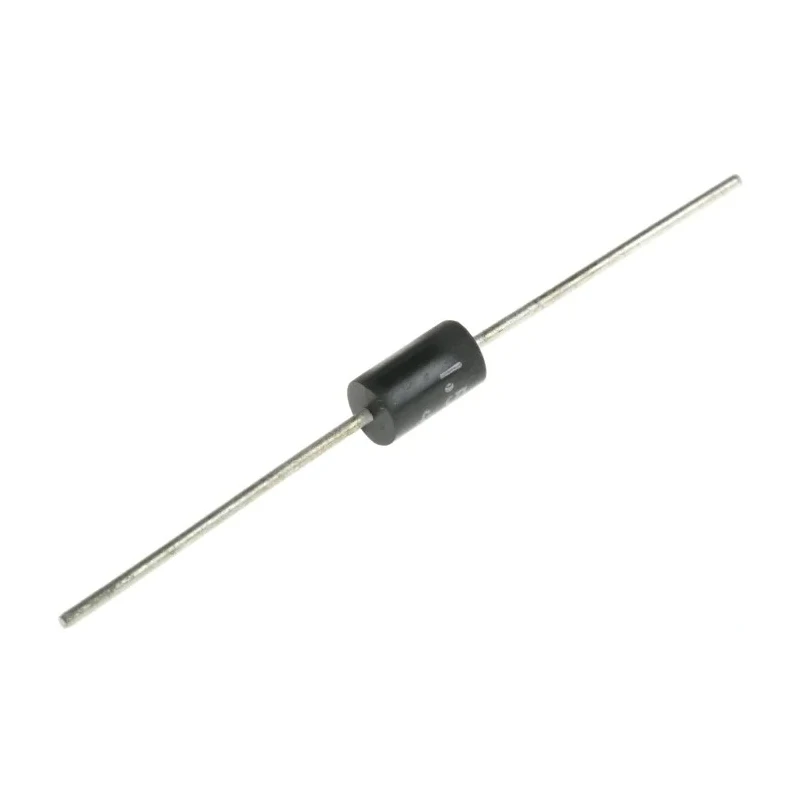

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW, 2-Pin, Through Hole Mount 1.5KE33CA-E3/54

Vishay 1.5KE33CA-E3/54 Bi-Directional TVS Diode is a high-reliability transient voltage suppressor designed for protecting sensitive electronic circuits from voltage spikes and transients. It is a single-element diode with bi-directional configuration, allowing suppression of both positive and negative transient voltages with an axial through-hole mount package for easy PCB integration.

Rated at a peak pulse power dissipation of 1.5 kW, this diode can withstand transient currents up to 32.8 A. Its minimum breakdown voltage of 31.4 V and clamping voltage of 45.7 V provide effective voltage spike clamping to prevent damage to circuit components. Operating temperature range spans from -55°C to 175°C, making it suitable for harsh industrial and automotive environments.

The device is packaged in the TRANSZORB TVS series configuration, known for its fast response and rugged design. It features a compact form factor with dimensions of 9.5 mm length and 5.3 mm diameter, optimized for compact PCB layouts. Additional features include a maximum reverse standoff voltage of 28.2 V and a minimal leakage current of 1 µA, enhancing efficiency and reliability.

This diode meets automotive standard AEC-Q101 for quality and durability, rendering it ideal for automotive electronics and other applications requiring stringent reliability. It is also equipped with ESD protection, addressing electrostatic discharge concerns in sensitive assemblies.

Applications include protection of industrial control circuits, power supplies, communication lines, and consumer electronics against voltage transients caused by lightning, load switching, and other electrical disturbances.

This TVS diode features bi-directional diode configuration designed for through-hole mounting. The device supports a maximum peak pulse current of 32.8 A. It has a minimum breakdown voltage of 31.4 V and a clamping voltage of 45.7 V for transient suppression.

Constructed with a compact axial package measuring 9.5 mm length and 5.3 mm diameter and width. Operates reliably between -55°C and 175°C, compliant with automotive AEC-Q101 standards. Incorporates Electrostatic Discharge (ESD) protection to enhance circuit longevity.

Maximum reverse stand-off voltage is 28.2 V with a leakage current of 1 µA. Suitable for industrial, automotive, and electronic circuit protection applications. The TRANSZORB TVS series ensures rapid and efficient voltage transient suppression.

Enhance your electronic circuit designs with reliable surge protection by choosing the Vishay 1.5KE33CA-E3/54 TVS Diode. Explore further semiconductor and protection components categories on EnvMart to find matching and complementary devices.
