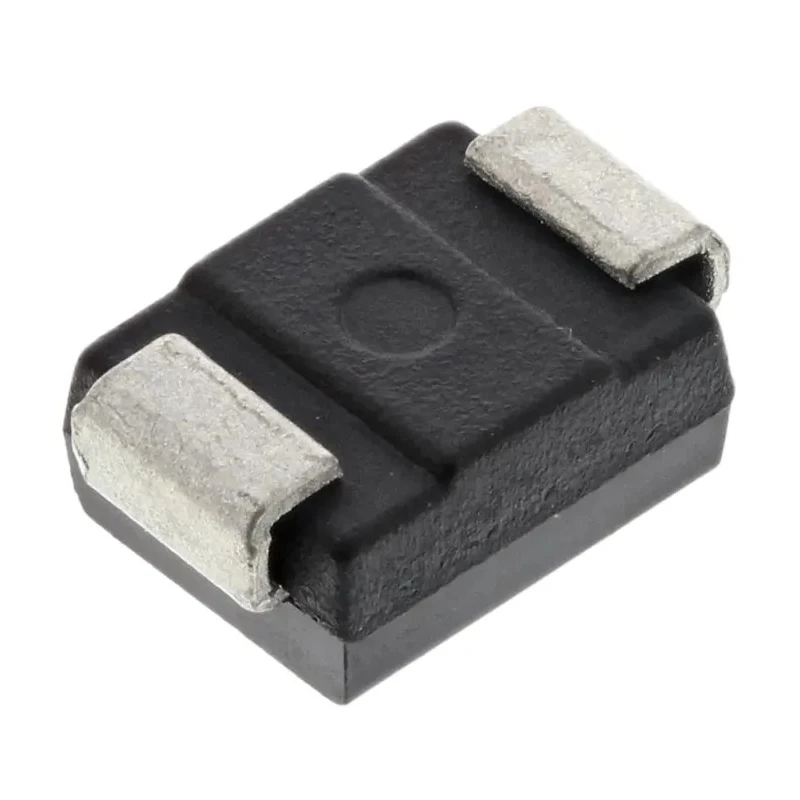

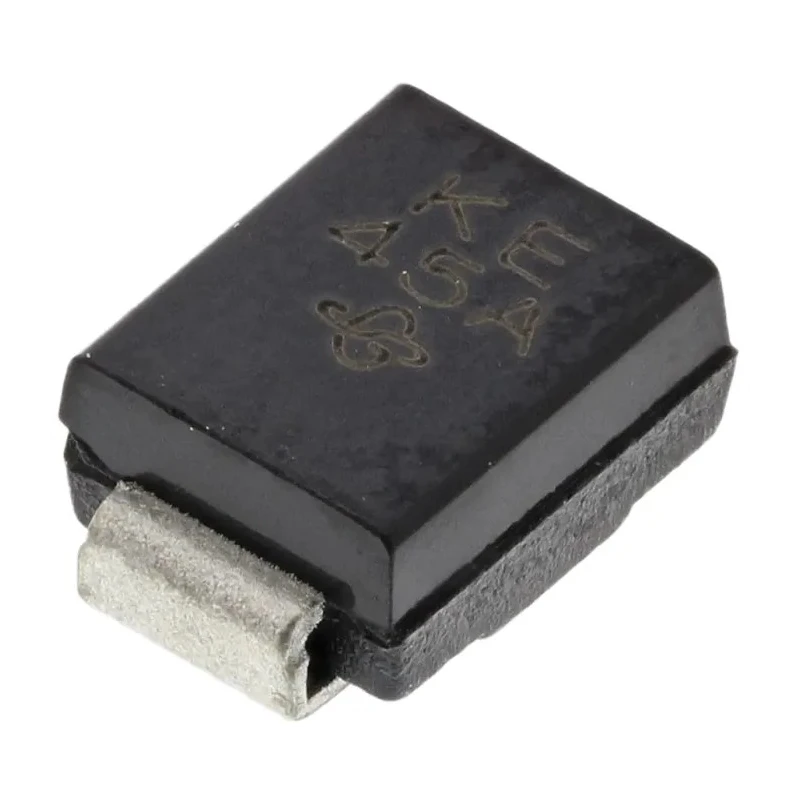

Vishay 1-Element Bi-Directional TVS Diode Surface Mount DO-214 Package 600 W SMBJ5.0CA-E3/52

Vishay SMBJ5.0CA-E3/52 is a 1-element bi-directional transient voltage suppressor diode designed for efficient surge protection in electronic circuits. This device is housed in a low-profile surface-mount DO-214AA (SMBJ) package, suitable for automated assembly and compact PCB layouts.

Operating at a peak pulse power dissipation of 600 W, the TVS diode clamps voltage transients at 9.2 V, thereby preventing damage to sensitive semiconductor components. Its bi-directional configuration offers protection against both positive and negative voltage spikes, making it ideal for AC and DC applications.

The diode is characterized by a minimum breakdown voltage of 6.4 V and maximum reverse stand-off voltage of 5 V, specifically engineered for 5 V system-level transient suppression. It features a peak pulse current rating of 65.2 A and a test current of 10 mA, ensuring robust performance under surge conditions.

This transistor voltage suppressor supports an extended temperature range from -55°C to 150°C, ensuring reliable operation in harsh environments including automotive and industrial settings, confirmed by its AEC-Q101 qualification. The device offers excellent clamping capability and very fast response time, crucial for protecting sensitive electronic devices against electrostatic discharge and transient overvoltage events.

The compact dimensions of 4.57 mm length, 3.94 mm width, and 2.24 mm height support space-saving designs without compromising protection capacity. ESD protection and adherence to automotive standards make this component a versatile choice for robust transient voltage suppression needs in power electronics, computing, telecommunications, and automotive electronics sectors.

This TVS diode is ideal for protecting voltage rails and I/O ports in industrial, automotive, and consumer electronics applications. Its reliable surface mount package provides streamlined manufacturing and automated insertion compatibility.

The TRANSZORB TVS series from Vishay ensures advanced transient voltage suppression with low incremental surge resistance. The diode's surging characteristics protect circuits from high energy transients and electrostatic discharges.

Applications include power supplies, communication lines, and automotive electronic modules requiring bi-directional surge protection.
