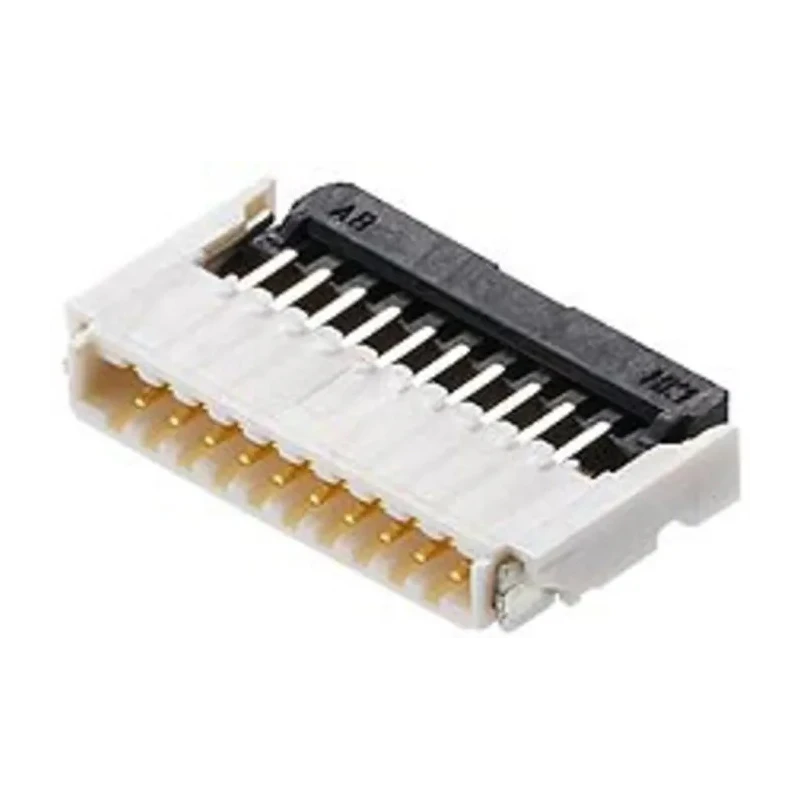

Molex 0.5 mm Pitch 26 Way Right Angle Female Easy-On FFC/FPC Connector Surface Mount Solder Termination 503480-2600

Molex 503480-2600 0.5 mm Pitch 26 Way Right Angle Female Easy-On FFC/FPC Connector is designed for robust and compact interconnections in electronics applications. Its surface mount solder termination and dual contact position enhance reliability in demanding industrial environments.

This right-angle FPC connector is suitable for use in electronic assembly, instrumentation, manufacturing automation, and other electrical connector needs requiring precise pitch and durability. The connector features 26 phosphor bronze contacts with gold over nickel plating to provide excellent conductivity and resistance to corrosion.

The housing material, liquid crystal polymer, ensures mechanical strength and high temperature tolerance from -40°C up to 85°C, making it ideal for varied environmental conditions. Moreover, it includes a locking mechanism to secure the connection firmly during device operation, reducing the risk of accidental disconnects or vibration faults.

The connector supports a current rating of 500mA and withstands a voltage of 50Vrms, providing safe and reliable performance in power and signal transmission. Its compact 0.5 mm pitch spacing allows for high-density PCB layouts while maintaining ease of installation with an easy-on FFC/FPC interface.

Features 26 contacts designed for easy on-off connection. Dual contact style ensures secure electrical performance. Right-angle orientation enables optimal PCB design flexibility. Constructed with phosphor bronze contacts plated in gold over nickel for corrosion resistance.

Housing is made from durable liquid crystal polymer for mechanical stability. Supports maximum current of 500mA and voltage rating of 50Vrms. Operating temperature range from -40°C to 85°C for varied industrial environments.

Includes a locking mechanism to maintain connector secure during operation. Suitable for industrial electronic assemblies, automated manufacturing, and instrumentation. Manufactured in Korea, Republic Of ensuring high production standards.

This Molex connector is widely used in electronic components assemblies including automotive electronics, consumer devices, industrial controls, and medical equipment, providing reliable and compact connection solutions. It ensures efficient signal transmission and durability in critical industry sectors, ensuring long-term operational reliability.
