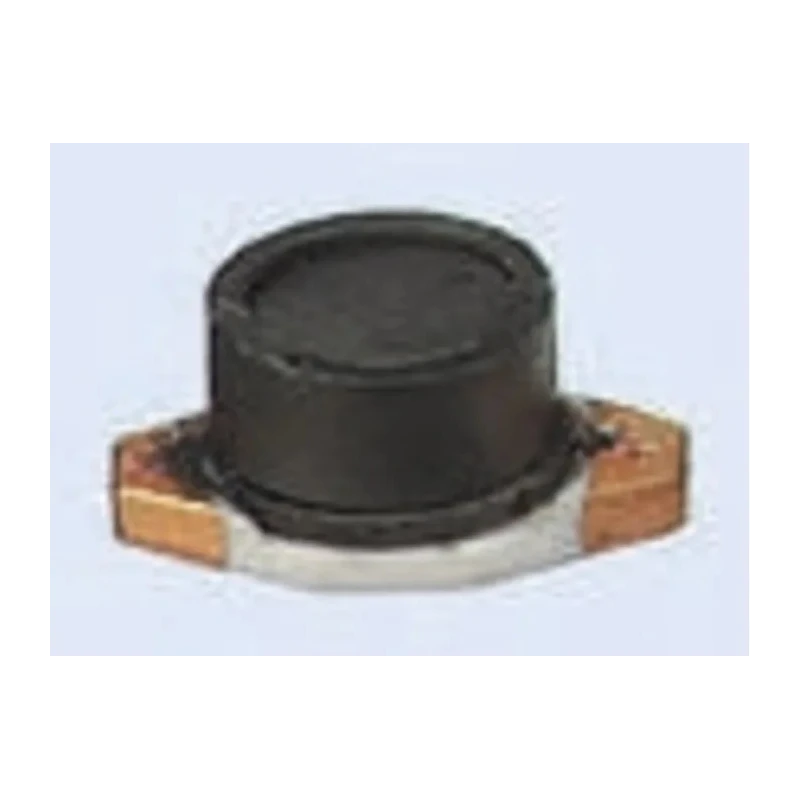

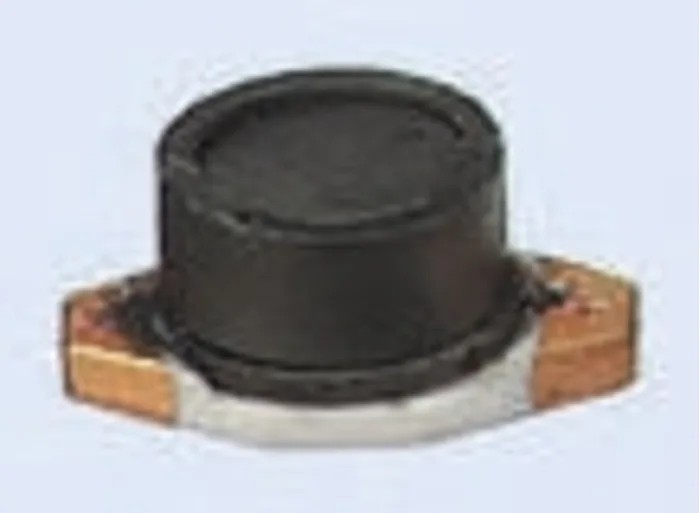

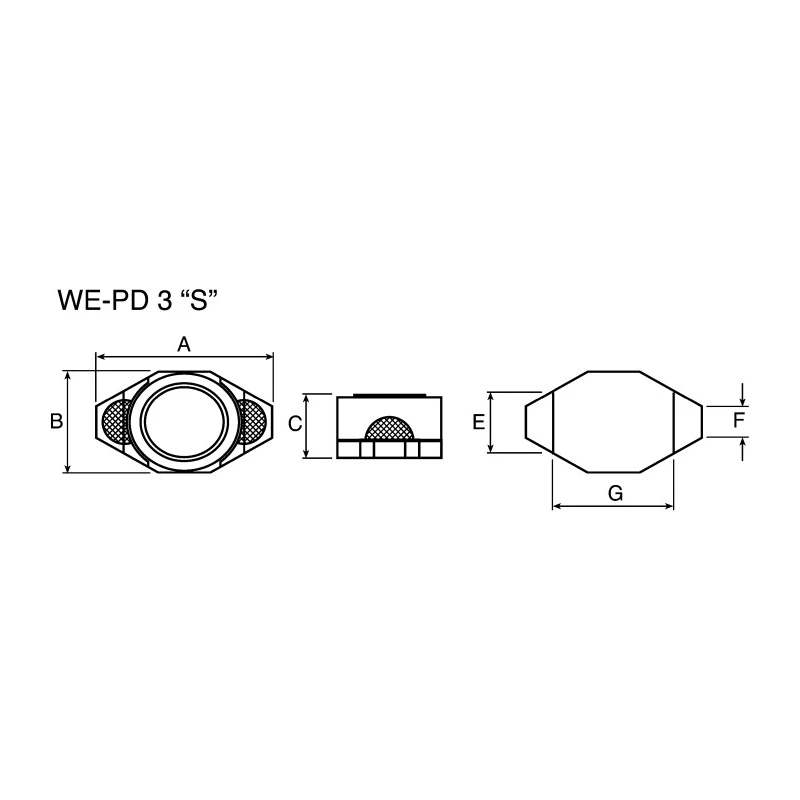

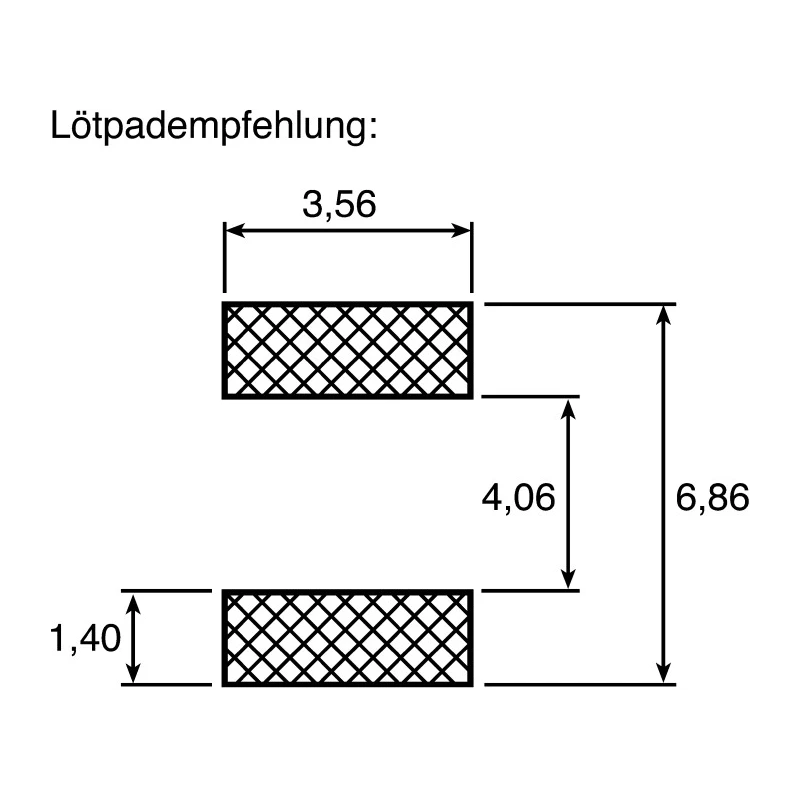

Wurth Elektronik WE-PD3 Shielded Wirewound Surface Mount Inductor 22μH ±20% 700mA IDC 125°C 74451122
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 4.45mm |
| Brand | Wurth Elektronik |
| Height | 2.92mm |
| Length | 6.6mm |
| Model | 74451122 |
| Depth | 4.45mm |
| Packaging | Tape & Reel |
| Series | WE-PD3 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B |
| Maximum DC Current | 700mA |
| Maximum DC Resistance | 110mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 25MHz |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- This inductor features magnetic shielding to reduce interference.
- It supports a operating temperature range from -40°C to 125°C.
- Its inductance tolerance is ±20%, ensuring consistent performance.
- Packaged in tape and reel format for automated assembly.
- Complies with automotive standard AEC-Q200 for reliability.
- Constructed with a ferrite core to provide high inductance up to 25 MHz self-resonant frequency.
- Its small dimensions (6.6mm length, 4.45mm diameter) enable compact PCB design.
- Termination style is surface mount suitable for SMT processes.
Product Description
Wurth Elektronik 74451122 WE-PD3 series shielded wirewound surface mount inductor with ferrite core delivers an inductance of 22 μH with a tolerance of ±20%, suitable for applications requiring up to 700 mA DC current. This component is manufactured to support a maximum operating temperature of 125°C and a minimum of -40°C, ensuring reliable operation across a broad thermal range.
Its compact form factor, with dimensions including a length of 6.6mm, diameter and depth of 4.45mm, and height of 2.92mm, makes it ideal for space-constrained electronic designs. The inductor is magnetically shielded to minimize EMI, enhancing signal integrity in densely packed circuits, and designed for tape and reel packaging optimizing automated surface mount assembly.
Compliant with automotive standard AEC-Q200 and environmental directives such as RoHS and REACH, this component ensures high standards of quality and sustainability. The ferrite core construction allows for an operating frequency range up to 10 MHz and self-resonant frequency up to 25 MHz, making it suitable for suppression choke applications and low profile power filtering.
Magnetically shielded wirewound surface mount inductor. Inductance of 22 μH with ±20% tolerance. Maximum DC current rating of 700 mA. Temperature rating from -40°C to 125°C. Compact dimensions convenient for SMT PCBs. Complies with AEC-Q200 automotive standard.
RoHS, REACH, and JEDEC JS709B compliant. Tape and reel packaging for efficient manufacturing.
This Wurth Elektronik WE-PD3 series inductor is widely used in industrial, automotive, telecommunications, and consumer electronics for noise suppression, filtering, and power regulation in PCB designs. Its shielded design and robust thermal rating make it a reliable choice for high-performance circuits requiring stable inductance and low interference.
Explore our extensive catalog for more Surface Mount Inductors and related electronic components at EnvMart, your trusted partner for high-quality industrial and electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 700mA.
It has a length of 6.6mm, a diameter of 4.45mm, and a height of 2.92mm.
The inductor operates within a temperature range of -40°C to 125°C.
Yes, it complies with the automotive standard AEC-Q200, as well as RoHS and REACH environmental directives.
It is packaged in tape and reel format, which is suitable for automated assembly processes.
This inductor is constructed with a ferrite core, which enhances its inductance properties.
The maximum self-resonant frequency of this model is 25MHz.
The termination style of this inductor is surface mount, making it suitable for SMT processes.
The maximum DC resistance is 110mΩ.
It is suitable for applications in industrial, automotive, telecommunications, and consumer electronics for noise suppression and power regulation.
AEC-Q200 compliance indicates that this inductor meets stringent automotive reliability standards, ensuring its suitability for automotive applications.
