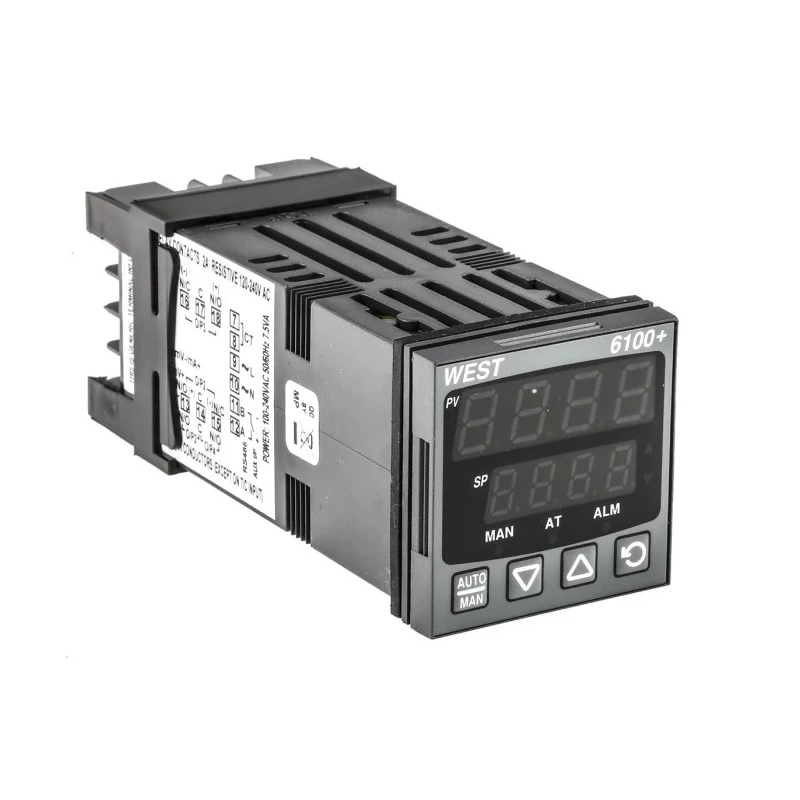

West Instruments P6100 Panel Mount PID Temperature Controller 1 Input 2 Output Relay 240V ac On-Off P6100-2-1-1-0-0-0-2

West Instruments P6100-2-1-1-0-0-0-2 is an advanced panel mount PID temperature controller designed for precise temperature regulation in industrial automation processes. It accepts a thermocouple input and provides two relay outputs, making it suitable for controlling heating and cooling devices with On-Off control logic at 240V ac supply voltage. The controller’s compact 48mm by 48mm (1/16 DIN) form factor allows easy integration into existing control panels.

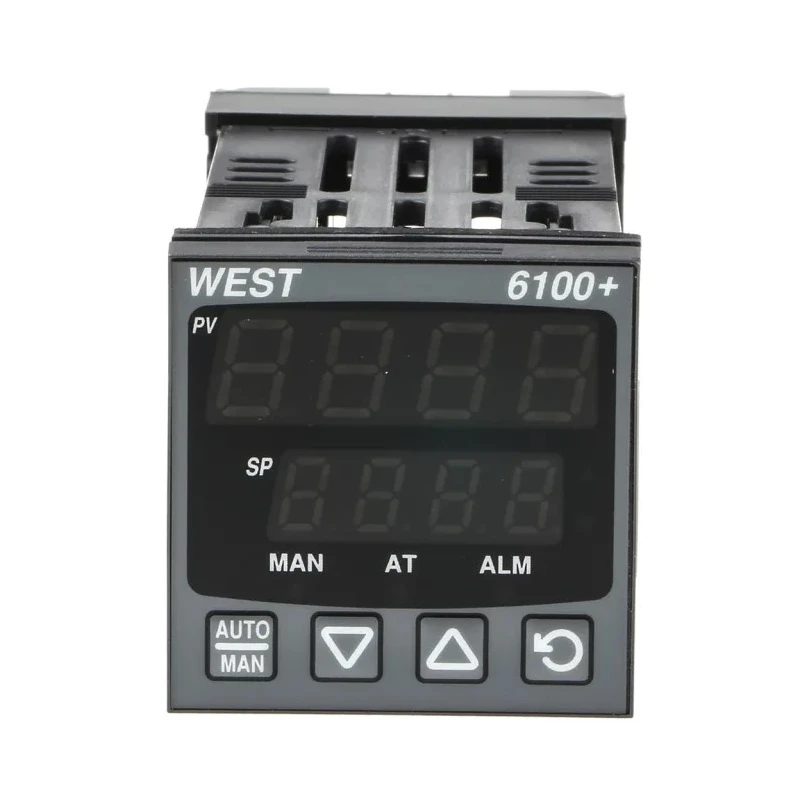

Featuring a dual 4 digit LED display, it provides clear upper and lower temperature readings indicated by red and green colors respectively. The instrument supports RS485 digital communication enabling connection with supervisory control systems for monitoring and configuration purposes. Its construction meets high standards such as CE, UL, and ULC certifications and offers IP20 and IP66 rated protection, suitable for demanding industrial and laboratory environments.

The P6100 series model includes advanced user-friendly features such as auto-hardware recognition, jumper-less input configuration, and customizable operator menus for enhanced ease of use. The controller supports remote setpoint inputs, plug-in output modules, and 24VDC transmitter power supply making it versatile and adaptable to varied control scenarios.

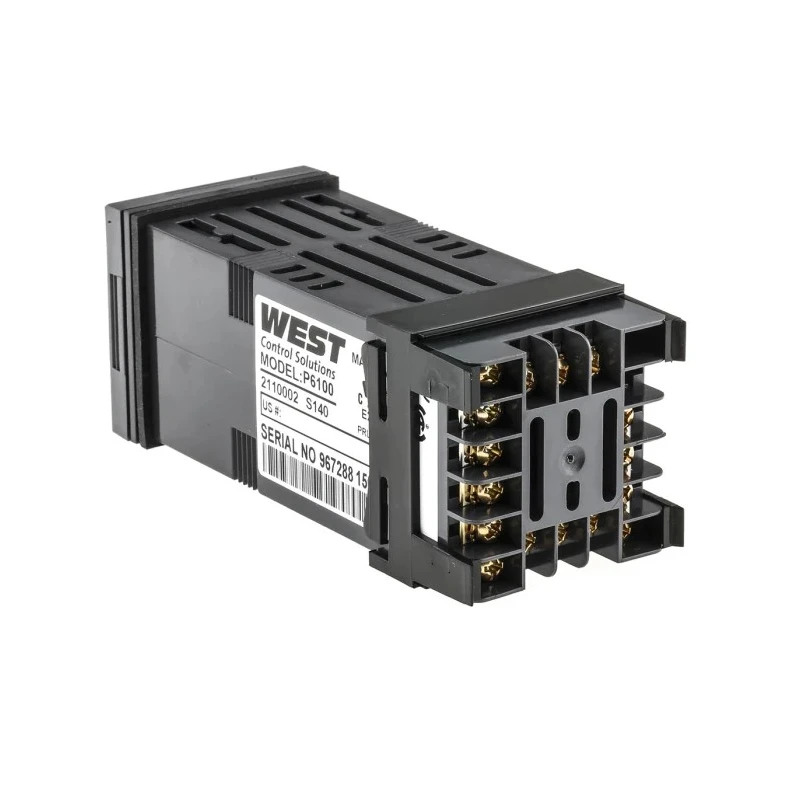

Additional functionality includes adjustable hysteresis, process and loop alarms, and a faster secure communication interface to ensure reliable operation in industrial automation, HVAC systems, water treatment plants, manufacturing processes, and laboratory settings. The sturdy screw terminal connection ensures secure wiring and installation, while the panel mount design with a panel depth of 110mm fits conventional control enclosures.

Manufactured in the United Kingdom, this temperature controller provides a robust and reliable solution that reduces operator errors and inventory requirements. It is backward compatible with previous panel cut-outs and housing designs, enabling easy retrofit and upgrades in existing installations.

Equipped with a dual 4 digit LED display for clear readings. Supports thermocouple input with screw terminal connections. Features RS485 digital communication capability for integration. Rated for maximum operating temperatures up to 55°C.

Panel mount design with compact 48mm x 48mm size (1/16 DIN). Includes user-friendly HMI and configurable operator menu. Complies with CE, UL, and ULC standards for safety and quality. IP20 and IP66 rated for protection in varied environments.

Includes features like adjustable hysteresis and process alarms. Manufactured in the United Kingdom ensuring high-quality production. Explore more PID Temperature Controllers and industrial automation solutions at EnvMart for reliable and efficient temperature control applications.
