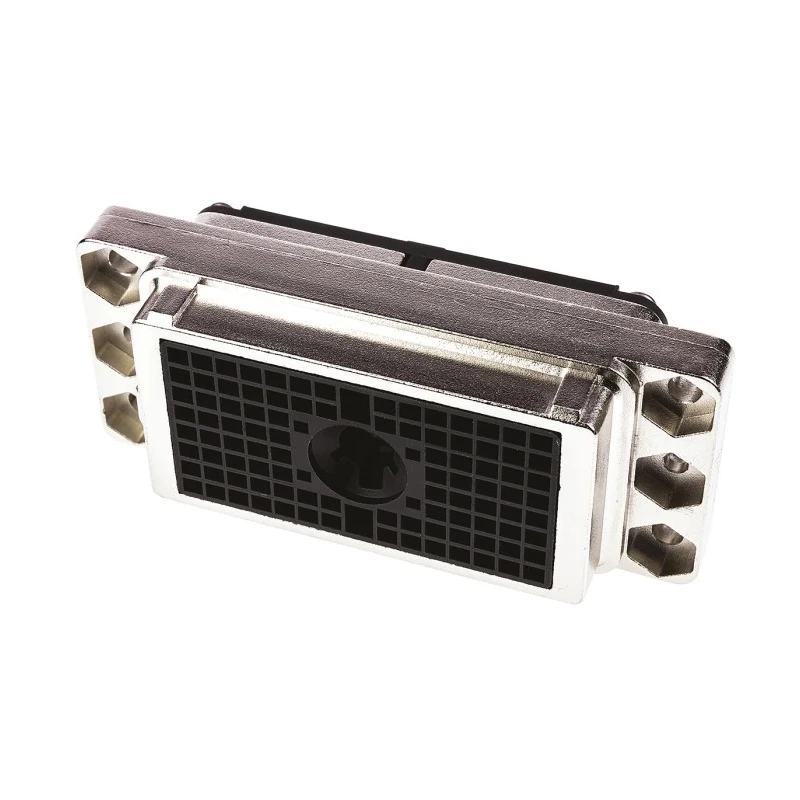

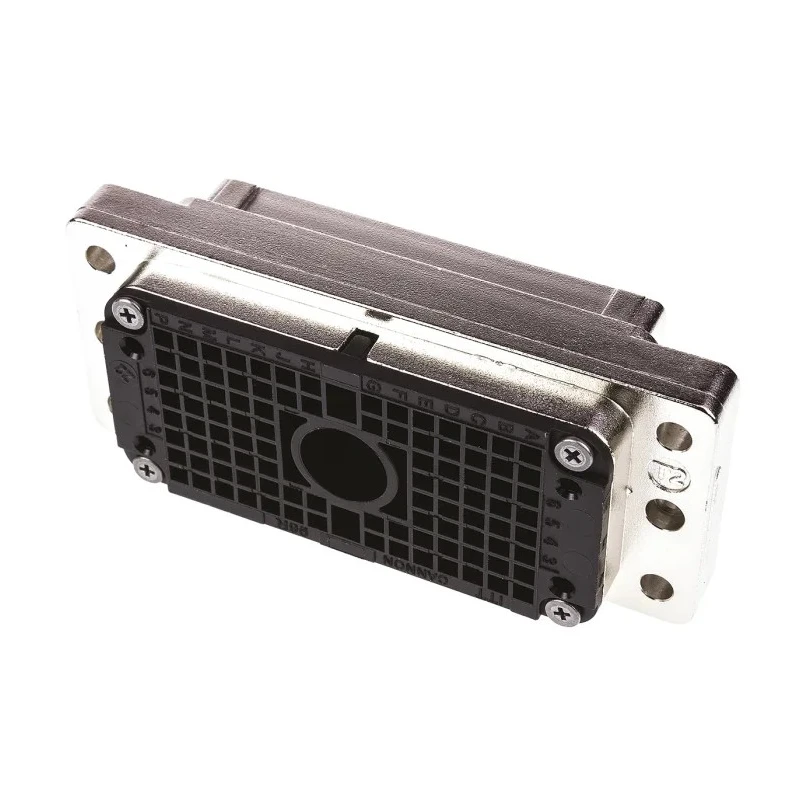

ITT Cannon DLM 2.54 mm Pitch ZIF Socket Body, Straight Female, 96 Way 127050-0216
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.2kV ac |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel |
| Housing Material | Aluminium Alloy |
| Contact Material | Beryllium Copper Alloy |
| Series | DLM |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 96 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Female |
| Connector Gender | Female |
| Backplane Connector Type | ZIF |
| ITT Cannon DL 96 Way Straight Panel D-Sub Connector FemaleBrand | ITT Cannon |
Key Features
- Features 96 contacts with gold-plated beryllium copper alloy for superior conductivity.
- Rated for 5A current and 1.2kV AC voltage for demanding electronic applications.
- Panel mount type with crimp termination suitable for secure connections.
- Operating temperature range from -55°C to 105°C ensures performance in harsh environments.
- Cam actuated zero insertion force coupling for easy mating and dismounting.
- Housing made from robust aluminum alloy providing durability and EMI shielding.
- Used extensively in instrumentation equipment, medical devices, broadcast, and avionics industries.
Product Description
ITT Cannon 127050-0216 DLM 2.54 mm Pitch ZIF Socket Body is a straight female backplane connector featuring 96 gold-plated beryllium copper alloy contacts. It offers a robust aluminum alloy housing and cam actuated zero insertion force coupling to ensure reliable and uniform EMI/RFI shielding across the connector interface. This model is rated for a maximum current of 5A and voltage of 1.2kV AC.
The connector supports panel mounting with crimp termination and operates effectively within a temperature range of -55°C to 105°C, making it suitable for harsh industrial and electronic environments. It serves critical roles in instrumentation, medical equipment, broadcast systems, and avionics applications, providing secure, stable electrical connections.
Compliance with industry standards such as ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 further ensures its suitability for sensitive electronic environments requiring strict electrostatic discharge control.
Features 96 gold-plated contacts for high reliability. Current rating of 5A and voltage rating of 1.2kV AC. Cam actuated zero insertion force coupling for ease of use. Robust aluminum alloy housing for EMI/RFI shielding.
Panel mount type with crimp termination. Wide operating temperature range of -55°C to 105°C. Application in medical, instrumentation, broadcast, and avionics industries. Meets ANSI/ESD S20.20 and BS EN 61340-5-1 standards.
This ITT Cannon DLM connector is an essential component for demanding electronic and industrial applications requiring precision, durability, and EMI protection. Browsing EnvMart's Electronics Components category offers further related connectors and high-performance backplane solutions.
Explore more products in our Backplane Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 5A and a voltage of 1.2kV AC.
It operates effectively within a temperature range of -55°C to 105°C.
It features 96 contacts made from gold-plated beryllium copper alloy for enhanced conductivity.
This connector supports panel mounting with crimp termination for secure connections.
The housing is made from robust aluminum alloy, while the contacts are made from beryllium copper alloy with gold plating.
It is extensively used in instrumentation equipment, medical devices, broadcast systems, and avionics applications.
It is a straight female backplane connector with a 2.54 mm pitch and ZIF (Zero Insertion Force) design.
It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic discharge control.
The termination type for this model is crimp, ensuring secure electrical connections.
Yes, the robust aluminum alloy housing provides EMI/RFI shielding across the connector interface.
The orientation of this connector is straight, designed for easy installation and use.
This feature allows for easy mating and dismounting of the connector, enhancing usability.
